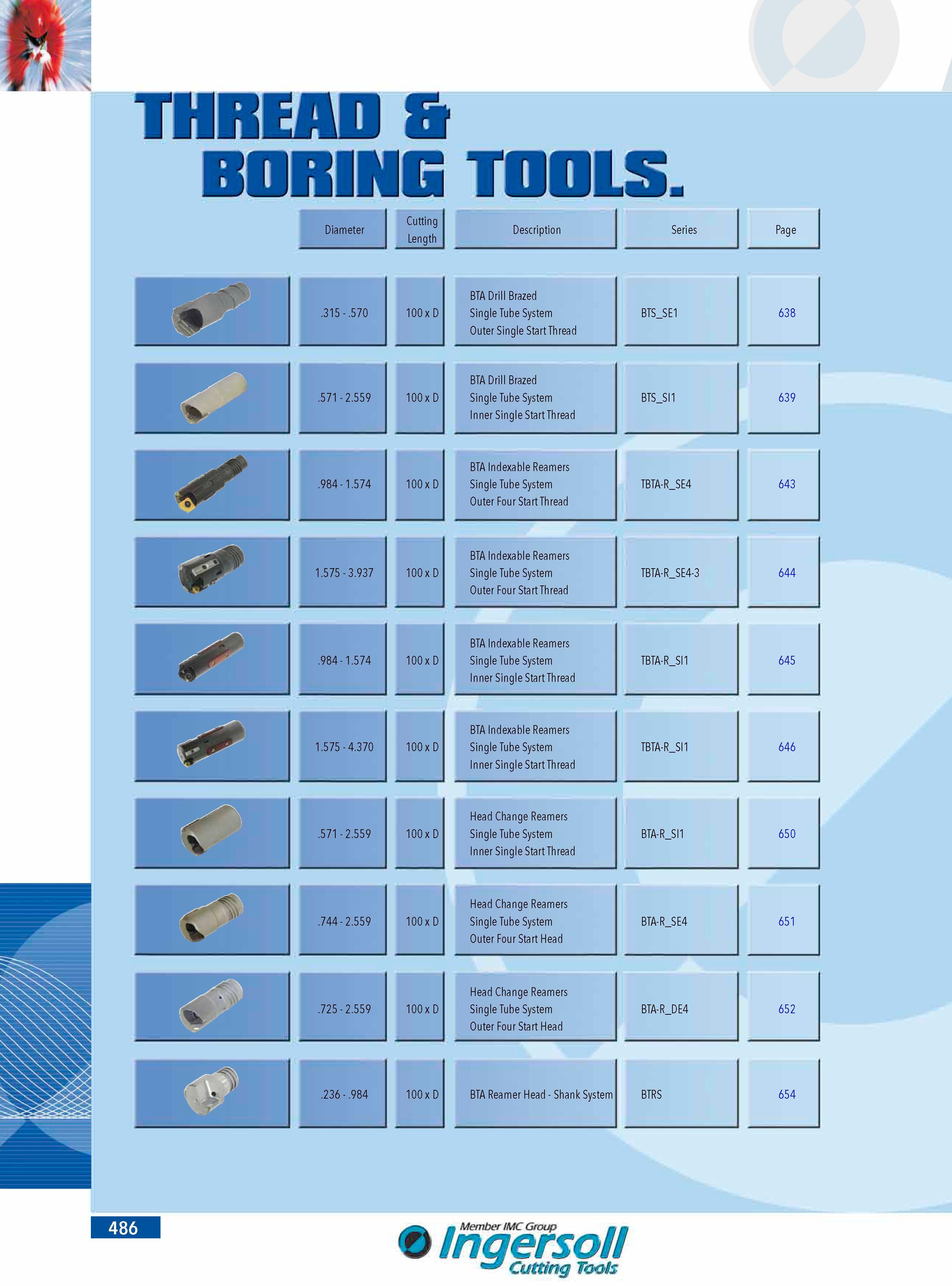

THREAD & BRRIHG TOOLS Diameter Cutting Length Description Series Page .315 - .570 100 x D BTA Drill Brazed Single Tube System Outer Single Start Thread BTSSE1 638 BTA Drill Brazed .571 - 2.559 100 x D Single Tube System BTSSI1 Inner Single Start Thread 639 BTA Indexable Reamers .984 - 1.574 100 x D Single Tube System TBTA-RSE4 Outer Four Start Thread 643 1.575 - 3.937 100 x D BTA Indexable Reamers Single Tube System TBTA-RSE4-3 Outer Four Start Thread 644 BTA Indexable Reamers .984 - 1.574 100 x D Single Tube System TBTA-RSI1 Inner Single Start Thread 645 1.575 - 4.370 100 x D BTA Indexable Reamers Single Tube System Inner Single Start Thread TBTA-RSI1 646 .571 - 2.559 100 x D Head Change Reamers Single Tube System Inner Single Start Thread BTA-R SI1 650 .744 - 2.559 100 x D Head Change Reamers Single Tube System Outer Four Start Head BTA-RSE4 651 Head Change Reamers .725 - 2.559 100 x D Single Tube System BTA-RDE4 652 Outer Four Start Head mm .236 - .984 100 x D BTA Reamer Head - Shank System BTRS 654 486 m Member IMC Croup m m v Ingersoll Cutting Tools
