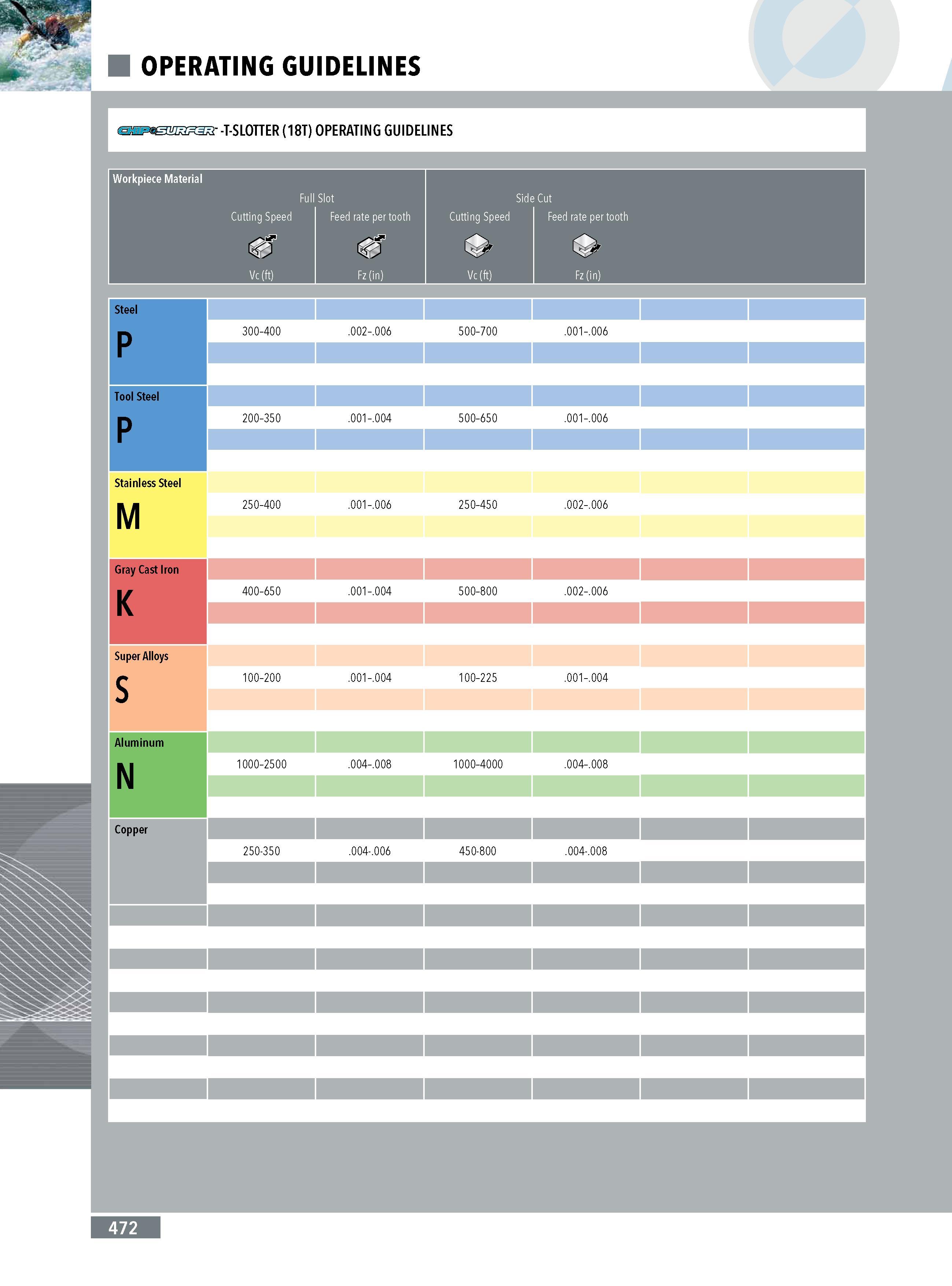

OPERATING GUIDELINES SI3i gEz;as3;a T-SLOTTER (18T) OPERATING GUIDELINES Workpiece Material Full Slot Side Cut Cutting Speed Feed rate per tooth Cutting Speed Feed rate per tooth 3 O' O' . ( Min) Vc (ft) Fz (in) Steel P 300-400 .002-.006 500-700 6 0 .0 01 .0 Tool Steel P 200-350 4 0 .0 01 .0 500-650 .001-.006 Stainless Steel M 250-400 6 0 .0 01 .0 250-450 .002-.006 Gray Cast Iron k 400-650 4 0 .0 01 .0 500-800 .002-.006 Super Alloys S 100-200 .001-.004 100-225 .001-.004 Aluminum IN 1000-2500 .004-.008 1000-4000 .004-.008 Copper 250-350 .004-.006 450-800 .004-.008 472
