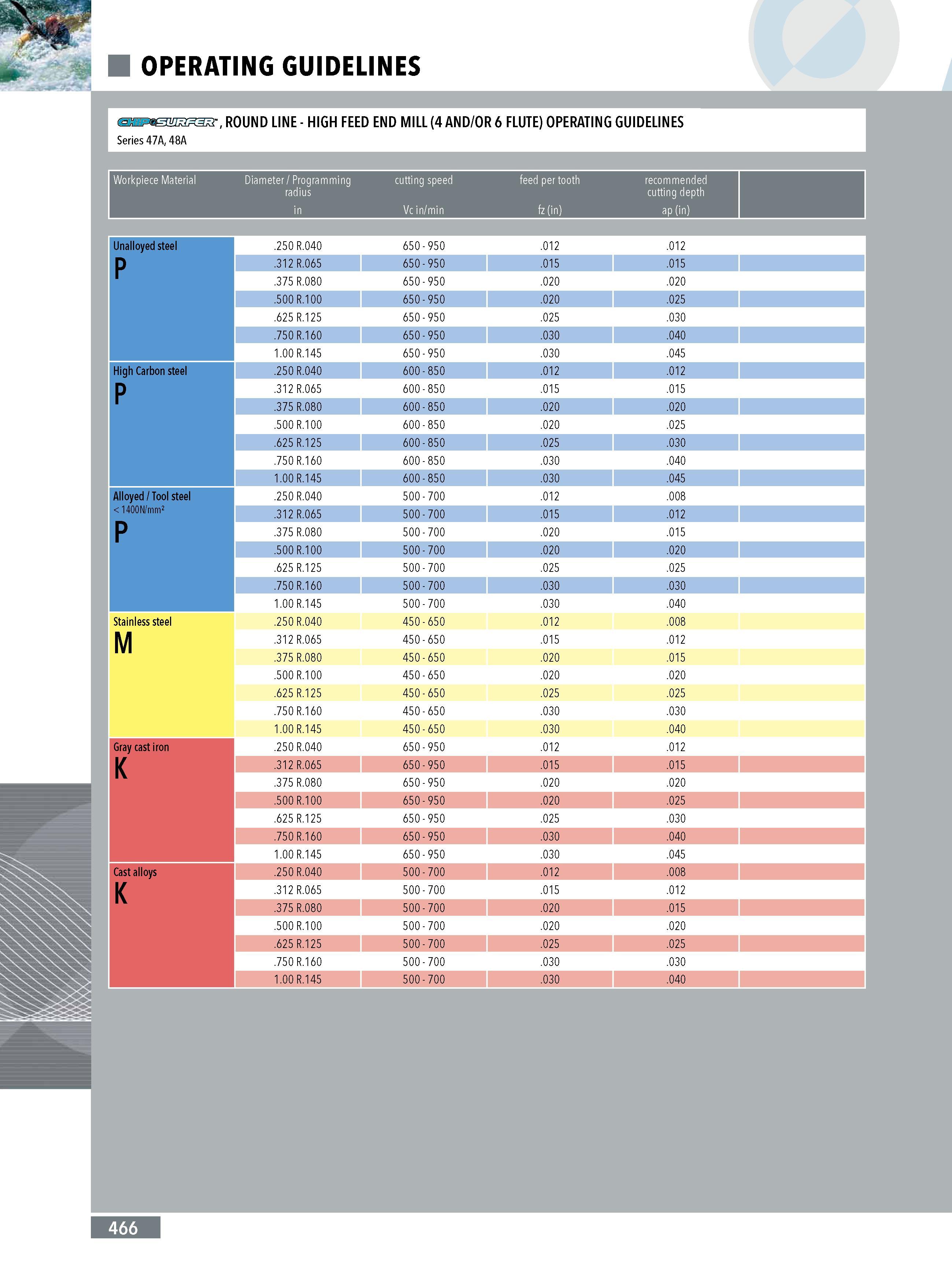

OPERATING GUIDELINES ROUND LINE - HIGH FEED END MILL (4 AND OR 6 FLUTE) OPERATING GUIDELINES Series 47A 48A Workpiece Material Diameter Programming radius cutting speed feed per tooth recommended cutting depth in Vc in min fz (in) ap (in) Unalloyed steel .250 R.040 650 - 950 .012 .012 P .312 R.065 650 - 950 .015 .015 r .375 R.080 650 - 950 .020 .020 .500 R.100 650 - 950 .020 .025 .625 R.125 650 - 950 .025 .030 .750 R.160 650 - 950 .030 .040 1.00 R.145 650 - 950 .030 .045 High Carbon steel .250 R.040 600 - 850 .012 .012 P .312 R.065 600 - 850 .015 .015 r .375 R.080 600 - 850 .020 .020 .500 R.100 600 - 850 .020 .025 .625 R.125 600 - 850 .025 .030 .750 R.160 600 - 850 .030 .040 1.00 R.145 600 - 850 .030 .045 Alloyed Tool steel .250 R.040 500 - 700 .012 .008 1400N mm2 .312 R.065 500 - 700 .015 .012 P .375 R.080 500 - 700 .020 .015 .500 R.100 500 - 700 .020 .020 .625 R.125 500 - 700 .025 .025 .750 R.160 500 - 700 .030 .030 1.00 R.145 500 - 700 .030 .040 Stainless steel .250 R.040 450 - 650 .012 .008 M .312 R.065 450 - 650 .015 .012 .375 R.080 450 - 650 .020 .015 .500 R.100 450 - 650 .020 .020 .625 R.125 450 - 650 .025 .025 .750 R.160 450 - 650 .030 .030 1.00 R.145 450 - 650 .030 .040 Gray cast iron .250 R.040 650 - 950 .012 .012 K .312 R.065 650 - 950 .015 .015 l .375 R.080 650 - 950 .020 .020 .500 R.100 650 - 950 .020 .025 .625 R.125 650 - 950 .025 .030 .750 R.160 650 - 950 .030 .040 1.00 R.145 650 - 950 .030 .045 Cast alloys .250 R.040 500 - 700 .012 .008 K .312 R.065 500 - 700 .015 .012 .375 R.080 500 - 700 0 2 .0 .015 .500 R.100 500 - 700 .020 .020 .625 R.125 500 - 700 .025 .025 .750 R.160 500 - 700 .030 .030 1.00 R.145 500 - 700 .030 .040 466
