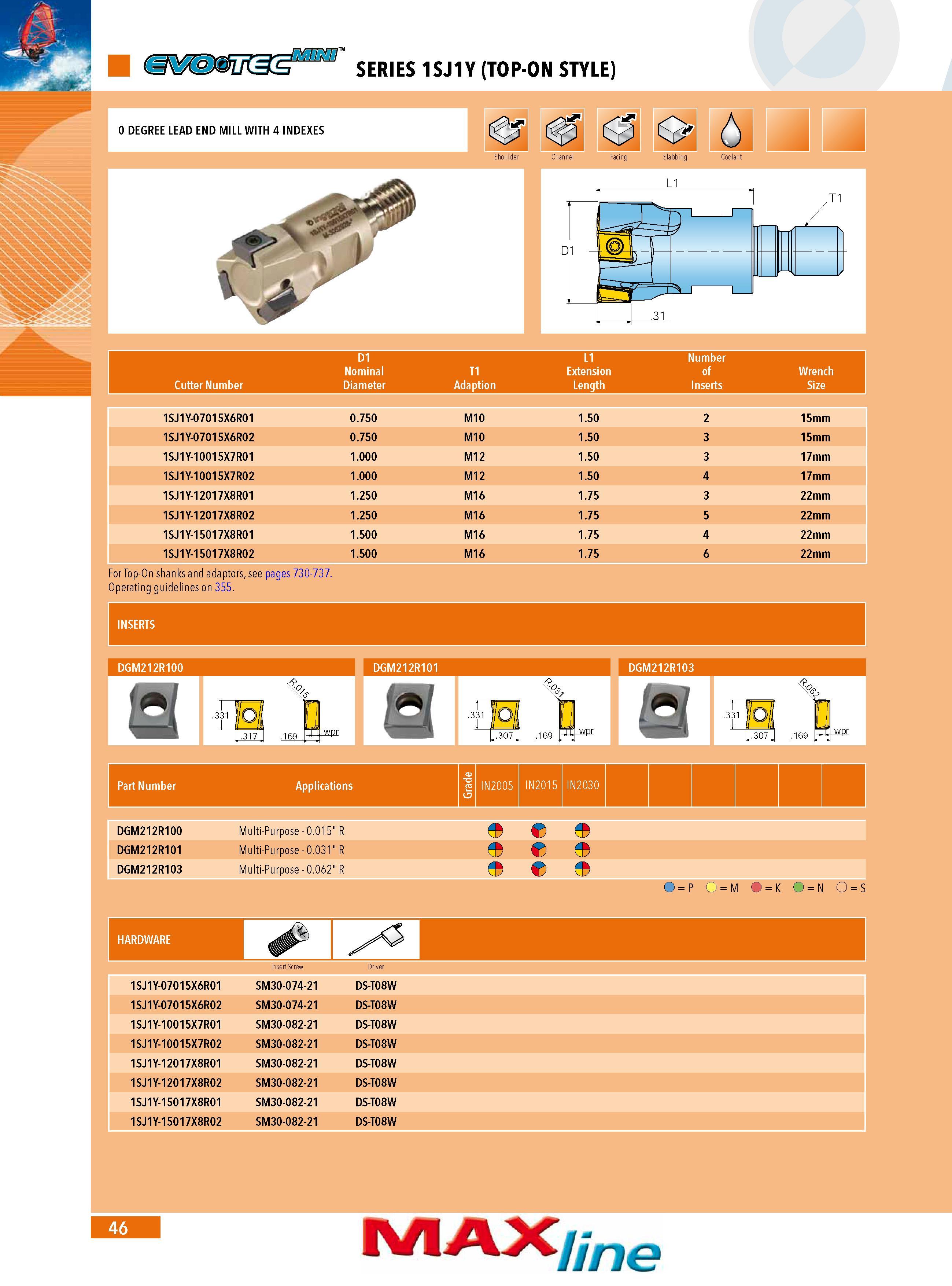

SERIES 1SJ1Y (TOP-ON STYLE) 0 DEGREE LEAD END MILL WITH 4 INDEXES D1 Shoulder Channel Facing Slabbing Coolant L1 .31 2lt T1 D1 L1 Number Nominal T1 Extension of Wrench Cutter Number Diameter Adaption Length Inserts Size 1SJ1Y-07015X6R01 0.750 M10 1.50 2 15mm 1SJ1Y-07015X6R02 0.750 M10 1.50 3 15mm 1SJ1Y-10015X7R01 1.000 M12 1.50 3 17mm 1SJ1Y-10015X7R02 1.000 M12 1.50 4 17mm 1SJ1Y-12017X8R01 1.250 M16 1.75 3 22mm 1SJ1Y-12017X8R02 1.250 M16 1.75 5 22mm 1SJ1Y-15017X8R01 1.500 M16 1.75 4 22mm 1SJ1Y-15017X8R02 1.500 M16 1.75 6 22mm For Top-On shanks and adaptors see pages 730-737. Operating guidelines on 355. DGM212R100 DGM212R101 DGM212R103 Part Number Applications DGM212R100 Multi-Purpose - 0.015" R c DGM212R101 Multi-Purpose - 0.031" R e DGM212R103 Multi-Purpose - 0.062" R r O P O M O K O N O S 1SJ1Y-07015X6R01 SM30-074-21 DS-T08W 1SJ1Y-07015X6R02 SM30-074-21 DS-T08W 1SJ1Y-10015X7R01 SM30-082-21 DS-T08W 1SJ1Y-10015X7R02 SM30-082-21 DS-T08W 1SJ1Y-12017X8R01 SM30-082-21 DS-T08W 1SJ1Y-12017X8R02 SM30-082-21 DS-T08W 1SJ1Y-15017X8R01 SM30-082-21 DS-T08W 1SJ1Y-15017X8R02 SM30-082-21 DS-T08W Driver 46
