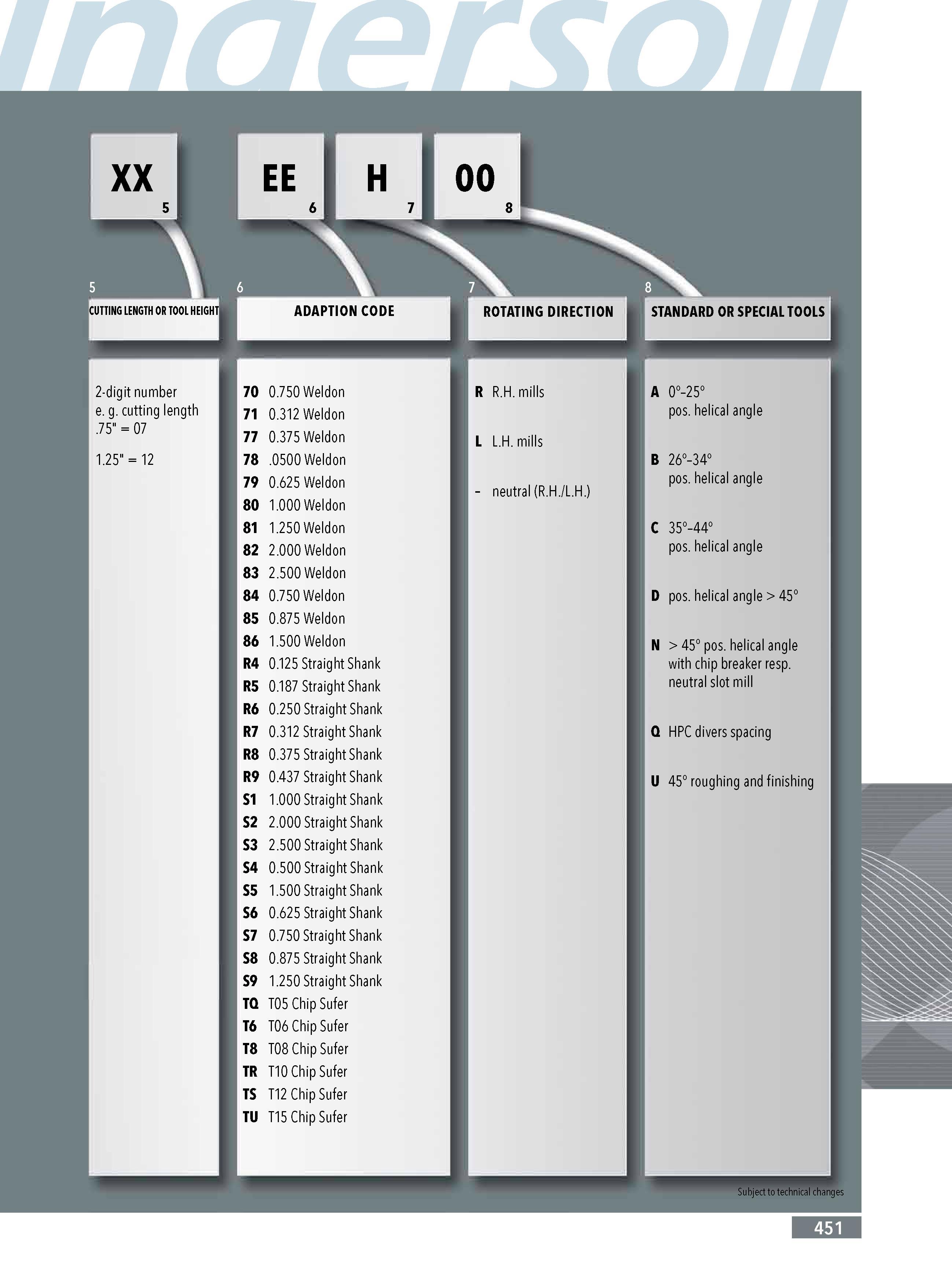

XX 1 1 H 00 5 6 7 8 CUTTING LENGTH OR TOOL HEIGH' 2-digit number e. g. cutting length .75" 07 1.25" 12 ADAPTION CODE ROTATING DIRECTION STANDARD OR SPECIAL TOOLS 70 0.750 Weldon R R.H. mills A 0-25 71 0.312 Weldon pos. helical angle 77 0.375 Weldon L L.H. mills 78 .0500 Weldon B 26-34 79 0.625 Weldon - neutral (R.H. L.H.) pos. helical angle 80 1.000 Weldon 81 1.250 Weldon C 35-44 82 2.000 Weldon pos. helical angle 83 2.500 Weldon 84 0.750 Weldon D pos. helical angle 45 85 0.875 Weldon 86 1.500 Weldon N 45 pos. helical angle R4 0.125 Stra ght Shank with chip breaker resp. R5 0.187 Stra ght Shank neutral slot mill R6 0.250 Stra ght Shank R7 0.312 Stra ght Shank Q HPC divers spacing R8 0.375 Stra ght Shank R9 0.437 Stra ght Shank U 45 roughing and finishing S1 1.000 Stra ght Shank S2 2.000 Stra ght Shank S3 2.500 Stra ght Shank S4 0.500 Stra ght Shank S5 1.500 Stra ght Shank S6 0.625 Stra ght Shank S7 0.750 Stra ght Shank S8 0.875 Stra ght Shank S9 1.250 Stra ght Shank TQ T05 Chip Sufer T6 T06 Chip Sufer T8 T08 Chip Sufer TR T10 Chip Sufer TS T12 Chip Sufer TU T15 Chip Sufer 1 Subject to technical changes 451
