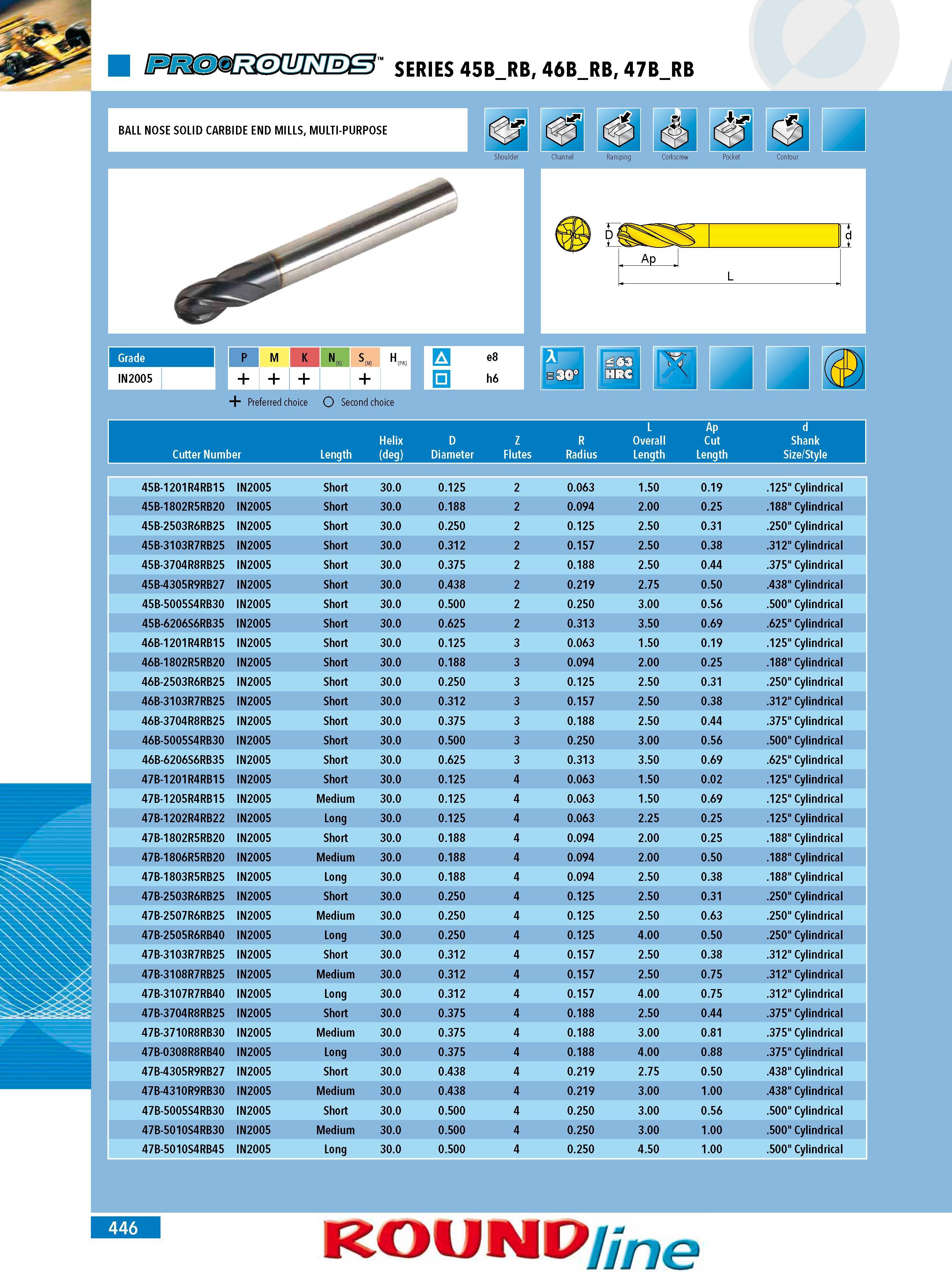

444 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.446

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 446 0444 Lab2u

IN2005 P M K N( S (M) H (P K) e8 0 h6 ft + Preferred choice O Second choice Helix D Z R L Overall Cutter Number Length (deg) Diameter Flutes Radius Length Le 45B-1201R4RB15 IN2005 Short 30.0 0.125 2 0.063 1.50 0.19 .125" Cylindrical 45B-1802R5RB20 IN2005 Short 30.0 0.188 2 0.094 2.00 0.25 .188" Cylindrical 45B-2503R6RB25 IN2005 Short 30.0 0.250 2 0.125 2.50 0.31 .250" Cylindrical 45B-3103R7RB25 IN2005 Short 30.0 0.312 2 0.157 2.50 0.38 .312" Cylindrical 45B-3704R8RB25 IN2005 Short 30.0 0.375 2 0.188 2.50 0.44 .375" Cylindrical 45B-4305R9RB27 IN2005 Short 30.0 0.438 2 0.219 2.75 0.50 .438" Cylindrical 45B-5005S4RB30 IN2005 Short 30.0 0.500 2 0.250 3.00 0.56 .500" Cylindrical 45B-6206S6RB35 IN2005 Short 30.0 0.625 2 0.313 3.50 0.69 .625" Cylindrical 46B-1201R4RB15 IN2005 Short 30.0 0.125 3 0.063 1.50 0.19 .125" Cylindrical 46B-1802R5RB20 IN2005 Short 30.0 0.188 3 0.094 2.00 0.25 .188" Cylindrical 46B-2503R6RB25 IN2005 Short 30.0 0.250 3 0.125 2.50 0.31 .250" Cylindrical 46B-3103R7RB25 IN2005 Short 30.0 0.312 3 0.157 2.50 0.38 .312" Cylindrical 46B-3704R8RB25 IN2005 Short 30.0 0.375 3 0.188 2.50 0.44 .375" Cylindrical 46B-5005S4RB30 IN2005 Short 30.0 0.500 3 0.250 3.00 0.56 .500" Cylindrical 46B-6206S6RB35 IN2005 Short 30.0 0.625 3 0.313 3.50 0.69 .625" Cylindrical 47B-1201R4RB15 IN2005 Short 30.0 0.125 4 0.063 1.50 0.02 .125" Cylindrical 47B-1205R4RB15 IN2005 Medium 30.0 0.125 4 0.063 1.50 0.69 .125" Cylindrical 47B-1202R4RB22 IN2005 Long 30.0 0.125 4 0.063 2.25 0.25 .125" Cylindrical 47B-1802R5RB20 IN2005 Short 30.0 0.188 4 0.094 2.00 0.25 .188" Cylindrical 47B-1806R5RB20 IN2005 Medium 30.0 0.188 4 0.094 2.00 0.50 .188" Cylindrical 47B-1803R5RB25 IN2005 Long 30.0 0.188 4 0.094 2.50 0.38 .188" Cylindrical 47B-2503R6RB25 IN2005 Short 30.0 0.250 4 0.125 2.50 0.31 .250" Cylindrical 47B-2507R6RB25 IN2005 Medium 30.0 0.250 4 0.125 2.50 0.63 .250" Cylindrical 47B-2505R6RB40 IN2005 Long 30.0 0.250 4 0.125 4.00 0.50 .250" Cylindrical 47B-3103R7RB25 IN2005 Short 30.0 0.312 4 0.157 2.50 0.38 .312" Cylindrical 47B-3108R7RB25 IN2005 Medium 30.0 0.312 4 0.157 2.50 0.75 .312" Cylindrical 47B-3107R7RB40 IN2005 Long 30.0 0.312 4 0.157 4.00 0.75 .312" Cylindrical 47B-3704R8RB25 IN2005 Short 30.0 0.375 4 0.188 2.50 0.44 .375" Cylindrical 47B-3710R8RB30 IN2005 Medium 30.0 0.375 4 0.188 3.00 0.81 .375" Cylindrical 47B-0308R8RB40 IN2005 Long 30.0 0.375 4 0.188 4.00 0.88 .375" Cylindrical 47B-4305R9RB27 IN2005 Short 30.0 0.438 4 0.219 2.75 0.50 .438" Cylindrical 47B-4310R9RB30 IN2005 Medium 30.0 0.438 4 0.219 3.00 1.00 .438" Cylindrical 47B-5005S4RB30 IN2005 Short 30.0 0.500 4 0.250 3.00 0.56 .500" Cylindrical 47B-5010S4RB30 IN2005 Medium 30.0 0.500 4 0.250 3.00 1.00 .500" Cylindrical 47B-5010S4RB45 IN2005 Long 30.0 0.500 4 0.250 4.50 1.00 .500" Cylindrical 446 ROUN Vjine
