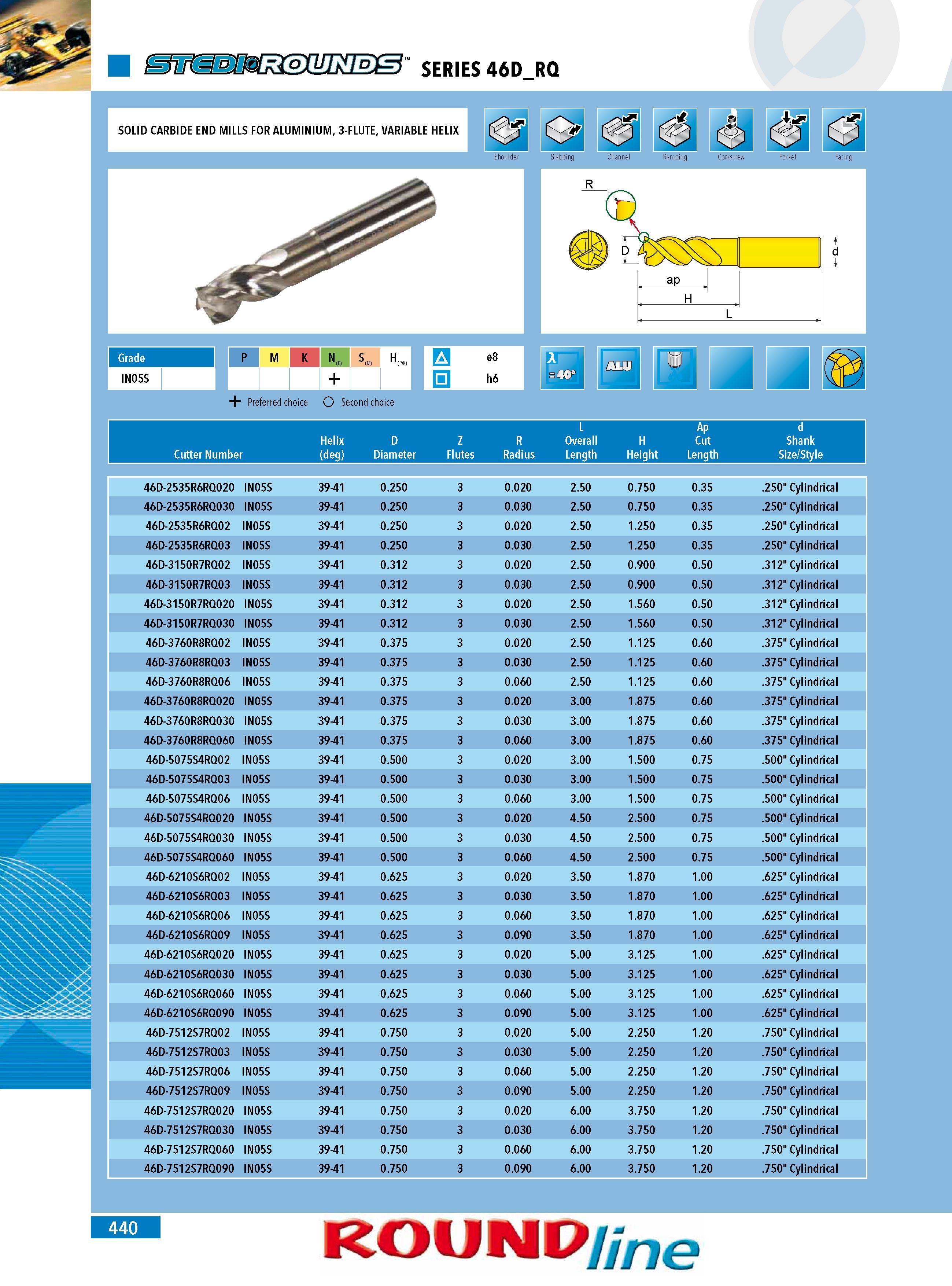

438 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.440

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 440 0438 Lab2u

SERIES 46D RQ SOLID CARBIDE END MILLS FOR ALUMINIUM 3-FLUTE VARIABLE HELIX 12 Shoulder Slabbing Channel Ramping Corkscrew Pocket Facing IN05S P M K N S(M) H (P K) + e8 0 h6 + Preferred choice O Second choice Helix D Z R L Overall H Cutter Number (deg) Diameter Flutes Radius Length Height Le 46D-2535R6RQ020 IN05S 39-41 0.250 3 0.020 2.50 0.750 0.35 5 .2 Cyl ndrical 46D-2535R6RQ030 IN05S 39-41 0.250 3 0.030 2.50 0.750 0.35 .250' Cyl ndrical 46D-2535R6RQ02 IN05S 39-41 0.250 3 0.020 2.50 1.250 0.35 .250' Cyl ndrical 46D-2535R6RQ03 IN05S 39-41 0.250 3 0.030 2.50 1.250 0.35 .250' Cyl ndrical 46D-3150R7RQ02 IN05S 39-41 0.312 3 0.020 2.50 0.900 0.50 .312' Cyl ndrical 46D-3150R7RQ03 IN05S 39-41 0.312 3 0.030 2.50 0.900 0.50 .312' Cyl ndrical 46D-3150R7RQ020 IN05S 39-41 0.312 3 0.020 2.50 1.560 0.50 .312' Cyl ndrical 46D-3150R7RQ030 IN05S 39-41 0.312 3 0.030 2.50 1.560 0.50 .312' Cyl ndrical 46D-3760R8RQ02 IN05S 39-41 0.375 3 0.020 2.50 1.125 0.60 .375' Cyl ndrical 46D-3760R8RQ03 IN05S 39-41 0.375 3 0.030 2.50 1.125 0.60 .375' Cyl ndrical 46D-3760R8RQ06 IN05S 39-41 0.375 3 0.060 2.50 1.125 0.60 .375' Cyl ndrical 46D-3760R8RQ020 IN05S 39-41 0.375 3 0.020 3.00 1.875 0.60 .375' Cyl ndrical 46D-3760R8RQ030 IN05S 39-41 0.375 3 0.030 3.00 1.875 0.60 .375' Cyl ndrical 46D-3760R8RQ060 IN05S 39-41 0.375 3 0.060 3.00 1.875 0.60 .375' Cyl ndrical 46D-5075S4RQ02 IN05S 39-41 0.500 3 0.020 3.00 1.500 0.75 .500' Cyl ndrical 46D-5075S4RQ03 IN05S 39-41 0.500 3 0.030 3.00 1.500 0.75 .500' Cyl ndrical 46D-5075S4RQ06 IN05S 39-41 0.500 3 0.060 3.00 1.500 0.75 .500' Cyl ndrical 46D-5075S4RQ020 IN05S 39-41 0.500 3 0.020 4.50 2.500 0.75 .500' Cyl ndrical 46D-5075S4RQ030 IN05S 39-41 0.500 3 0.030 4.50 2.500 0.75 .500' Cyl ndrical 46D-5075S4RQ060 IN05S 39-41 0.500 3 0.060 4.50 2.500 0.75 .500' Cyl ndrical 46D-6210S6RQ02 IN05S 39-41 0.625 3 0.020 3.50 1.870 1.00 .625' Cyl ndrical 46D-6210S6RQ03 IN05S 39-41 0.625 3 0.030 3.50 1.870 1.00 .625' Cyl ndrical 46D-6210S6RQ06 IN05S 39-41 0.625 3 0.060 3.50 1.870 1.00 .625' Cyl ndrical 46D-6210S6RQ09 IN05S 39-41 0.625 3 0.090 3.50 1.870 1.00 .625' Cyl ndrical 46D-6210S6RQ020 IN05S 39-41 0.625 3 0.020 5.00 3.125 1.00 .625' Cyl ndrical 46D-6210S6RQ030 IN05S 39-41 0.625 3 0.030 5.00 3.125 1.00 .625' Cyl ndrical 46D-6210S6RQ060 IN05S 39-41 0.625 3 0.060 5.00 3.125 1.00 .625' Cyl ndrical 46D-6210S6RQ090 IN05S 39-41 0.625 3 0.090 5.00 3.125 1.00 5' 2 .6 Cyl ndrical 46D-7512S7RQ02 IN05S 39-41 0.750 3 0.020 5.00 2.250 1.20 .750' Cyl ndrical 46D-7512S7RQ03 IN05S 39-41 0.750 3 0.030 5.00 2.250 1.20 .750' Cyl ndrical 46D-7512S7RQ06 IN05S 39-41 0.750 3 0.060 5.00 2.250 1.20 .750' Cyl ndrical 46D-7512S7RQ09 IN05S 39-41 0.750 3 0.090 5.00 2.250 1.20 .750' Cyl ndrical 46D-7512S7RQ020 IN05S 39-41 0.750 3 0.020 6.00 3.750 1.20 .750' Cyl ndrical 46D-7512S7RQ030 IN05S 39-41 0.750 3 0.030 6.00 3.750 1.20 .750' Cyl ndrical 46D-7512S7RQ060 IN05S 39-41 0.750 3 0.060 6.00 3.750 1.20 .750' Cyl ndrical 46D-7512S7RQ090 IN05S 39-41 0.750 3 0.090 6.00 3.750 1.20 .750' Cyl ndrical 440 ROUN Vjine
