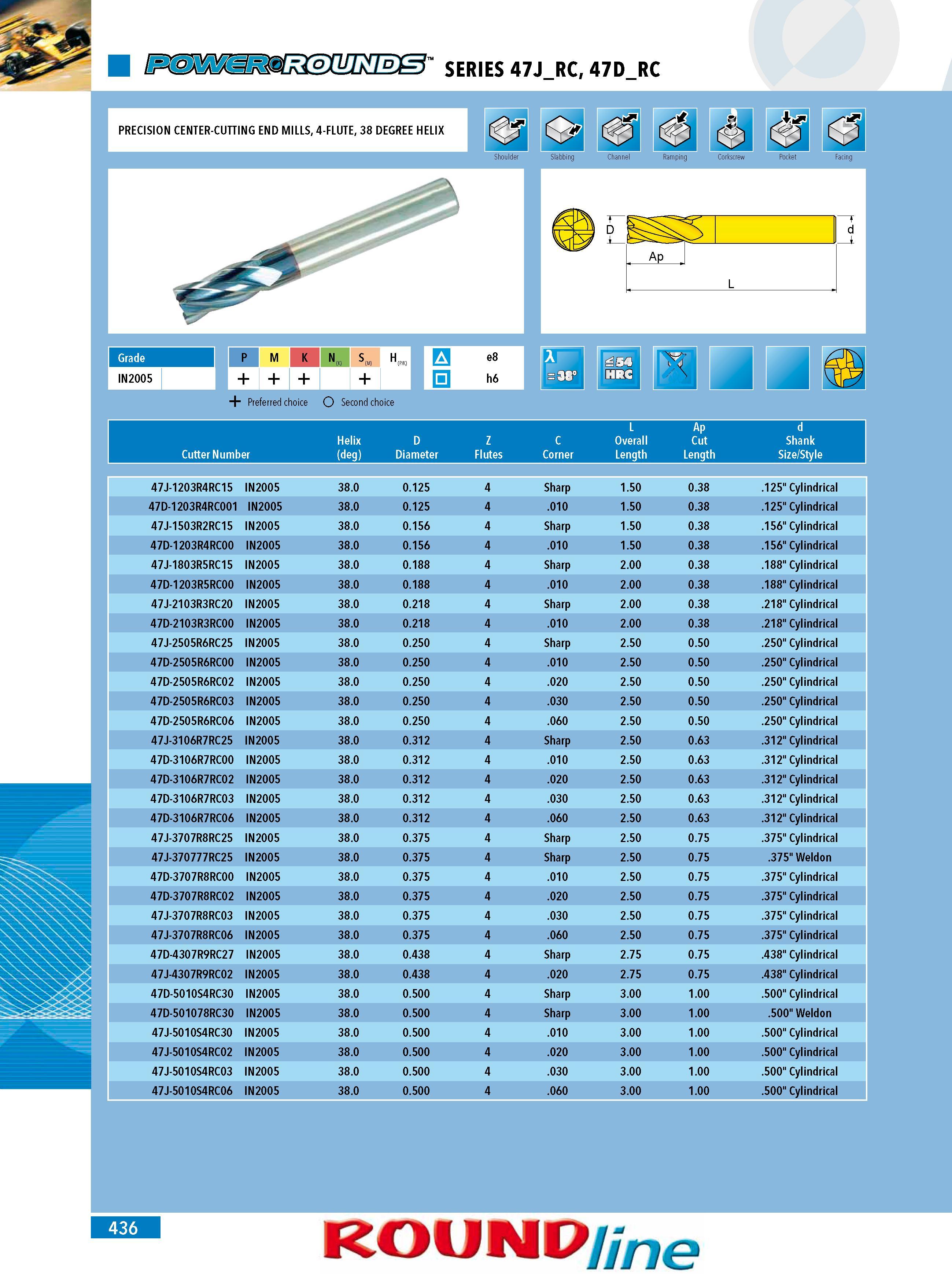

R0JUNDS SERIES 47JRC 47DRC PRECISION CENTER-CUTTING END MILLS 4-FLUTE 38 DEGREE HELIX 12 Shoulder Slabbing Channel Ramping Corkscrew Pocket Facing IN2005 P M K N S (M) H (P K) e8 0 h6 + Preferred choice O Second choice Helix D Z C L Overall Cutter Number (deg) Diameter Flutes Corner Length Le 47J-1203R4RC15 IN2005 38.0 0.125 4 Sharp 1.50 0.38 & 5" 2 ndrical 47D-1203R4RC001 IN2005 38.0 0.125 4 .010 1.50 0.38 .125" Cyl ndrical 47J-1503R2RC15 IN2005 38.0 0.156 4 Sharp 1.50 0.38 & 6" 5 ndrical 47D-1203R4RC00 IN2005 38.0 0.156 4 .010 1.50 0.38 .156" Cyl ndrical 47J-1803R5RC15 IN2005 38.0 0.188 4 Sharp 2.00 0.38 .188" Cyl ndrical 47D-1203R5RC00 IN2005 38.0 0.188 4 .010 2.00 0.38 .188" Cyl ndrical 47J-2103R3RC20 IN2005 38.0 0.218 4 Sharp 2.00 0.38 .218" Cyl ndrical 47D-2103R3RC00 IN2005 38.0 0.218 4 .010 2.00 0.38 .218" Cyl ndrical 47J-2505R6RC25 IN2005 38.0 0.250 4 Sharp 2.50 0.50 & 0" 5 .2 ndrical 47D-2505R6RC00 IN2005 38.0 0.250 4 .010 2.50 0.50 .250" Cyl ndrical 47D-2505R6RC02 IN2005 38.0 0.250 4 .020 2.50 0.50 .250" Cyl ndrical 47D-2505R6RC03 IN2005 38.0 0.250 4 .030 2.50 0.50 & 0" 5 .2 ndrical 47D-2505R6RC06 IN2005 38.0 0.250 4 .060 2.50 0.50 .250" Cyl ndrical 47J-3106R7RC25 IN2005 38.0 0.312 4 Sharp 2.50 0.63 .312" Cyl ndrical 47D-3106R7RC00 IN2005 38.0 0.312 4 .010 2.50 0.63 & 2" .31 ndrical 47D-3106R7RC02 IN2005 38.0 0.312 4 .020 2.50 0.63 .312" Cyl ndrical 47D-3106R7RC03 IN2005 38.0 0.312 4 .030 2.50 0.63 2 2" .31 ndrical 47D-3106R7RC06 IN2005 38.0 0.312 4 .060 2.50 0.63 & 2" .31 ndrical 47J-3707R8RC25 IN2005 38.0 0.375 4 Sharp 2.50 0.75 & 5" 7 .3 ndrical 47J-370777RC25 IN2005 38.0 0.375 4 Sharp 2.50 0.75 .375" Weldon 47D-3707R8RC00 IN2005 38.0 0.375 4 .010 2.50 0.75 .375" Cylindrical 47D-3707R8RC02 IN2005 38.0 0.375 4 .020 2.50 0.75 .375" Cylindrical 47J-3707R8RC03 IN2005 38.0 0.375 4 .030 2.50 0.75 .375" Cylindrical 47J-3707R8RC06 IN2005 38.0 0.375 4 .060 2.50 0.75 .375" Cylindrical 47D-4307R9RC27 IN2005 38.0 0.438 4 Sharp 2.75 0.75 .438" Cylindrical 47J-4307R9RC02 IN2005 38.0 0.438 4 .020 2.75 0.75 .438" Cylindrical 47D-5010S4RC30 IN2005 38.0 0.500 4 Sharp 3.00 1.00 .500" Cylindrical 47D-501078RC30 IN2005 38.0 0.500 4 Sharp 3.00 1.00 .500" Weldon 47J-5010S4RC30 IN2005 38.0 0.500 4 .010 3.00 1.00 .500" Cylindrical 47J-5010S4RC02 IN2005 38.0 0.500 4 .020 3.00 1.00 .500" Cylindrical 47J-5010S4RC03 IN2005 38.0 0.500 4 .030 3.00 1.00 .500" Cylindrical 47J-5010S4RC06 IN2005 38.0 0.500 4 .060 3.00 1.00 .500" Cylindrical L 436 ROUN Vjine
