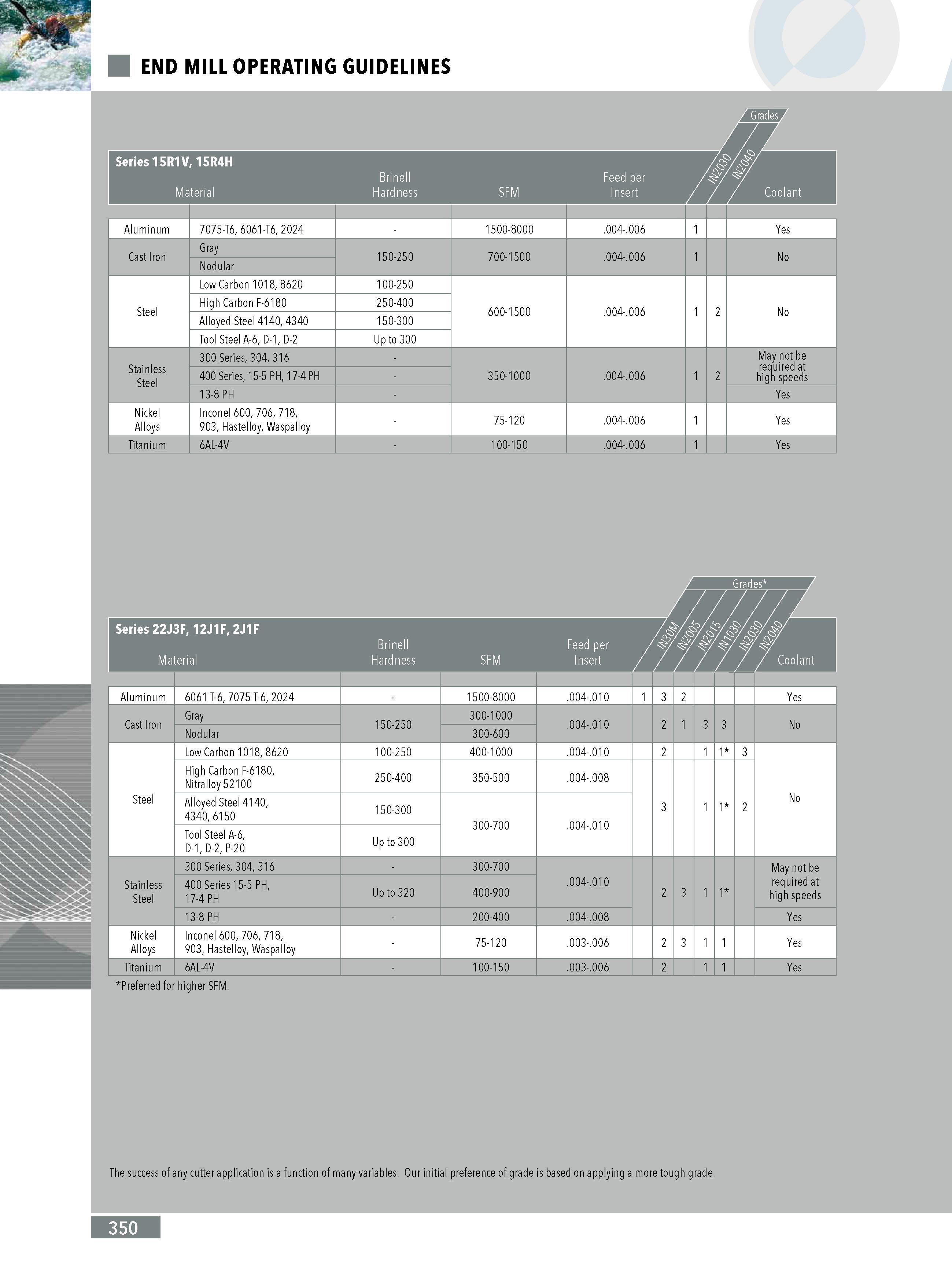

END MILL OPERATING GUIDELINES Series 15R1V 15R4H Material Brinell Hardness SFM Feed per Insert Mf Coolant Aluminum 7075-T6 6061-T6 2024 1500-8000 .004-.006 1 Yes Cast Iron Gray 150-250 700-1500 .004-.006 1 No Nodular Steel Low Carbon 1018 8620 100-250 600-1500 .004-.006 1 2 No High Carbon F-6180 250-400 Alloyed Steel 4140 4340 150-300 Tool Steel A-6 D-1 D-2 Up to 300 Stainless Steel 300 Series 304 316 350-1000 .004-.006 1 2 May not be required at high speeds 400 Series 15-5 PH 17-4 PH 13-8 PH Yes Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 75-120 .004-.006 1 Yes Titanium 6AL-4V 100-150 .004-.006 1 Yes Series 22J3F 12J1F 2J1F Material Brinell Hardness SFM Feed per Insert ff & A jf w Coolant Aluminum 6061 T-6 7075 T-6 2024 1500-8000 .004-.010 1 3 2 Yes Cast Iron Gray 150-250 300-1000 .004-.010 2 1 3 3 No Nodular 300-600 1 Low Carbon 1018 8620 100-250 400-1000 .004-.010 2 1 1 3 High Carbon F-6180 Nitralloy 52100 250-400 350-500 .004-.008 Steel Alloyed Steel 4140 4340 6150 150-300 300-700 .004-.010 3 1 1 2 No Tool Steel A-6 D-1 D-2 P-20 Up to 300 300 Series 304 316 300-700 May not be Stainless Steel 400 Series 15-5 PH 17-4 PH Up to 320 400-900 .004-.010 2 3 1 1 required at high speeds 13-8 PH 200-400 .004-.008 Yes Nickel Alloys Inconel 600 706 718 903 Hastelloy Waspalloy 75-120 .003-.006 2 3 1 1 Yes Titanium 6AL-4V 100-150 .003-.006 2 1 1 Yes Preferred for higher SFM. The success of any cutter application is a function of many variables. Our initial preference of grade is based on applying a more tough grade. 350
