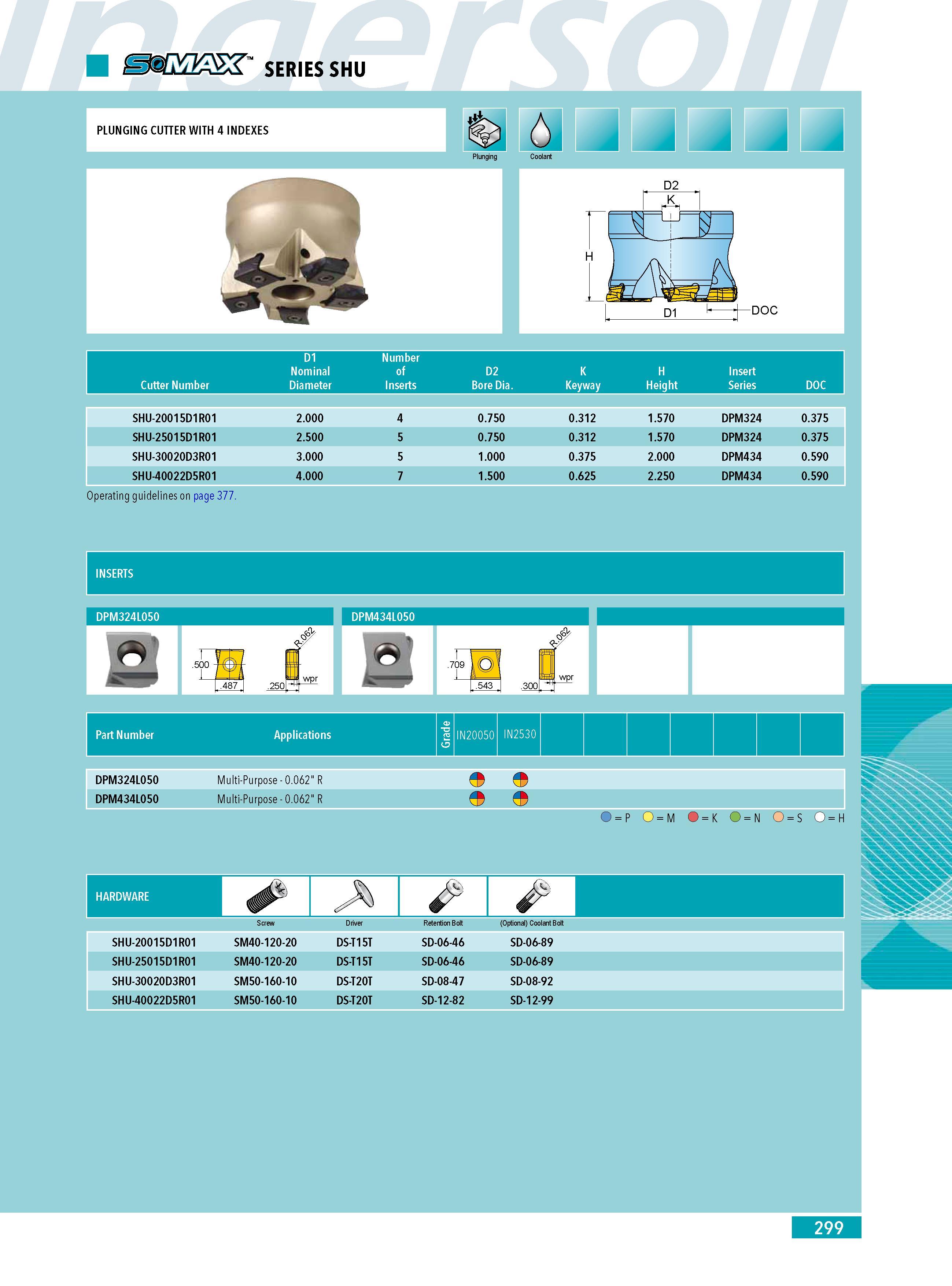

D1 Number Nominal of D2 K H Insert Cutter Number Diameter Inserts Bore Dia. Keyway Height Series DOC SHU-20015D1R01 2.000 4 0.750 0.312 1.570 DPM324 0.375 SHU-25015D1R01 2.500 5 0.750 0.312 1.570 DPM324 0.375 SHU-30020D3R01 3.000 5 1.000 0.375 2.000 DPM434 0.590 SHU-40022D5R01 4.000 7 1.500 0.625 2.250 DPM434 0.590 Operating guidelines on page 377. INSERTS DPM324L050 Multi-Purpose - 0.062 R DPM434L050 Multi-Purpose - 0.062' R O P O M O K O N O S O H (Optional) Coolant Bolt SHU-20015D1R01 SM40-120-20 DS-T15T SD-06-46 SD-06-89 SHU-25015D1R01 SM40-120-20 DS-T15T SD-06-46 SD-06-89 SHU-30020D3R01 SM50-160-10 DS-T20T SD-08-47 SD-08-92 SHU-40022D5R01 SM50-160-10 DS-T20T SD-12-82 SD-12-99 Screw Driver Retention Bolt 299
