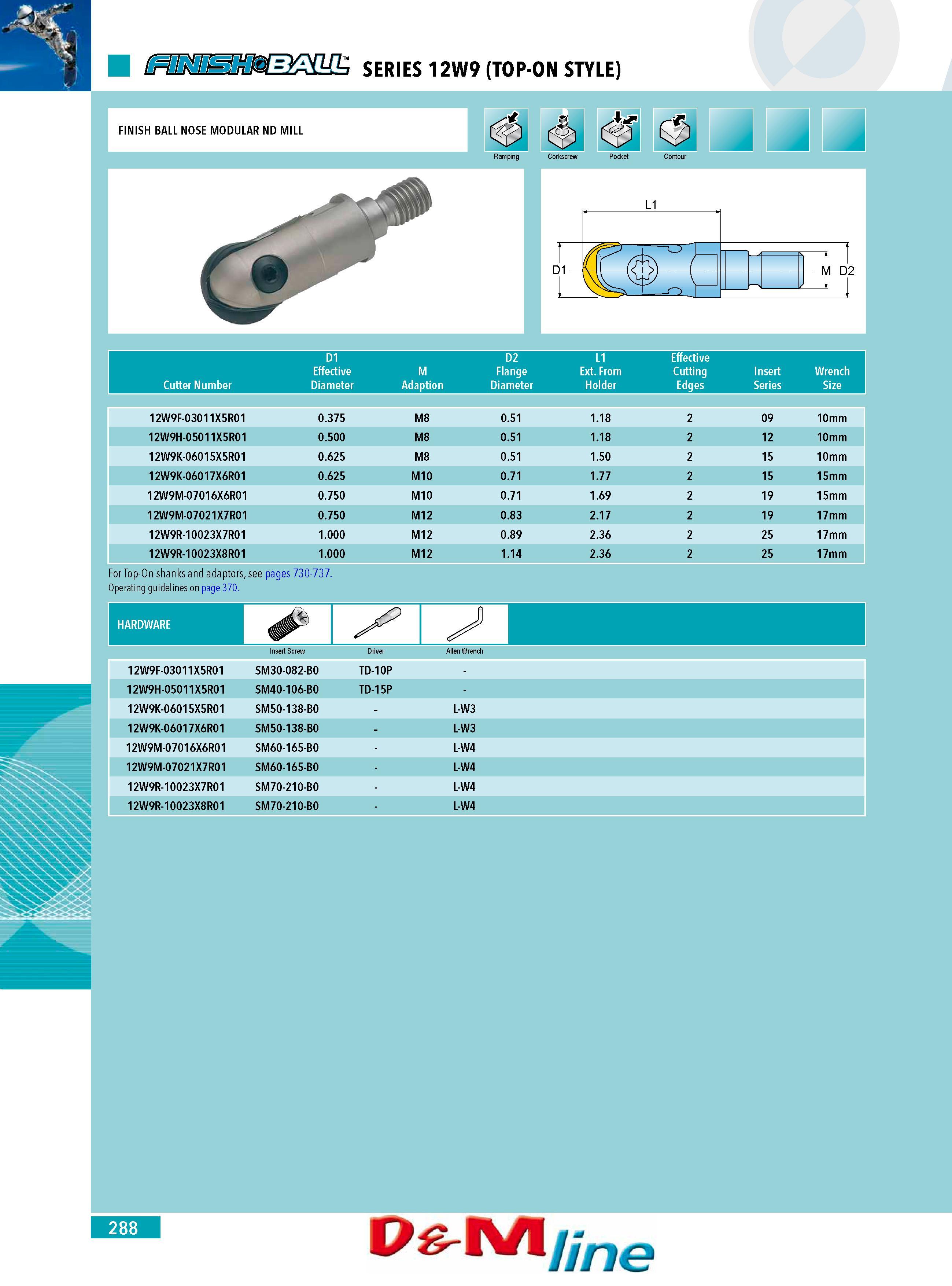

SERIES 12W9 (TOP-ON STYLE) FINISH BALL NOSE MODULAR ND MILL D1 D2 L1 Effective Effective M Flange Ext. From Cutting Insert Wrench Cutter Number Diameter Adaption Diameter Holder Edges Series Size 12W9F-03011X5R01 0.375 M8 0.51 1.18 2 09 10mm 12W9H-05011X5R01 0.500 M8 0.51 1.18 2 12 10mm 12W9K-06015X5R01 0.625 M8 0.51 1.50 2 15 10mm 12W9K-06017X6R01 0.625 M10 0.71 1.77 2 15 15mm 12W9M-07016X6R01 0.750 M10 0.71 1.69 2 19 15mm 12W9M-07021X7R01 0.750 M12 0.83 2.17 2 19 17mm 12W9R-10023X7R01 1.000 M12 0.89 2.36 2 25 17mm 12W9R-10023X8R01 1.000 M12 1.14 2.36 2 25 17mm For Top-On shanks and adaptors see pages 730-737. Operating guidelines on page 370. Insert Screw Driver Allen Wrench 12W9F-03011X5R01 SM30-082-B0 TD-10P 12W9H-05011X5R01 SM40-106-B0 TD-15P 12W9K-06015X5R01 SM50-138-B0 - L-W3 12W9K-06017X6R01 SM50-138-B0 - L-W3 12W9M-07016X6R01 SM60-165-B0 L-W4 12W9M-07021X7R01 SM60-165-B0 L-W4 12W9R-10023X7R01 SM70-210-B0 L-W4 12W9R-10023X8R01 SM70-210-B0 L-W4 288 Pg-IVI jne
