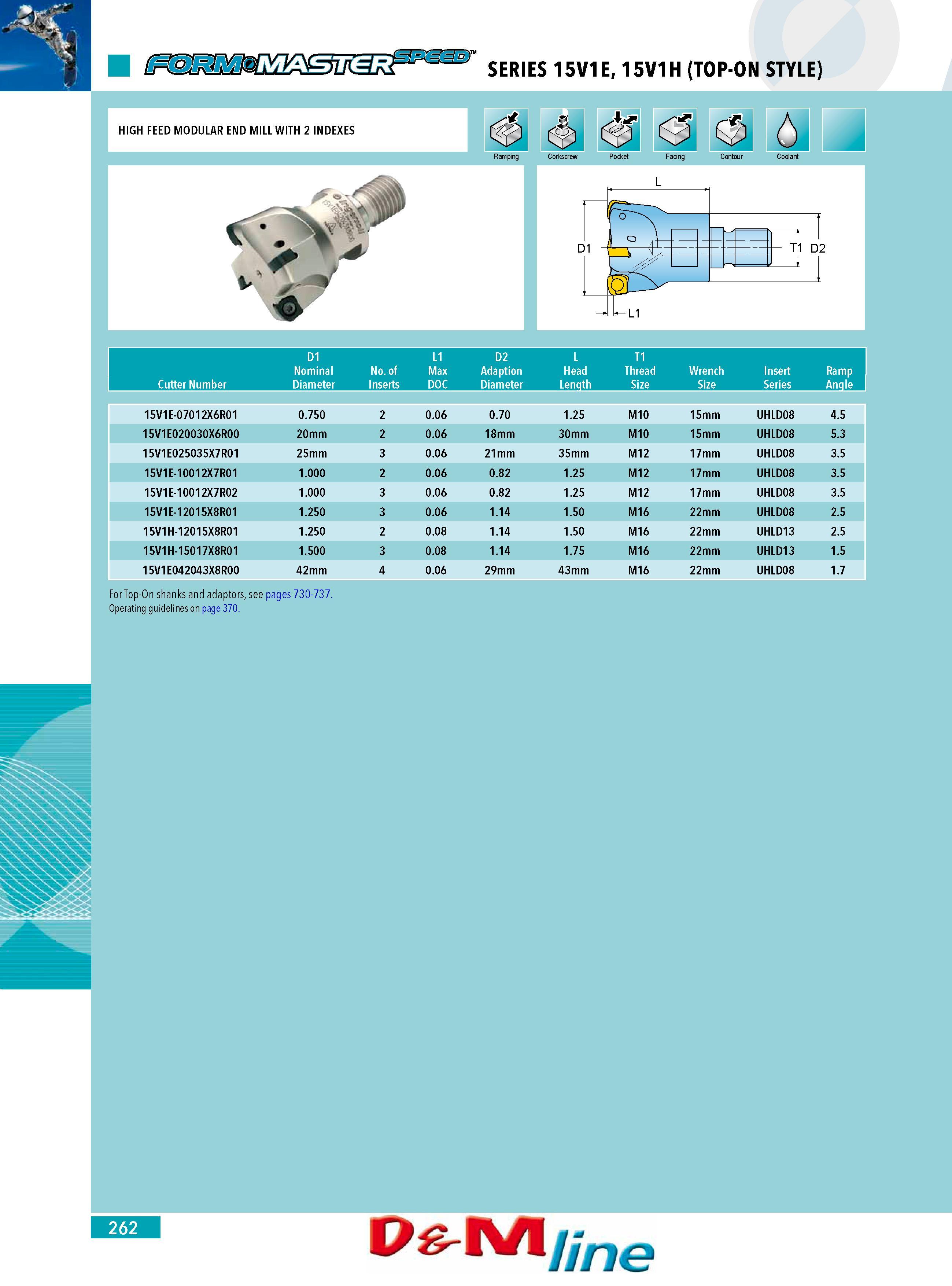

260 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.262

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 262 0260 Lab2u

D1 L1 D2 L T1 Nominal No. of Max Adaption Head Thread Wrench Insert Ramp Cutter Number Diameter Inserts DOC Diameter Length Size Size Series Angle 15V1E-07012X6R01 0.750 2 0.06 0.70 1.25 M10 15mm UHLD08 4.5 15V1E020030X6R00 20mm 2 0.06 18mm 30mm M10 15mm UHLD08 5.3 15V1E025035X7R01 25mm 3 0.06 21mm 35mm M12 17mm UHLD08 3.5 15V1E-10012X7R01 1.000 2 0.06 0.82 1.25 M12 17mm UHLD08 3.5 15V1E-10012X7R02 1.000 3 0.06 0.82 1.25 M12 17mm UHLD08 3.5 15V1E-12015X8R01 1.250 3 0.06 1.14 1.50 M16 22mm UHLD08 2.5 15V1H-12015X8R01 1.250 2 0.08 1.14 1.50 M16 22mm UHLD13 2.5 15V1H-15017X8R01 1.500 3 0.08 1.14 1.75 M16 22mm UHLD13 1.5 15V1E042043X8R00 42mm 4 0.06 29mm 43mm M16 22mm UHLD08 1.7 For Top-On shanks and adaptors see pages 730-737. Operating guidelines on page 370. P IX l ne
