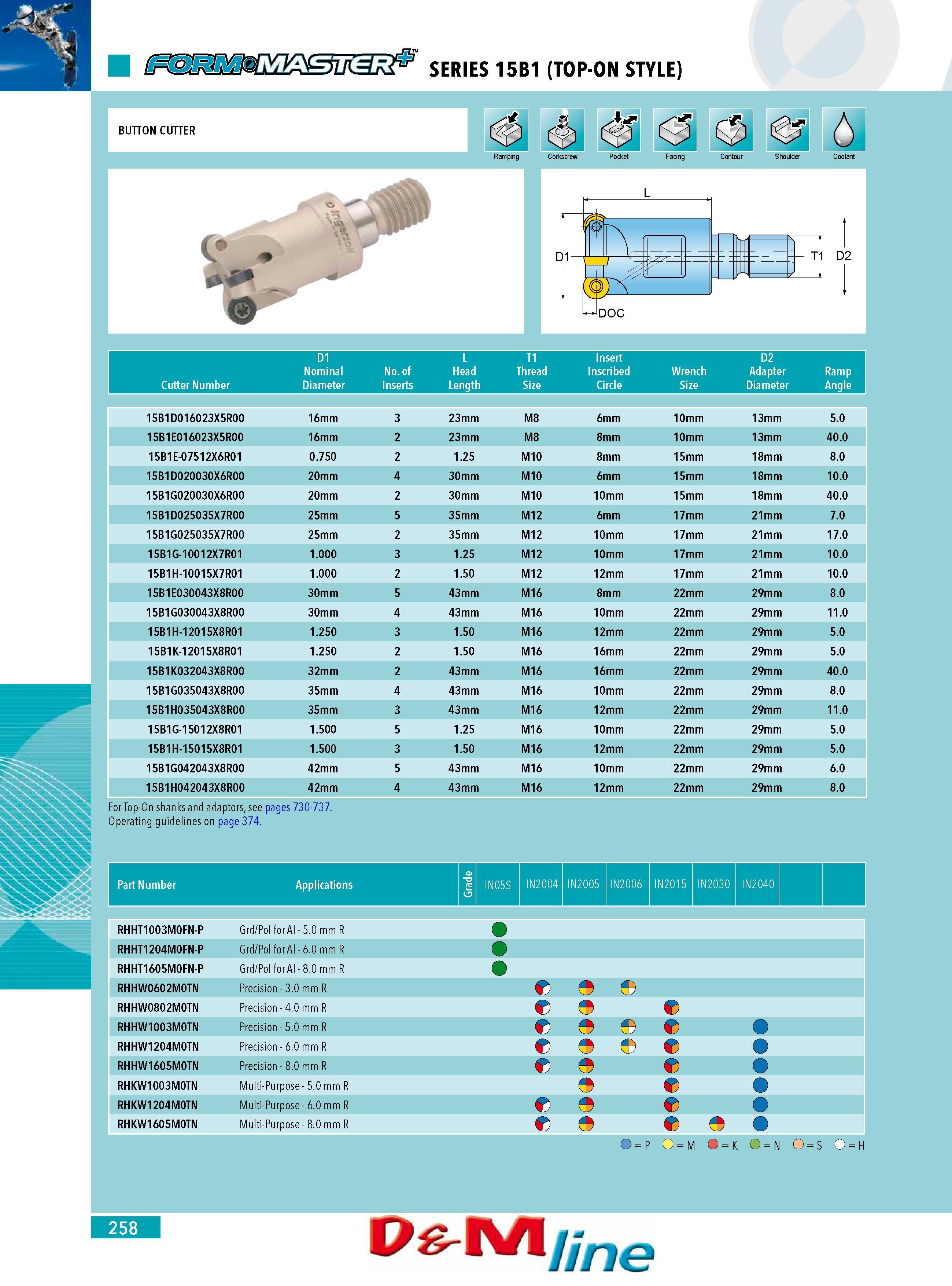

SERIES 15B1 (TOP-ON STYLE) BUTTON CUTTER Ramping Corkscrew Pocket Facing Contour Shoulder Coolant D1 L T1 Insert D2 Nominal No. of Head Thread Inscribed Wrench Adapter Cutter Number Diameter Inserts Length Size Circle Size Diameter For Top-On shanks and adaptors see pages 730-737. Operating guidelines on page 374. Part Number Applications 15B1D016023X5R00 16mm 3 23mm M8 6mm 10mm 13mm 5.0 15B1E016023X5R00 16mm 2 23mm M8 8mm 10mm 13mm 40.0 15B1E-07512X6R01 0.750 2 1.25 M10 8mm 15mm 18mm 8.0 15B1D020030X6R00 20mm 4 30mm M10 6mm 15mm 18mm 10.0 15B1G020030X6R00 20mm 2 30mm M10 10mm 15mm 18mm 40.0 15B1D025035X7R00 25mm 5 35mm M12 6mm 17mm 21mm 7.0 15B1G025035X7R00 25mm 2 35mm M12 10mm 17mm 21mm 17.0 15B1G-10012X7R01 1.000 3 1.25 M12 10mm 17mm 21mm 10.0 15B1H-10015X7R01 1.000 2 1.50 M12 12mm 17mm 21mm 10.0 15B1E030043X8R00 30mm 5 43mm M16 8mm 22mm 29mm 8.0 15B1G030043X8R00 30mm 4 43mm M16 10mm 22mm 29mm 11.0 15B1H-12015X8R01 1.250 3 1.50 M16 12mm 22mm 29mm 5.0 15B1K-12015X8R01 1.250 2 1.50 M16 16mm 22mm 29mm 5.0 15B1K032043X8R00 32mm 2 43mm M16 16mm 22mm 29mm 40.0 15B1G035043X8R00 35mm 4 43mm M16 10mm 22mm 29mm 8.0 15B1H035043X8R00 35mm 3 43mm M16 12mm 22mm 29mm 11.0 15B1G-15012X8R01 1.500 5 1.25 M16 10mm 22mm 29mm 5.0 15B1H-15015X8R01 1.500 3 1.50 M16 12mm 22mm 29mm 5.0 15B1G042043X8R00 42mm 5 43mm M16 10mm 22mm 29mm 6.0 15B1H042043X8R00 42mm 4 43mm M16 12mm 22mm 29mm 8.0 RHHT1003M0FN-P Grd Pol for Al - 5.0 mm R RHHT1204M0FN-P Grd Pol for Al - 6.0 mm R RHHT1605M0FN-P Grd Pol for Al - 8.0 mm R RHHW0602M0TN Precision - 3.0 mm R RHHW0802M0TN Precision - 4.0 mm R RHHW1003M0TN Precision - 5.0 mm R RHHW1204M0TN Precision - 6.0 mm R RHHW1605M0TN Precision - 8.0 mm R RHKW1003M0TN Multi-Purpose - 5.0 mm R RHKW1204M0TN Multi-Purpose - 6.0 mm R RHKW1605M0TN Multi-Purpose - 8.0 mm R O P O M K S o H VfiM jne 258
