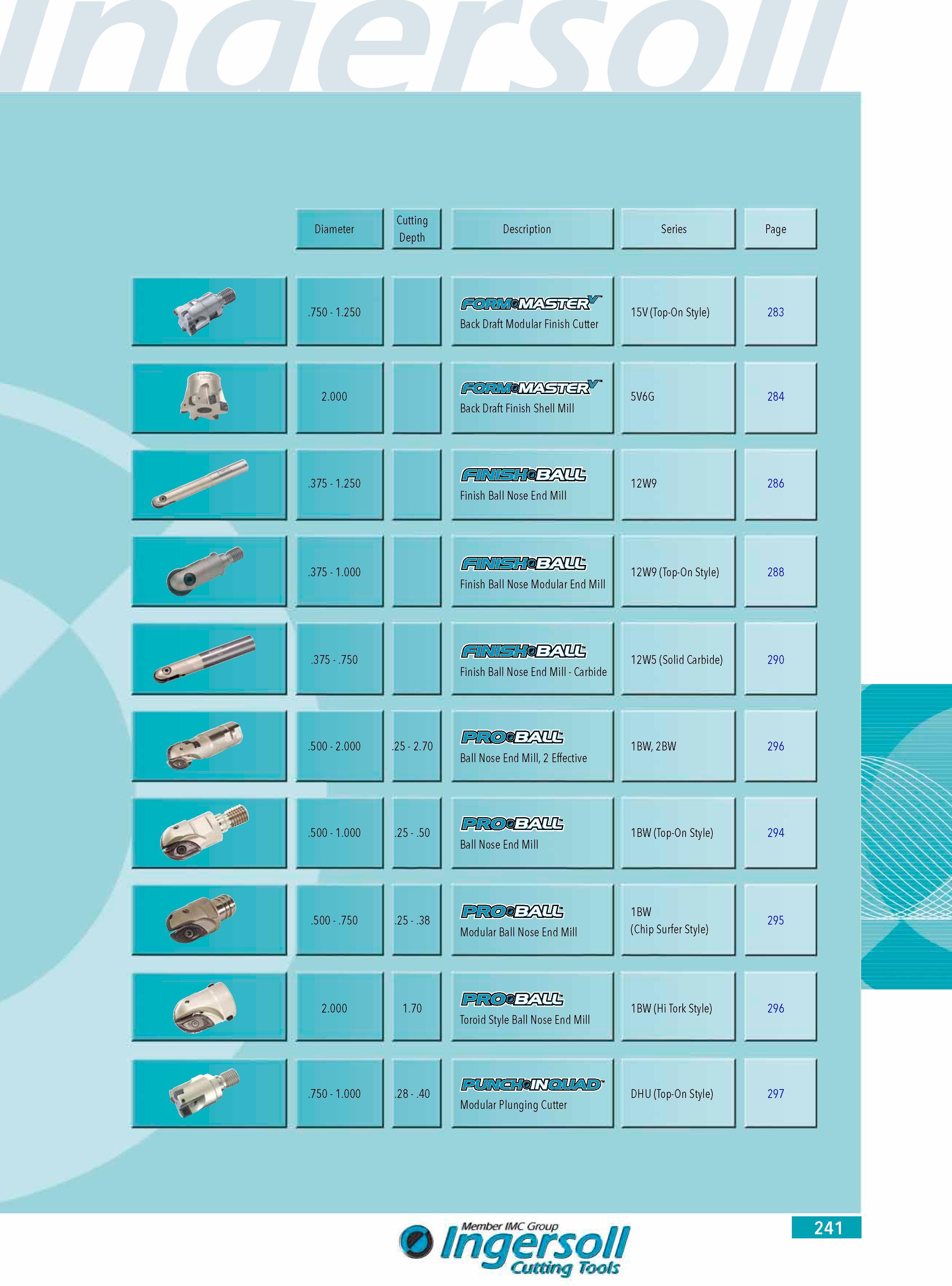

239 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.241

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 241 0239 Lab2u

Diameter Cutting Depth Description Series Page .750 - 1.250 15V (Top-On Style) 283 Back Draft Modular Finish Cutter 2.000 5V6G 284 Back Draft Finish Shell Mill .375 - 1.250 Finish Ball Nose End Mill 12W9 286 .375 - 1.000 12W9 (Top-On Style) (iMMMESBmm Finish Ball Nose Modular End Mill 288 .375 - .750 12W5 (Solid Carbide) 290 Finish Ball Nose End Mill - Carbide .500 - 2.000 .25 - 2.70 Ball Nose End Mill 2 Effective 1BW 2BW 296 .500 - 1.000 .25 - .50 Ball Nose End Mill 1BW (Top-On Style) 294 .500 - .750 .25 - .38 1BW (Chip Surfer Style) Modular Ball Nose End Mill 295 2.000 1.70 Toroid Style Ball Nose End Mill 1BW (Hi Tork Style) 296 .750 - 1.000 .28 - .40 muffimMnrwmsmm- Modular Plunging Cutter DHU (Top-On Style) 297 m Member IMC Group m m olnqersoll Cutting Tools 241
