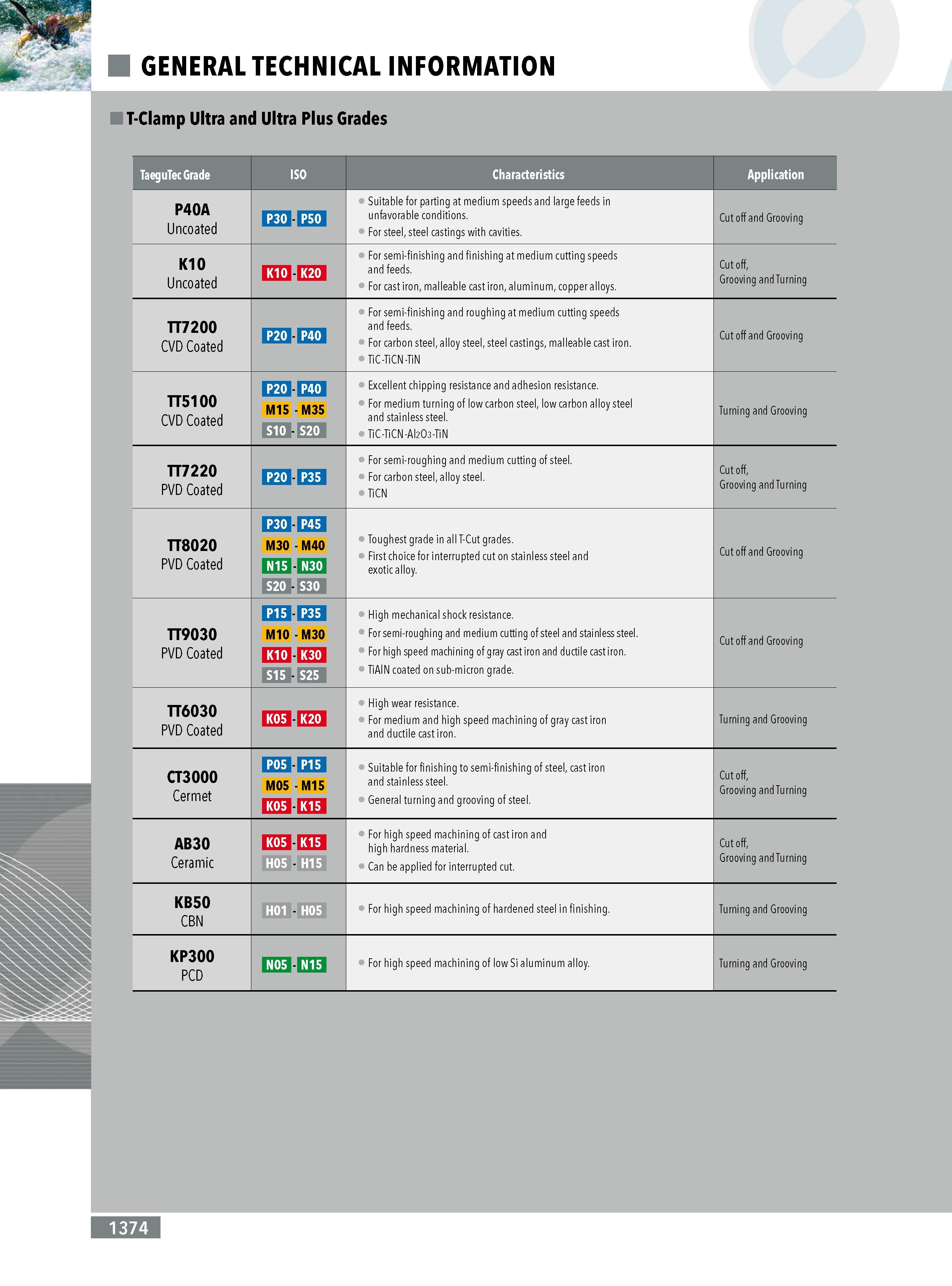

GENERAL TECHNICAL INFORMATION T-Clamp Ultra and Ultra Plus Grades TaeguTec Grade ISO Characteristics Application P40A Uncoated P30 - P50 Suitable for parting at medium speeds and large feeds in unfavorable conditions. For steel steel castings with cavities. Cut off and Grooving K10 Uncoated K10 - K20 For semi-finishing and finishing at medium cutting speeds and feeds. For cast iron malleable cast iron aluminum copper alloys. Cut off Grooving and Turning TT7200 CVD Coated P20 - P40 For semi-finishing and roughing at medium cutting speeds and feeds. For carbon steel alloy steel steel castings malleable cast iron. TiC-TiCN-TiN Cut off and Grooving TT5100 CVD Coated P20 - P40 M15 - M35 Excellent chipping resistance and adhesion resistance. For medium turning of low carbon steel low carbon alloy steel and stainless steel. Turning and Grooving S10 - S20 TiC-TiCN -Al2O3-TiN TT7220 PVD Coated For semi-roughing and medium cutting of steel. For carbon steel alloy steel. TiCN Cut off Grooving and Turning TT8020 PVD Coated P30 - P45 M30 - M40 N15 - N30 S20 - S30 Toughest grade in all T-Cut grades. First choice for interrupted cut on stainless steel and exotic alloy. Cut off and Grooving TT9030 PVD Coated P15 - P35 M10 - M30 K10 - K30 S15 - S25 High mechanical shock resistance. For semi-roughing and medium cutting of steel and stainless steel. For high speed machining of gray cast iron and ductile cast iron. TiAlN coated on sub-micron grade. Cut off and Grooving TT6030 PVD Coated K05 - K20 High wear resistance. For medium and high speed machining of gray cast iron and ductile cast iron. Turning and Grooving CT3000 Cermet P05 - P15 M05 - M15 K05 - K15 Suitable for finishing to semi-finishing of steel cast iron and stainless steel. General turning and grooving of steel. Cut off Grooving and Turning AB30 Ceramic K05 - K15 H05 - H15 For high speed machining of cast iron and high hardness material. Can be applied for interrupted cut. Cut off Grooving and Turning KB50 CBN H01 - H05 For high speed machining of hardened steel in finishing. Turning and Grooving KP300 PCD N05 - N15 For high speed machining of low Si aluminum alloy. Turning and Grooving 1374
