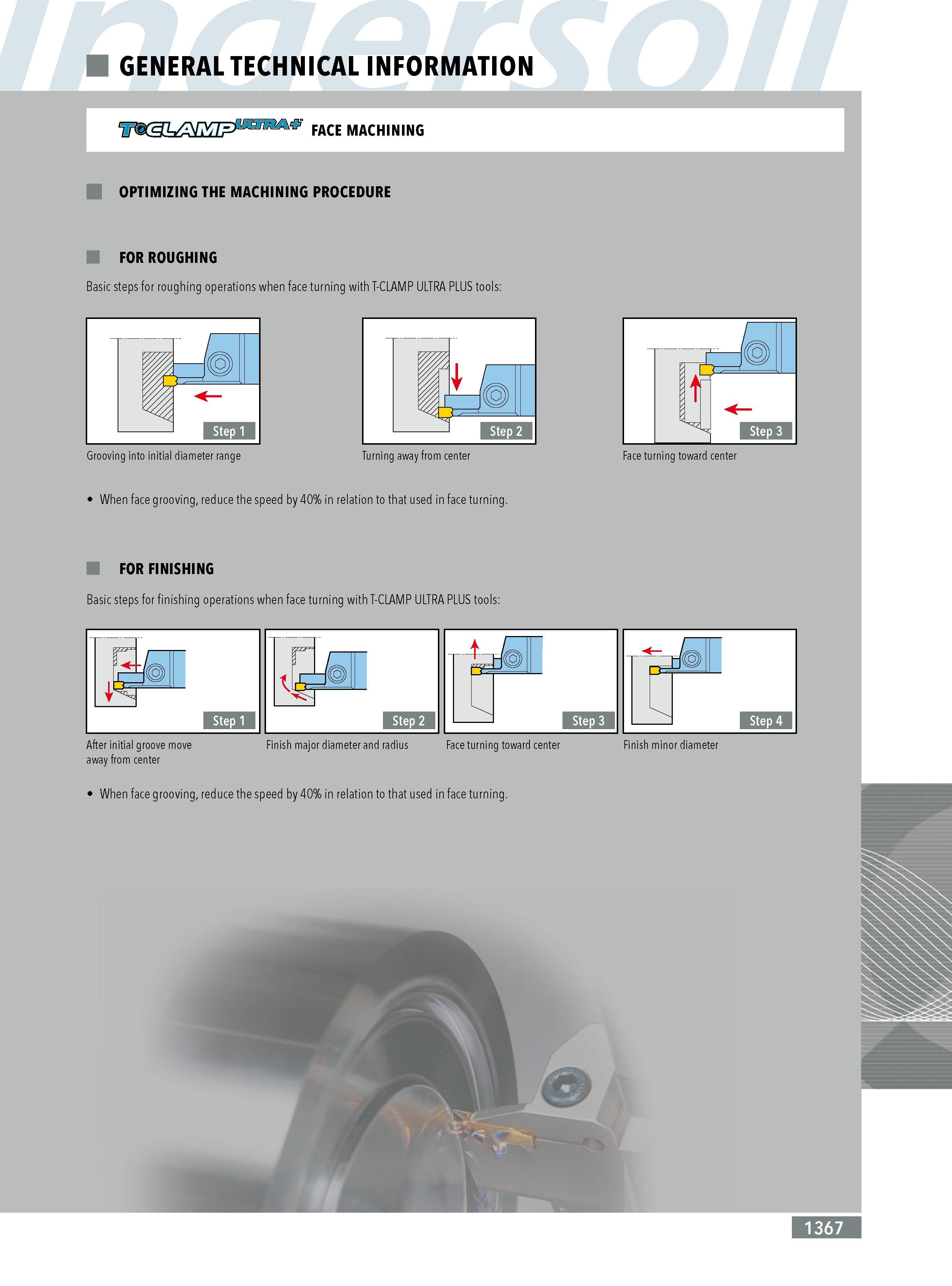

GENERAL TECHNICAL INFORMATION nTFSCWVNyr J FACE MACHINING OPTIMIZING THE MACHINING PROCEDURE FOR ROUGHING Basic steps for roughing operations when face turning with T-CLAMP ULTRA PLUS tools: Grooving into initial diameter range Turning away from center Face turning toward center When face grooving reduce the speed by 40% in relation to that used in face turning. FOR FINISHING Basic steps for finishing operations when face turning with T-CLAMP ULTRA PLUS tools: After initial groove move Finish major diameter and radius Face turning toward center Finish minor diameter away from center 1367
