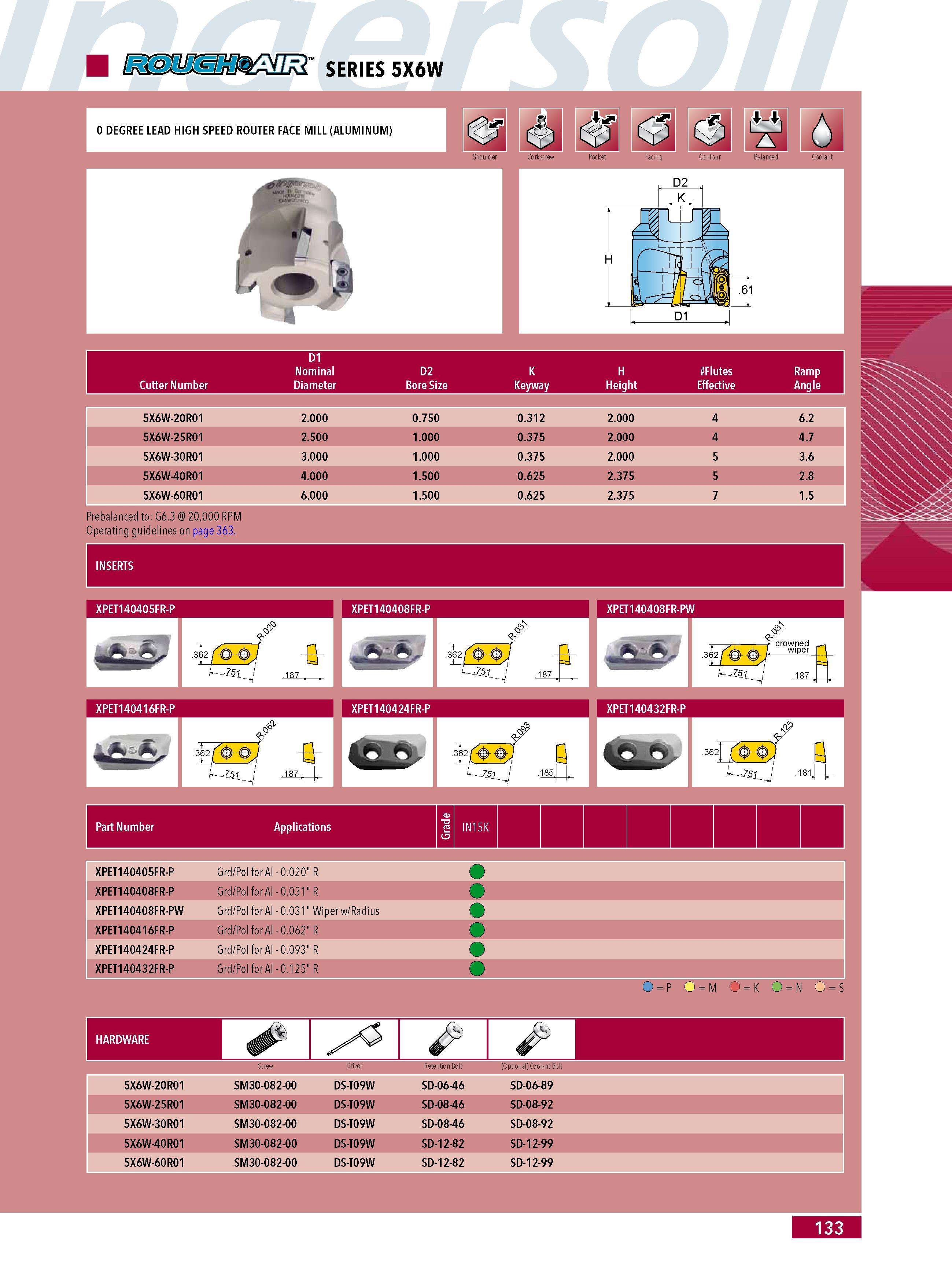

Prebalanced to: G6.3 20000 RPM Operating guidelines on page 363. D1 Nominal D2 K H Flutes Ramp Cutter Number Diameter Bore Size Keyway Height Effective Angle 5X6W-20R01 2.000 0.750 0.312 2.000 4 6.2 5X6W-25R01 2.500 1.000 0.375 2.000 4 4.7 5X6W-30R01 3.000 1.000 0.375 2.000 5 3.6 5X6W-40R01 4.000 1.500 0.625 2.375 5 2.8 5X6W-60R01 6.000 1.500 0.625 2.375 7 1.5 XPET140405FR-P XPET140408FR-P XPET140408FR-PW XPET140416FR-P XPET140424FR-P XPET140432FR-P Q e d Part Number Applications IN15K Gr XPET140405FR-P Grd Pol for Al - 0.020 R XPET140408FR-P Grd Pol for Al - 0.031 R o XPET140408FR-PW Grd Pol for Al - 0.031 Wiper w Radius XPET140416FR-P Grd Pol for Al - 0.062 R o XPET140424FR-P Grd Pol for Al - 0.093 R XPET140432FR-P Grd Pol for Al - 0.125 R P O M O K O N O S HARDWARE & Screw Driver Retention Bolt (Optional) Coolant Bolt 5X6W-20R01 SM30-082-00 DS-T09W SD-06-46 SD-06-89 5X6W-25R01 SM30-082-00 DS-T09W SD-08-46 SD-08-92 5X6W-30R01 SM30-082-00 DS-T09W SD-08-46 SD-08-92 5X6W-40R01 SM30-082-00 DS-T09W SD-12-82 SD-12-99 5X6W-60R01 SM30-082-00 DS-T09W SD-12-82 SD-12-99 133
