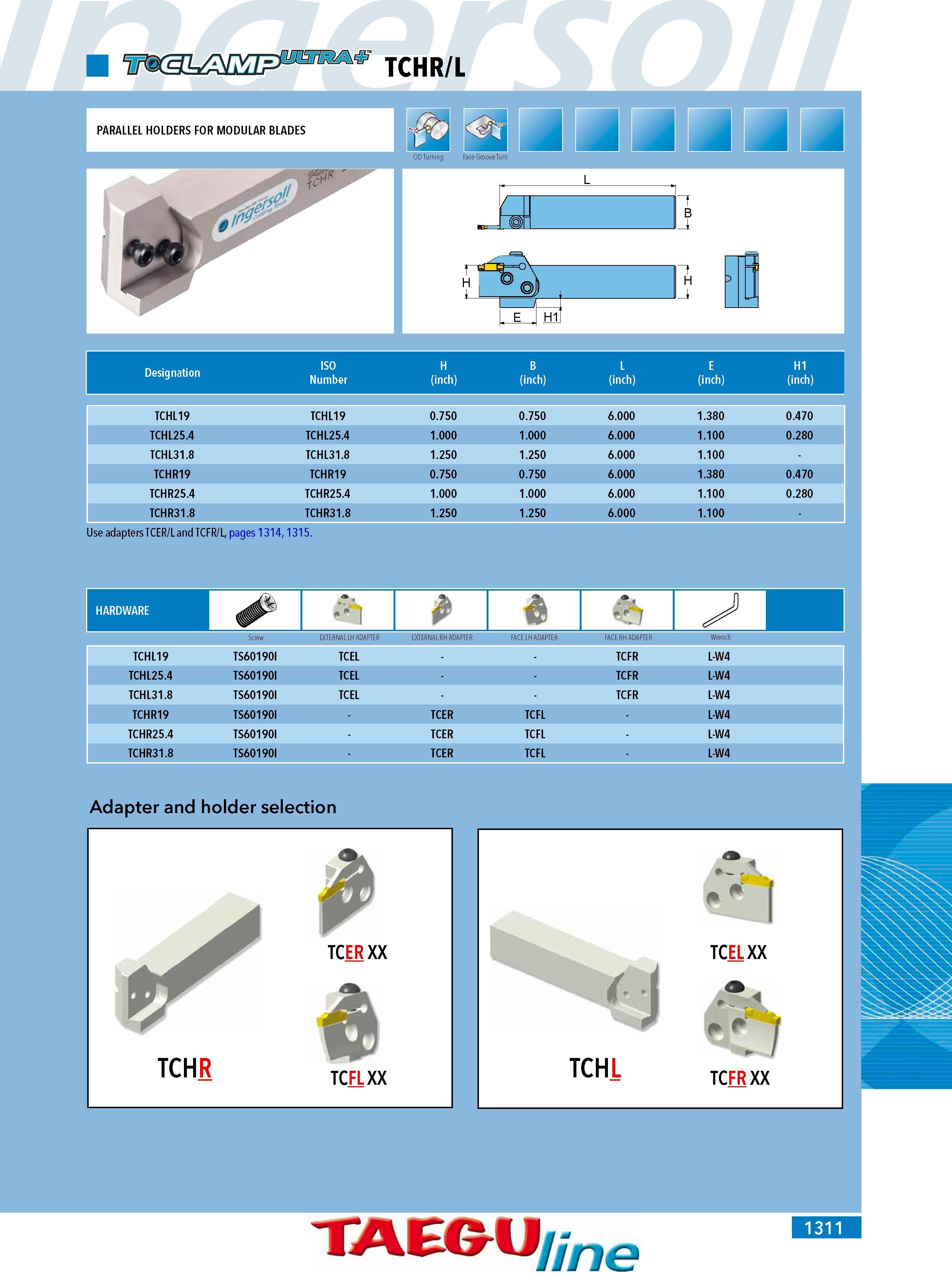

1309 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.1311

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 1311 1309 Lab2u

Designation ISO Number H (inch) B (inch) L (inch) E (inch) H1 (inch) TCHL19 TCHL19 0.750 0.750 6.000 1.380 0.470 TCHL25.4 TCHL25.4 1.000 1.000 6.000 1.100 0.280 TCHL31.8 TCHL31.8 1.250 1.250 6.000 1.100 TCHR19 TCHR19 0.750 0.750 6.000 1.380 0.470 TCHR25.4 TCHR25.4 1.000 1.000 6.000 1.100 0.280 TCHR31.8 TCHR31.8 1.250 1.250 6.000 1.100 Use adapters TCER L and TCFR L pages 1314 1315. Screw EXTERNAL LH ADAPTER EXTERNAL RH ADAPTER FACE LH ADAPTER FACE RH ADAPTER Wrench TCHL19 TS60190I TCEL TCFR L-W4 TCHL25.4 TS60190I TCEL TCFR L-W4 TCHL31.8 TS60190I TCEL TCFR L-W4 TCHR19 TS60190I TCER TCFL L-W4 TCHR25.4 TS60190I TCER TCFL L-W4 TCHR31.8 TS60190I TCER TCFL L-W4
