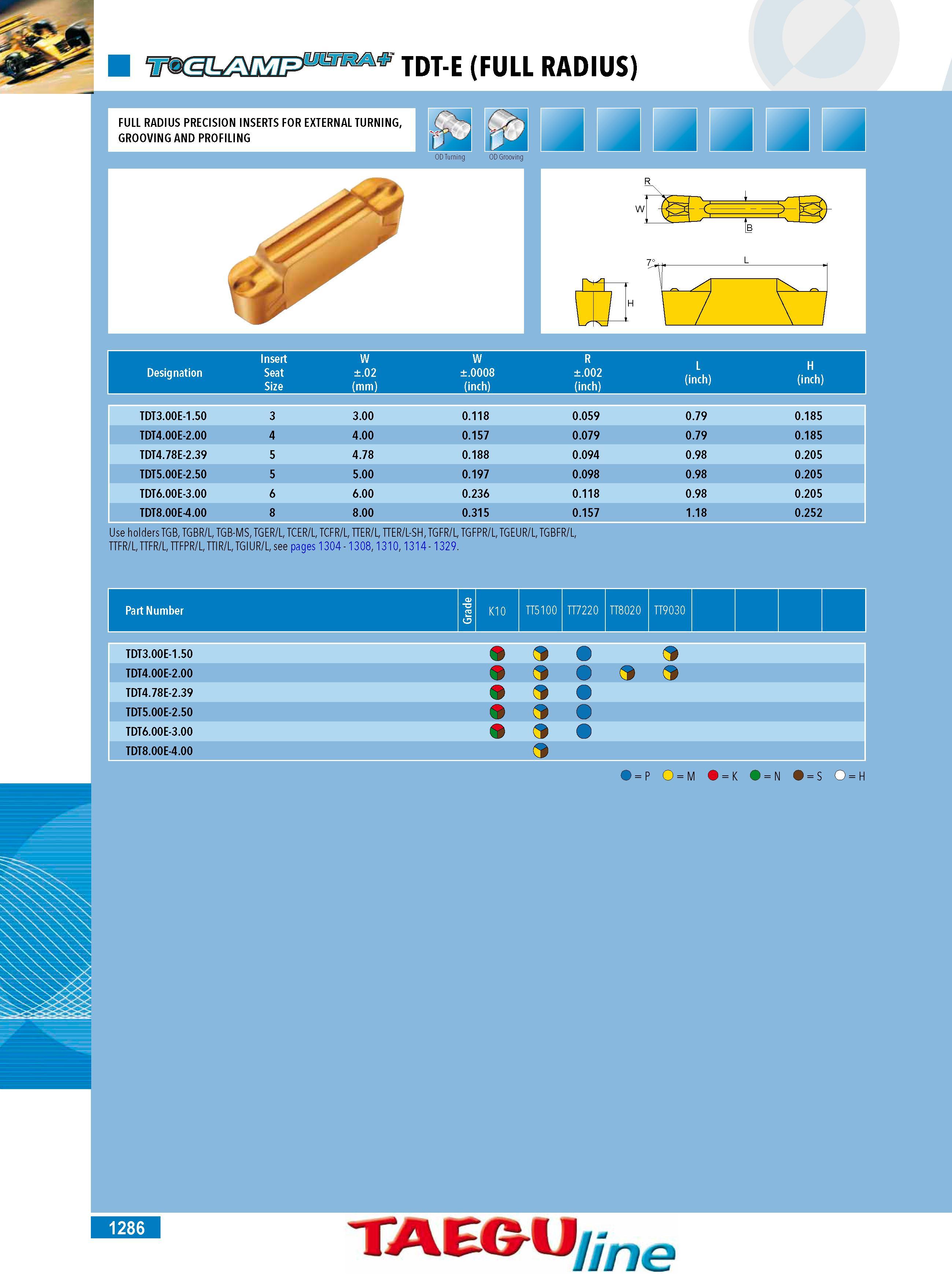

HTDT-E (FULL RADIUS) FULL RADIUS PRECISION INSERTS FOR EXTERNAL TURNING GROOVING AND PROFILING OD Turning OD Grooving -G Designation TDT3.00E-1.50 3 3.00 0.118 0.059 0.79 0.185 TDT4.00E-2.00 4 4.00 0.157 0.079 0.79 0.185 TDT4.78E-2.39 5 4.78 0.188 0.094 0.98 0.205 TDT5.00E-2.50 5 5.00 0.197 0.098 0.98 0.205 TDT6.00E-3.00 6 6.00 0.236 0.118 0.98 0.205 TDT8.00E-4.00 8 8.00 0.315 0.157 1.18 0.252 Use holders TGB TGBR L TGB-MS TGER L TCER L TCFR L TTER L TTER L-SH TGFR L TGFPR L TGEUR L TGBFR L TTFR L TTFR L TTFPR L TTIR L TGIUR L see pages 1304 - 1308 1310 1314 - 1329. K10 TT5100 TT7220 TT8020 TT9030 TDT3.00E-1.50 TDT4.00E-2.00 o TDT4.78E-2.39 TDT5.00E-2.50 o TDT6.00E-3.00 o TDT8.00E-4.00 O P O M O K S O H Insert Seat Size W .02 (mm) W :.0008 (inch) R .002 (inch) L (inch) H (inch) 1286 TAEGU line
