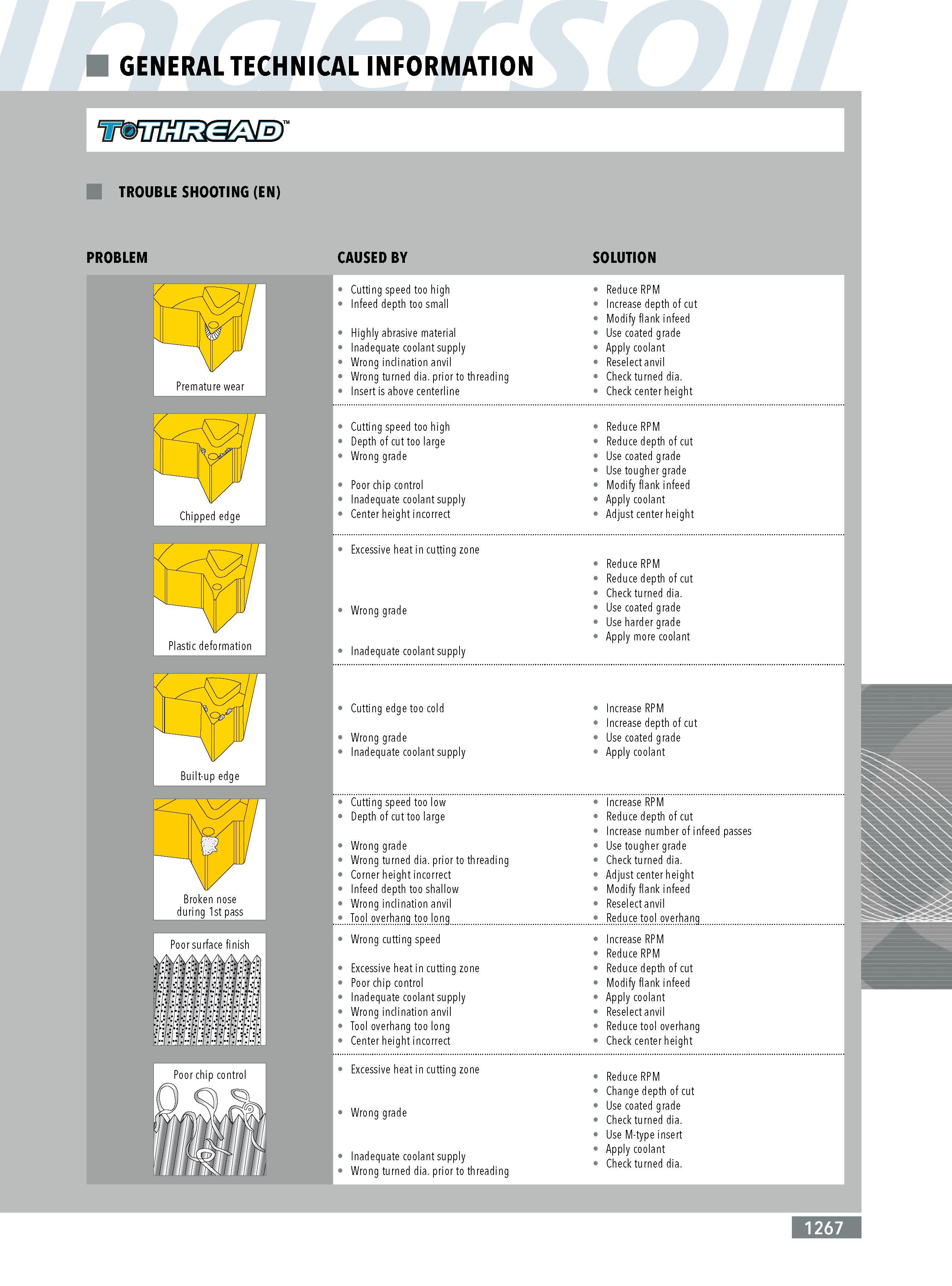

GENERAL TECHNICAL INFORMATION TROUBLE SHOOTING (EN) PROBLEM CAUSED BY SOLUTION Cutting speed too high Infeed depth too small Highly abrasive material Inadequate coolant supply Wrong inclination anvil Wrong turned dia. prior to threading Insert is above centerline Reduce RPM Increase depth of cut Modify flank infeed Use coated grade Apply coolant Reselect anvil Check turned dia. Check center height Cutting speed too high Depth of cut too large Wrong grade Poor chip control Inadequate coolant supply Center height incorrect Reduce RPM Reduce depth of cut Use coated grade Use tougher grade Modify flank infeed Apply coolant Adjust center height Excessive heat in cutting zone Wrong grade Inadequate coolant supply Reduce RPM Reduce depth of cut Check turned dia. Use coated grade Use harder grade Apply more coolant Cutting edge too cold Wrong grade Inadequate coolant supply Increase RPM Increase depth of cut Use coated grade Apply coolant Cutting speed too low Depth of cut too large Wrong grade Wrong turned dia. prior to threading Corner height incorrect Infeed depth too shallow Wrong inclination anvil Tool overhang too long Increase RPM Reduce depth of cut Increase number of infeed passes Use tougher grade Check turned dia. Adjust center height Modify flank infeed Reselect anvil Reduce tool overhang Wrong cutting speed Excessive heat in cutting zone Poor chip control Inadequate coolant supply Wrong inclination anvil Tool overhang too long Center height incorrect Increase RPM Reduce RPM Reduce depth of cut Modify flank infeed Apply coolant Reselect anvil Reduce tool overhang Check center height Excessive heat in cutting zone Wrong grade Inadequate coolant supply Wrong turned dia. prior to threading Reduce RPM Change depth of cut Use coated grade Check turned dia. Use M-type insert Apply coolant Check turned dia. 1267
