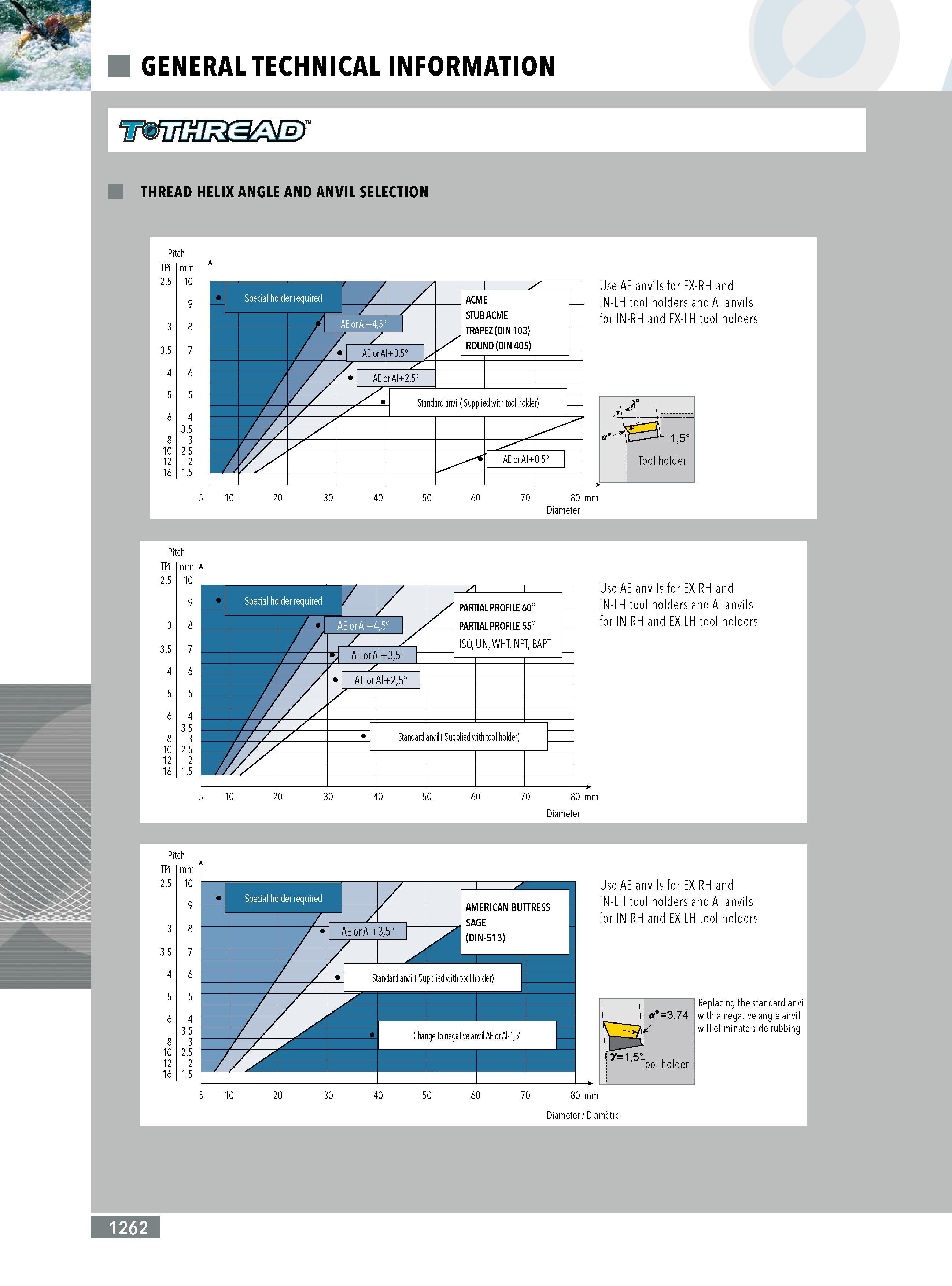

GENERAL TECHNICAL INFORMATION THREAD HELIX ANGLE AND ANVIL SELECTION Pitch TPi mm 2.5 10 9 3 8 3.5 7 4 6 5 5 6 4 3.5 8 3 10 2.5 12 2 16 1.5 Special holder required WA l -V Use AE anvils for EX-RH and -LH tool holders and AI anvils for IN-RH and EX-LH tool holders 5 10 30 40 50 60 70 80 mm Diameter 20 Pitch 5 10 30 40 50 60 Use AE anvils for EX-RH and -LH tool holders and AI anvils for IN-RH and EX-LH tool holders 70 80 mm Diameter Diametre Replacing the standard anvil with a negative angle anvil will eliminate side rubbing 20 1262
