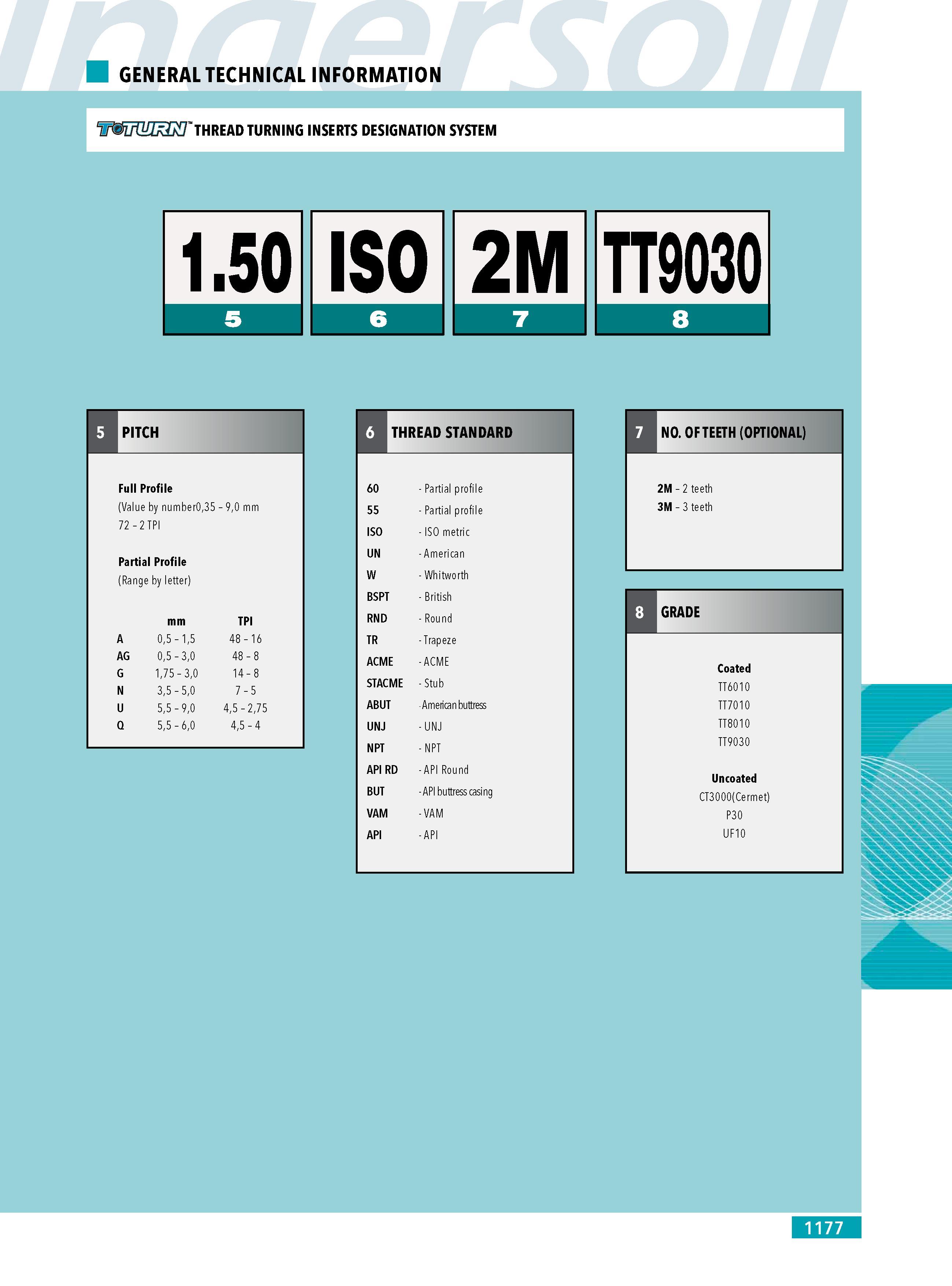

GENERAL TECHNICAL INFORMATION THREAD TURNING INSERTS DESIGNATION SYSTEM PITCH Full Profile (Value by number035 - 90 mm 72 - 2 TPI Partial Profile (Range by letter) mm TPI A 05 - 15 4 CO 6 AG 0 3 5 0 48 - 8 G 175 - 30 8 N 35 - 50 7 - 5 U 55 - 90 45 - 275 Q 55 - 60 45 - 4 1.50 ISO 2M TT9030 THREAD STANDARD 60 - Partial profile 55 - Partial profile ISO - ISO metric UN - American W - Whitworth BSPT - British RND - Round TR - Trapeze ACME - ACME STACME - Stub ABUT - American buttress UNJ - UNJ NPT - NPT API RD - API Round BUT - API buttress casing VAM - VAM API - API 7 NO. OF TEETH (OPTIONAL) 2M - 2 teeth 3M - 3 teeth GRADE Coated TT6010 TT7010 TT8010 TT9030 Uncoated CT3000(Cermet) P30 UF10 8 1177
