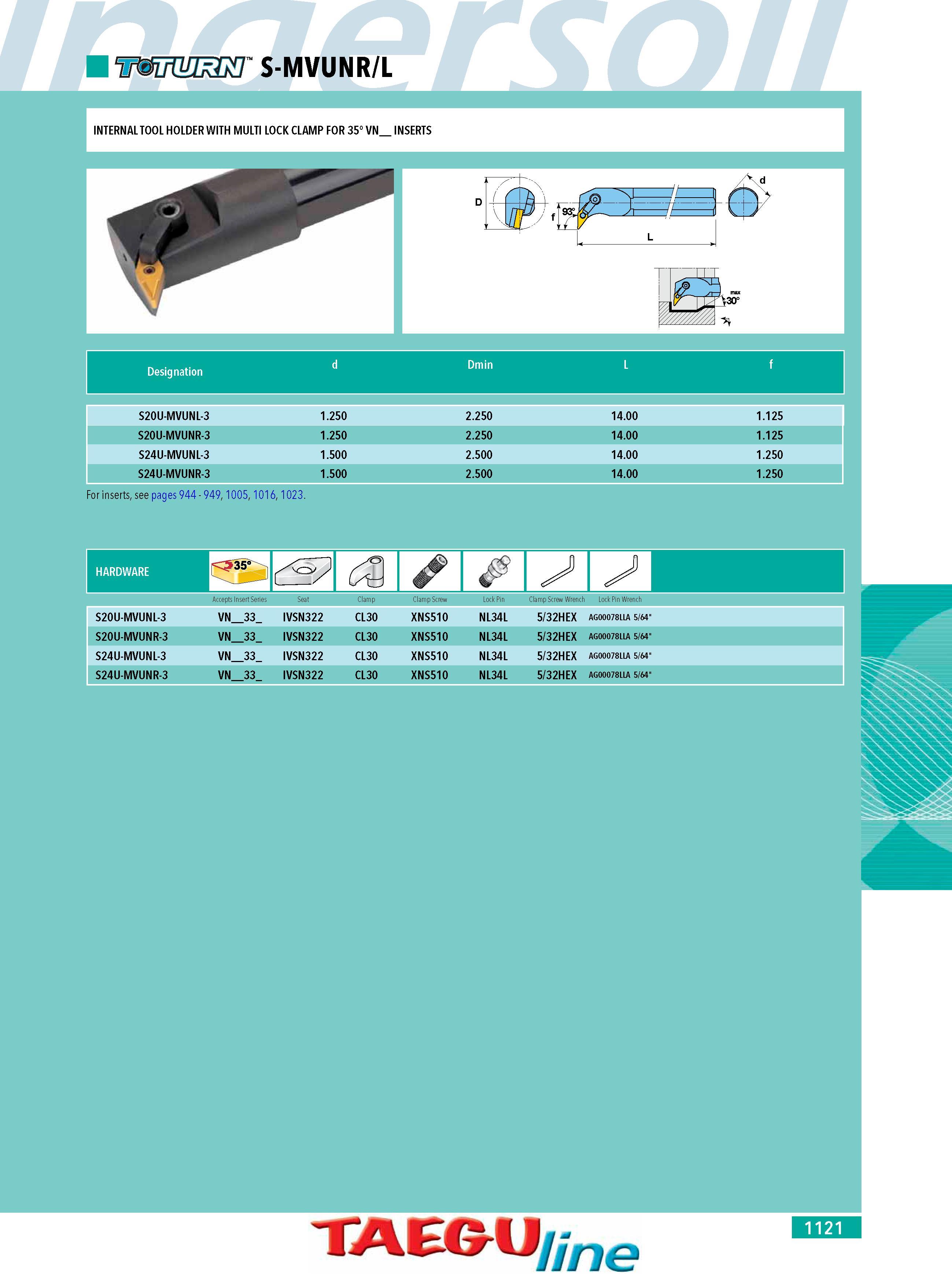

S-MVUNR L INTERNAL TOOL HOLDER WITH MULTI LOCK CLAMP FOR 35 VN INSERTS S20U-MVUNL-3 1.250 2.250 14.00 1.125 S20U-MVUNR-3 1.250 2.250 14.00 1.125 S24U-MVUNL-3 1.500 2.500 14.00 1.250 S24U-MVUNR-3 1.500 2.500 14.00 1.250 For inserts see pages 944 - 949 1005 1016 1023. n n HARDWARE 535 J J Accepts Insert Series Clamp Clamp Screw Clamp Screw Wrench Lock Pin Wrench S20U-MVUNL-3 3 3 1 N V IVSN322 CL30 XNS510 NL34L 5 32HEX AG00078LLA 5 64" S20U-MVUNR-3 3 3 3 N V IVSN322 CL30 XNS510 NL34L 5 32HEX AG00078LLA 5 64" S24U-MVUNL-3 VN 33 IVSN322 CL30 XNS510 NL34L 5 32HEX AG00078LLA 5 64" S24U-MVUNR-3 3 3 1 N V IVSN322 CL30 XNS510 NL34L 5 32HEX AG00078LLA 5 64" U ne 1121
