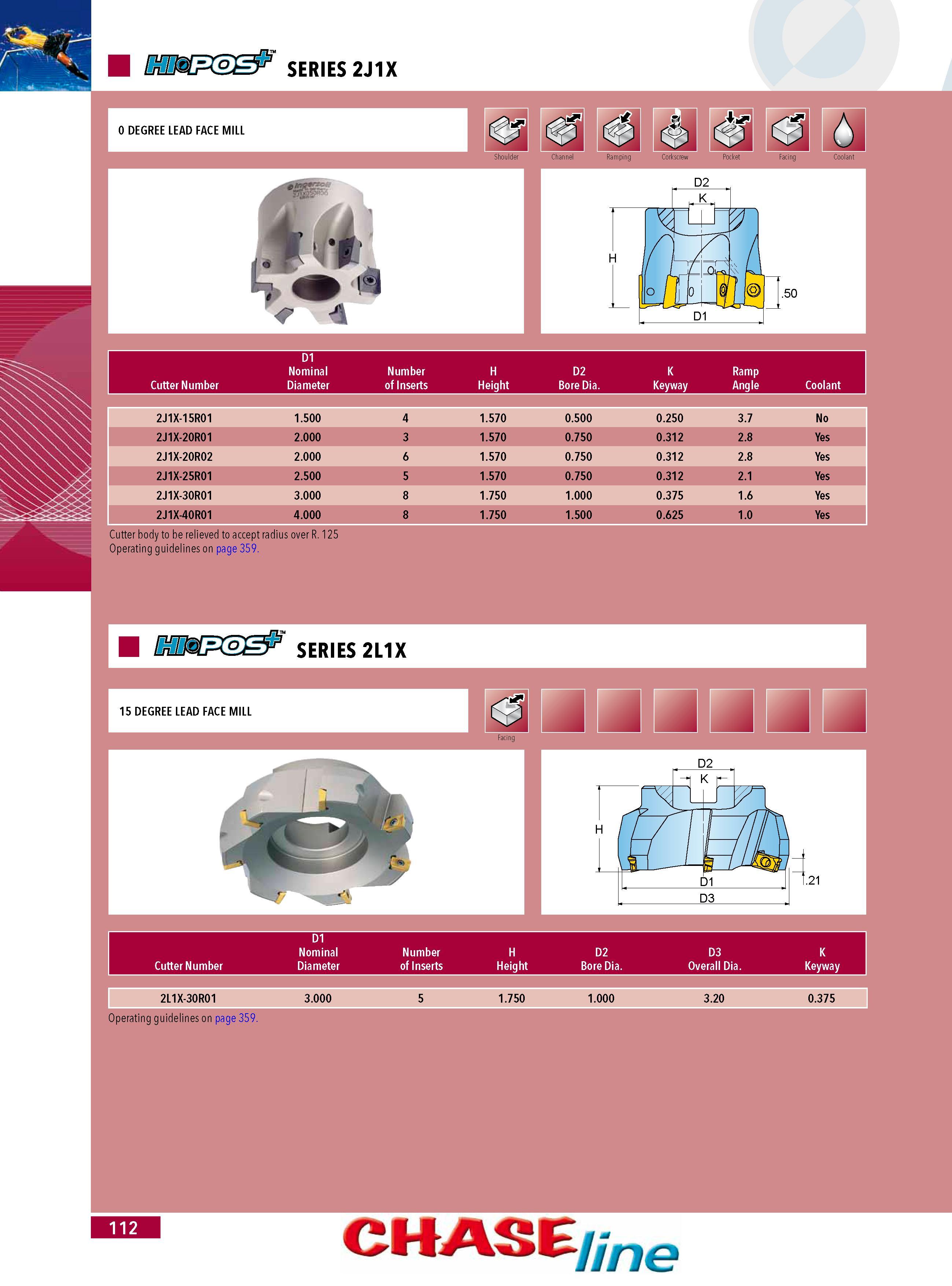

110 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.112

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 112 0110 Lab2u

D1 Nominal Number H D2 K Ramp Cutter Number Diameter of Inserts Height Bore Dia. Keyway Angle Coolant Cutter body to be relieved to accept radius over R. 125 Operating guidelines on page 359. 2J1X-15R01 1.500 4 1.570 0.500 0.250 3.7 No 2J1X-20R01 2.000 3 1.570 0.750 0.312 2.8 Yes 2J1X-20R02 2.000 6 1.570 0.750 0.312 2.8 Yes 2J1X-25R01 2.500 5 1.570 0.750 0.312 2.1 Yes 2J1X-30R01 3.000 8 1.750 1.000 0.375 1.6 Yes 2J1X-40R01 4.000 8 1.750 1.500 0.625 1.0 Yes D1 Nominal Number H D2 D3 K Cutter Number Diameter of Inserts Height Bore Dia. Overall Dia. Keyway 2L1X-30R01 3.000 5 1.750 1.000 3.20 0.375 Operating guidelines on page 359. CHASE ne
