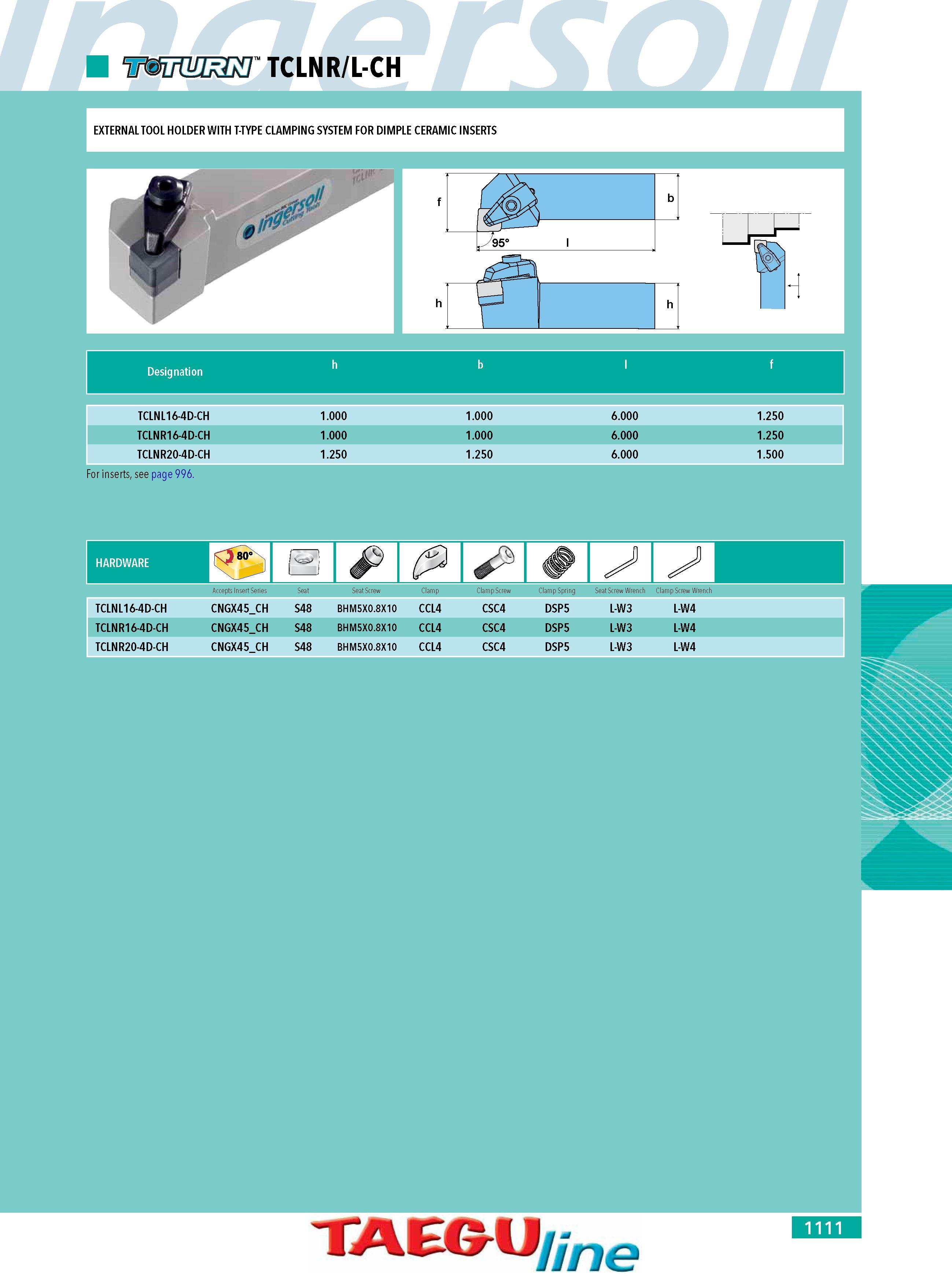

TCLNR L-CH EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR DIMPLE CERAMIC INSERTS Designation TCLNL16-4D-CH 1.000 1.000 6.000 1.250 TCLNR16-4D-CH 1.000 1.000 6.000 1.250 TCLNR20-4D-CH 1.250 1.250 6.000 1.500 For inserts see page 996. Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Spring Seat Screw Wrench Clamp Screw Wrench TCLNL16-4D-CH CNGX45CH S48 BHM5X0.8X10 CCL4 CSC4 DSP5 L-W3 L-W4 TCLNR16-4D-CH CNGX45CH S48 BHM5X0.8X10 CCL4 CSC4 DSP5 L-W3 L-W4 lCLNR20-4D-CH CNGX45CH S48 BHM5X0.8X10 CCL4 CSC4 DSP5 L-W3 L-W4 SJKf&Uline 1111
