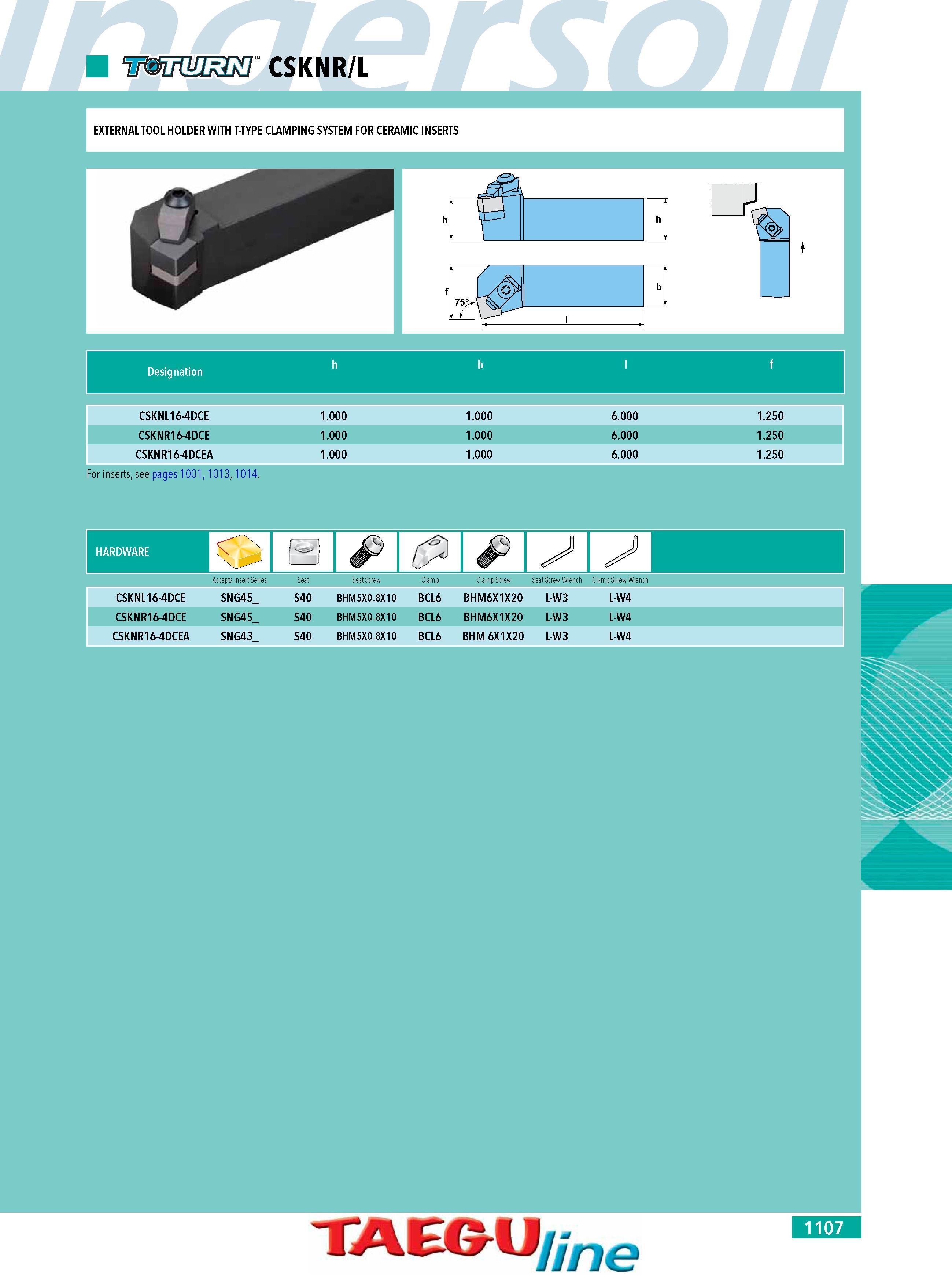

CSKNR L EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR CERAMIC INSERTS Designation CSKNL16-4DCE 1.000 1.000 6.000 1.250 CSKNR16-4DCE 1.000 1.000 6.000 1.250 CSKNR16-4DCEA 1.000 1.000 6.000 1.250 For inserts see pages 1001 1013 1014. Accepts Insert Series Clamp Clamp Screw Seat Screw Wrench Clamp Screw Wrench CSKNL16-4DCE SNG45 S40 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CSKNR16-4DCE SNG45 S40 BHM5X0.8X10 BCL6 BHM6X1X20 L-W3 L-W4 CSKNR16-4DCEA SNG43 S40 BHM5X0.8X10 BCL6 BHM 6X1X20 L-W3 L-W4 j iEGU ne 1107
