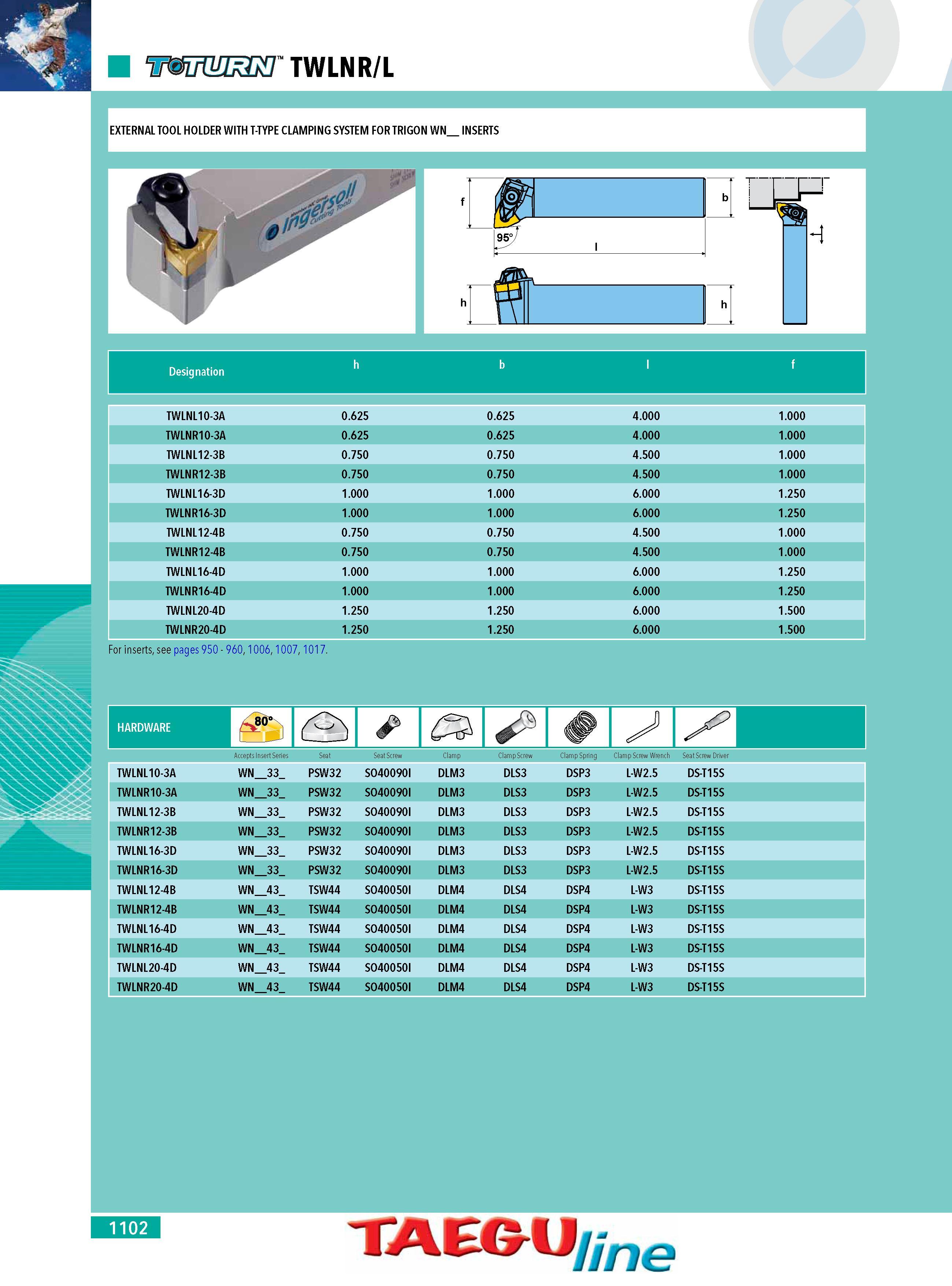

TWLNR L EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR TRIGON WN INSERTS Designation TWLNL10-3A 0.625 0.625 4.000 1.000 TWLNR10-3A 0.625 0.625 4.000 1.000 TWLNL12-3B 0.750 0.750 4.500 1.000 TWLNR12-3B 0.750 0.750 4.500 1.000 TWLNL16-3D 1.000 1.000 6.000 1.250 TWLNR16-3D 1.000 1.000 6.000 1.250 TWLNL12-4B 0.750 0.750 4.500 1.000 TWLNR12-4B 0.750 0.750 4.500 1.000 TWLNL16-4D 1.000 1.000 6.000 1.250 TWLNR16-4D 1.000 1.000 6.000 1.250 TWLNL20-4D 1.250 1.250 6.000 1.500 TWLNR20-4D 1.250 1.250 6.000 1.500 For inserts see pages 950 - 960 1006 1007 1017. Accepts Insert Series Clamp Clamp Screw Clamp Spring Clamp Screw Wrench Seat Screw Driver TWLNL10-3A WN 33 PSW32 SO40090I DLM3 DLS3 DSP3 L-W2.5 DS-T15S TWLNR10-3A WN 33 PSW32 SO40090I DLM3 DLS3 DSP3 L-W2.5 DS-T15S TWLNL12-3B 3 3 3 N W PSW32 SO40090I DLM3 DLS3 DSP3 L-W2.5 DS-T15S TWLNR12-3B WN 33 PSW32 SO40090I DLM3 DLS3 DSP3 L-W2.5 DS-T15S TWLNL16-3D 3 3 3 N W PSW32 SO40090I DLM3 DLS3 DSP3 L-W2.5 DS-T15S TWLNR16-3D 3 3 3 N W PSW32 SO40090I DLM3 DLS3 DSP3 L-W2.5 DS-T15S TWLNL12-4B 3 N 43 N W TSW44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TWLNR12-4B 3 N 43 N W TSW44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TWLNL16-4D 3 N 43 N W TSW44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TWLNR16-4D WN 43 TSW44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TWLNL20-4D 3 N 43 N W TSW44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S TWLNR20-4D 3 N W TSW44 SO40050I DLM4 DLS4 DSP4 L-W3 DS-T15S 1102 'VEGU ne
