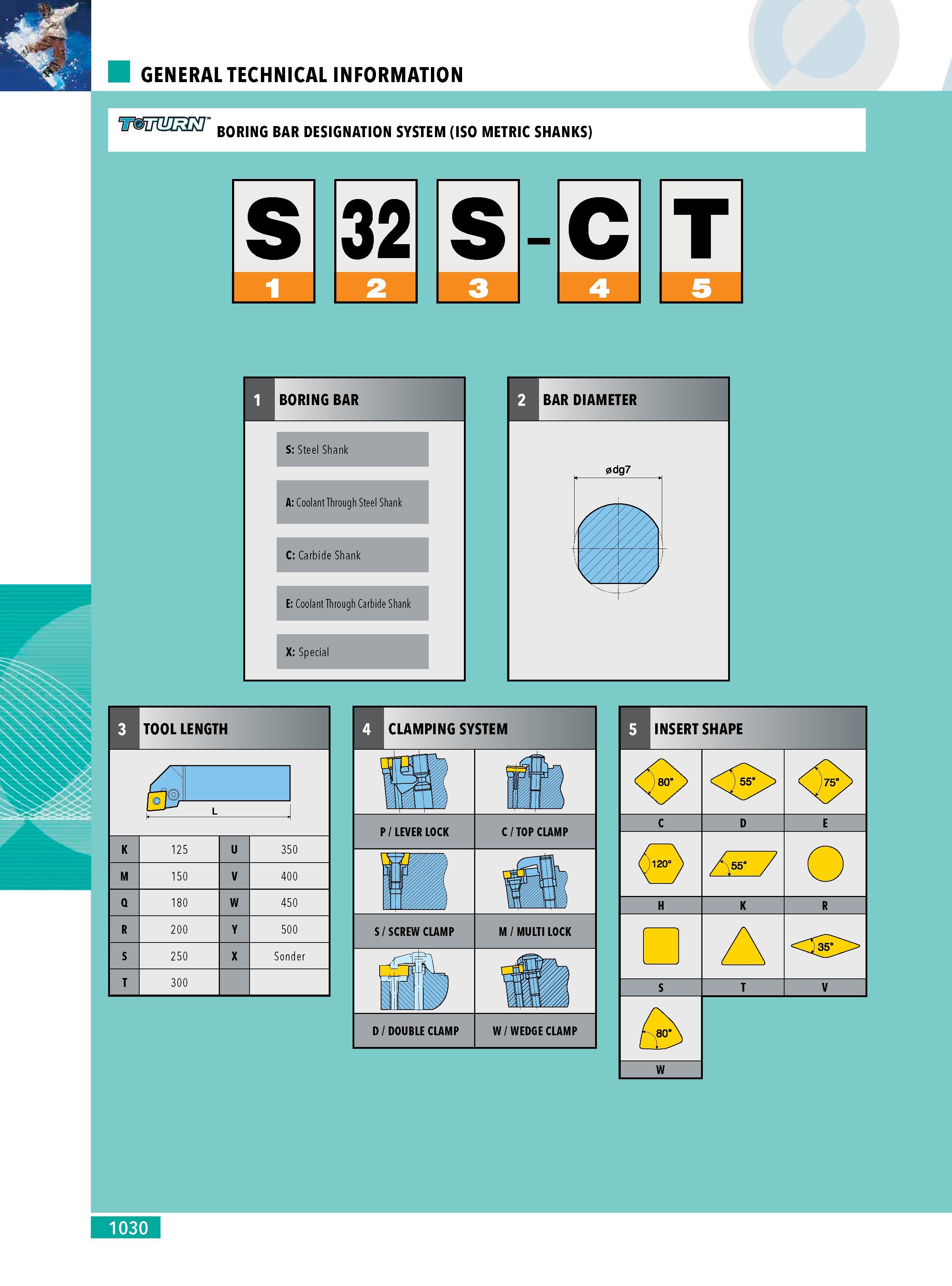

GENERAL TECHNICAL INFORMATION BORING BAR DESIGNATION SYSTEM (ISO METRIC SHANKS) 32 TOOL LENGTH 1 BORING BAR 1 S: Steel Shank 1 1 A: Coolant Through Steel Shank 1 1 C: Carbide Shank 1 1 E: Coolant Through Carbide Shank 1 1 X: Special 1 1 CLAMPING SYSTEM INSERT SHAPE Writs1 L K 125 U 350 M 150 V 400 Q 180 W 450 R 200 Y 500 S 250 X Sonder T 300 P LEVER LOCK S SCREW CLAMP D DOUBLE CLAMP C TOP CLAMP M MULTI LOCK W WEDGE CLAMP 80 120' 80 55 55 75 3 5 C D E H K R S T V W 1030
