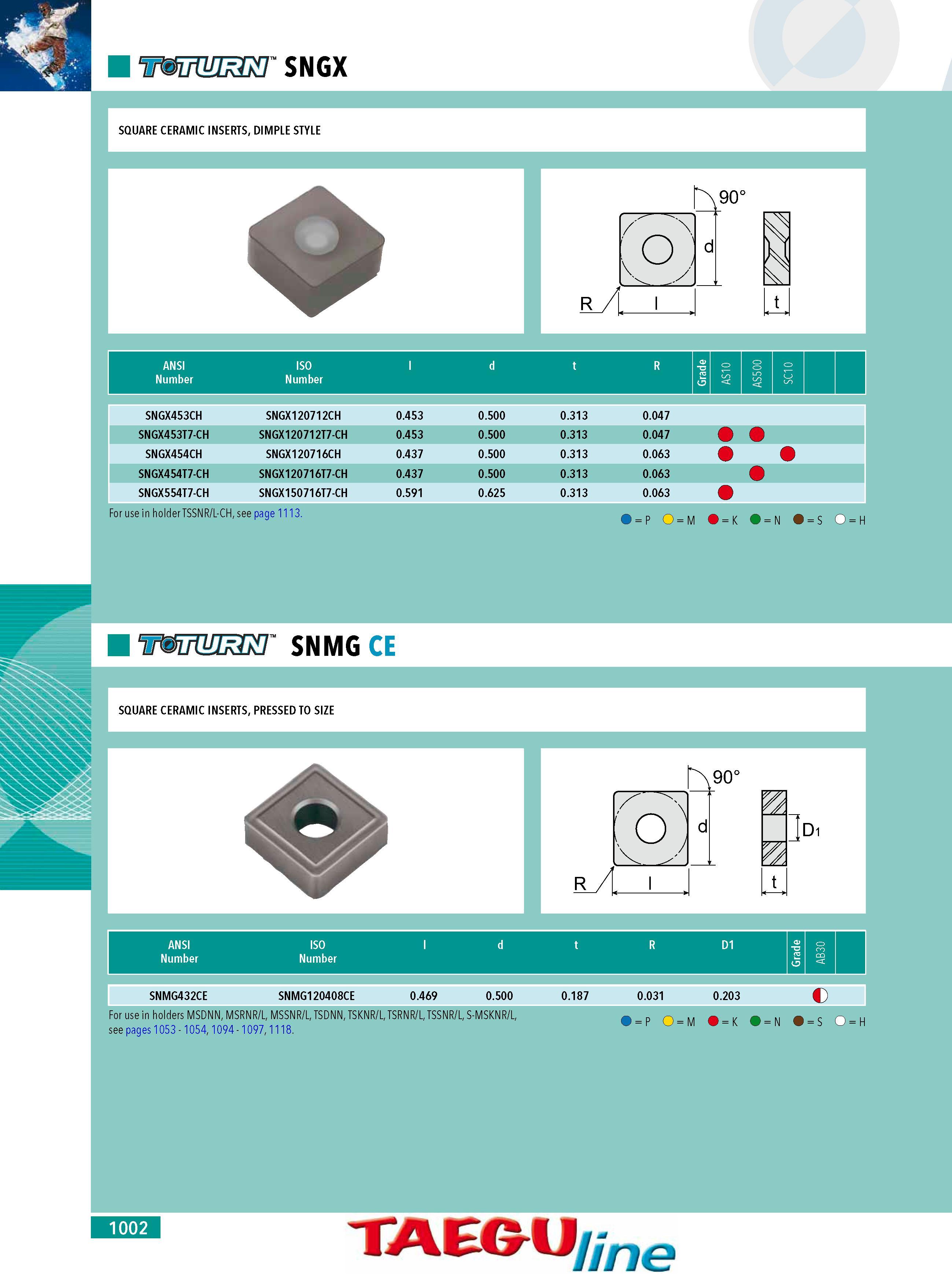

SNGX SQUARE CERAMIC INSERTS DIMPLE STYLE ANSI Number ISO Number SNGX453CH SNGX120712CH 0.453 0.500 0.313 0.047 SNGX453T7-CH SNGX120712T7-CH 0.453 0.500 0.313 0.047 SNGX454CH SNGX120716CH 0.437 0.500 0.313 0.063 SNGX454T7-CH SNGX120716T7-CH 0.437 0.500 0.313 0.063 SNGX554T7-CH SNGX150716T7-CH 0.591 0.625 0.313 0.063 For use in holder TSSNR L-CH see page 1113. P o M K O N O S O H WuW W SNMG CE 90 d V . Jdi Ry i t ANSI ISO l d t RR D1 Grade IT Number Numeer SNMG432CE SNMG120408CE 0.469 0.500 0.187 0.031 0.203 For use in holders MSDNN MSRNR L MSSNR L TSDNN TSKNR L TSRNR L TSSNR L S-MSKNR L see pages 1053 - 1054 1094 - 1097 1118. O P O M O K O N O S O H 1002 TAEGU line
