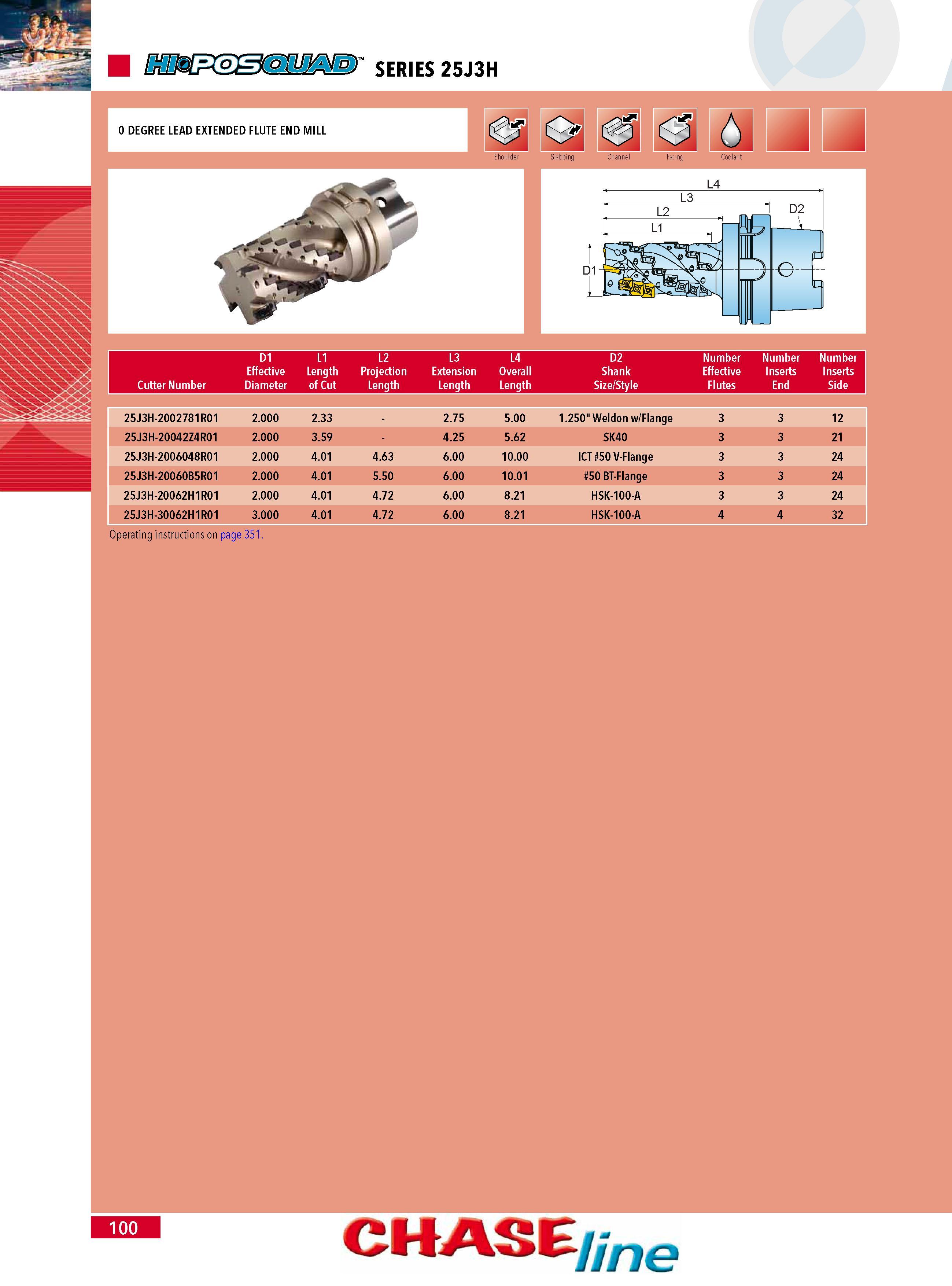

SERIES 25J3H 0 DEGREE LEAD EXTENDED FLUTE END MILL Shoulder Slabbing Channel Facing L1 D1 Cutter Number D1 Effective Diameter L1 Length of Cut L2 Projection Length L3 Extension Length L4 Overall Length D2 Shank Size Style Number Effective Flutes Number Inserts End Number Inserts Side 25J3H-2002781R01 2.000 2.33 2.75 5.00 1.250" Weldon w Flange 3 3 12 25J3H-20042Z4R01 2.000 3.59 4.25 5.62 SK40 3 3 21 25J3H-2006048R01 2.000 4.01 4.63 6.00 10.00 ICT 50 V-Flange 3 3 24 25J3H-20060B5R01 2.000 4.01 5.50 6.00 10.01 50 BT-Flange 3 3 24 25J3H-20062H1R01 2.000 4.01 4.72 6.00 8.21 HSK-100-A 3 3 24 25J3H-30062H1R01 3.000 4.01 4.72 6.00 8.21 HSK-100-A 4 4 32 Operating instructions on page 351. 100 CH VSE7e
