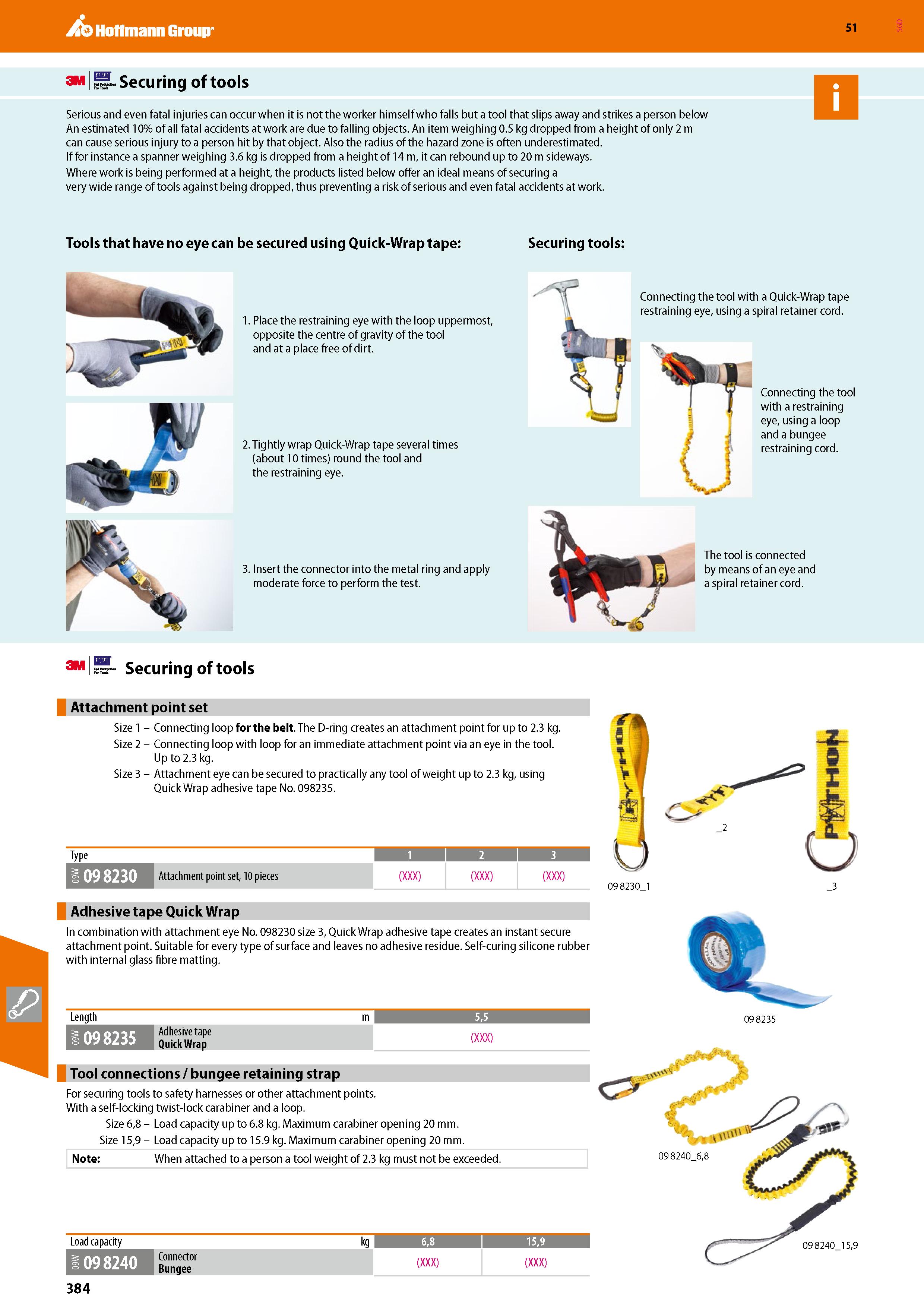

Hoffmann Group 51 3MIH.. Securing of tools Serious and even fatal injuries can occur when it is not the worker himself who falls but a tool that slips away and strikes a person below An estimated 10% of all fatal accidents at work are due to falling objects. An item weighing 0.5 kg dropped from a height of only 2 m can cause serious injury to a person hit by that object. Also the radius of the hazard zone is often underestimated. If for instance a spanner weighing 3.6 kg is dropped from a height of 14 m, it can rebound up to 20 m sideways. Where work is being performed at a height, the products listed below offer an ideal means of securing a very wide range of tools against being dropped, thus preventing a risk of serious and even fatal accidents at work. Tools that have no eye can be secured using Quick-Wrap tape: Securing tools: 1. Place the restraining eye with the loop uppermost, opposite the centre of gravity of the tool and at a place free of dirt. 2. Tightly wrap Quick-Wrap tape several times (about 10 times) round the tool and the restraining eye. 3. Insert the connector into the metal ring and apply moderate force to perform the test. Connecting the tool with a Quick-Wrap tape restraining eye, using a spiral retainer cord. Connecting the tool with a restraining eye, using a loop and a bungee restraining cord. The tool is connected by means of an eye and a spiral retainer cord. 3MII— Securing of tools Attachment point set Size 1 - Connecting loop for the belt. The D-ring creates an attachment point for up to 2.3 kg. Size 2 - Connecting loop with loop for an immediate attachment point via an eye in the tool. Up to 2.3 kg. Size 3 - Attachment eye can be secured to practically any tool of weight up to 2.3 kg, using Quick Wrap adhesive tape No. 098235. Type 1 1 2 3 109 8230 Attachment point set, 10 pieces Adhesive tape Quick Wrap In combination with attachment eye No. 098230 size 3, Quick Wrap adhesive tape creates an instant secure attachment point. Suitable for every type of surface and leaves no adhesive residue. Self-curing silicone rubber with internal glass fibre matting. Length m 5,5 1 109 8235 Adhesive tape Quick Wrap 09 8235 Tool connections / bungee retaining strap For securing tools to safety harnesses or other attachment points. With a self-locking twist-lock carabiner and a loop. Size 6,8 - Load capacity up to 6.8 kg. Maximum carabiner opening 20 mm. Size 15,9 - Load capacity up to 15.9 kg. Maximum carabiner opening 20 mm. Note: When attached to a person a tool weight of 2.3 kg must not be exceeded. Load capacity kg 6,8 15,9 109 8240 Connector Bungee 09 8240 15,9 384 SGD
