150 Каталог HOFFMANN GROUP 2020 Промышленные средства индивидуальной защиты Стр.150

Каталог HOFFMANN GROUP 2020 Средства индивидуальной защиты Стр. 150 0150 Lab2u

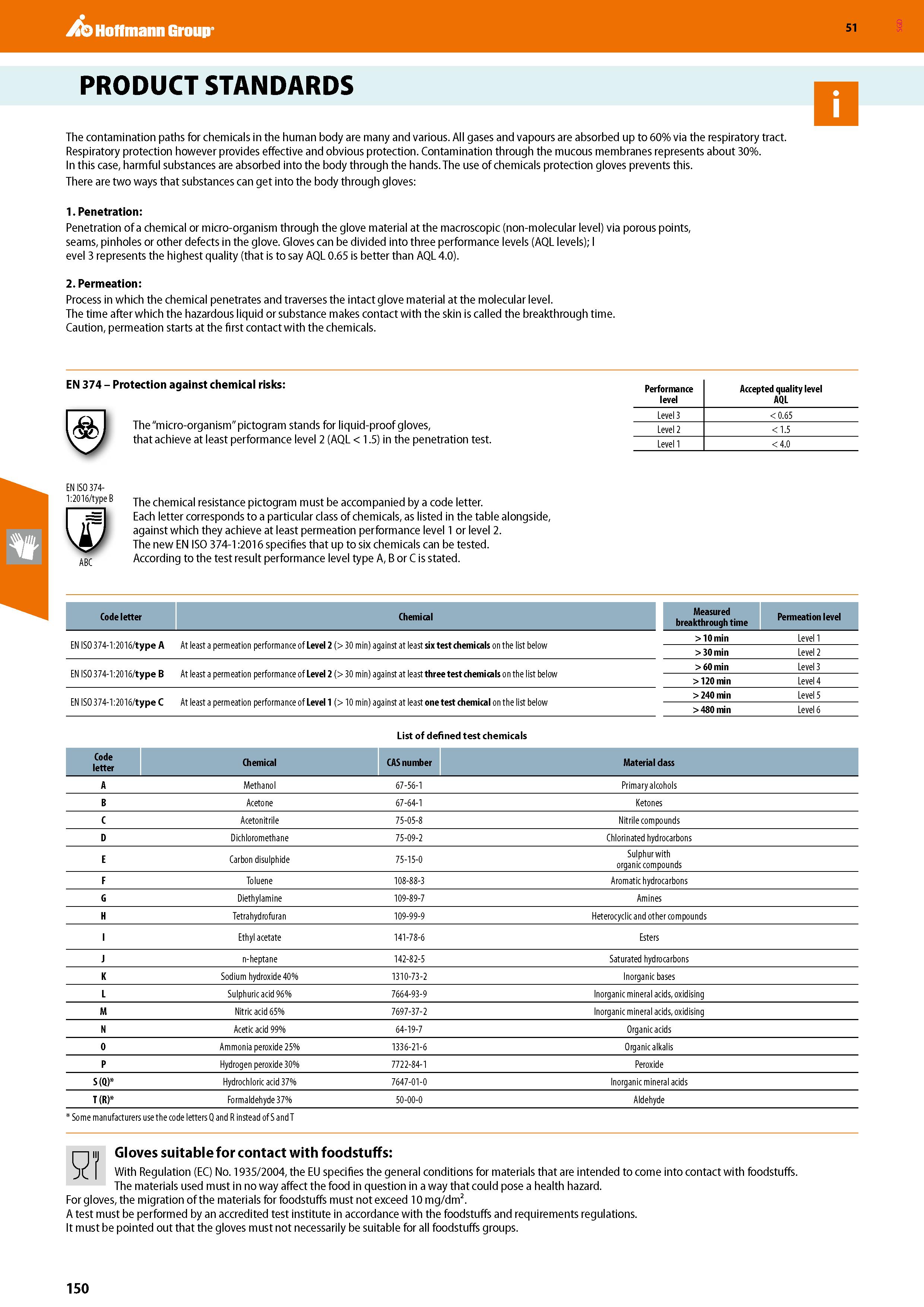

Hoffmann Group 51 PRODUCT STANDARDS The contamination paths for chemicals in the human body are many and various. All gases and vapours are absorbed up to 60% via the respiratory tract. Respiratory protection however provides effective and obvious protection. Contamination through the mucous membranes represents about 30%. In this case, harmful substances are absorbed into the body through the hands. The use of chemicals protection gloves prevents this. There are two ways that substances can get into the body through gloves: 1. Penetration: Penetration of a chemical or micro-organism through the glove material at the macroscopic (non-molecular level) via porous points, seams, pinholes or other defects in the glove. Gloves can be divided into three performance levels (AQL levels); l evel 3 represents the highest quality (that is to say AQL 0.65 is better than AQL 4.0). 2. Permeation: Process in which the chemical penetrates and traverses the intact glove material at the molecular level. The time after which the hazardous liquid or substance makes contact with the skin is called the breakthrough time. Caution, permeation starts at the first contact with the chemicals. EN 374 - Protection against chemical risks: The "micro-organism” pictogram stands for liquid-proof gloves, that achieve at least performance level 2 (AQL 1.5) in the penetration test. Performance Accepted quality level level AQL Level 3 0.65 Level 2 1.5 Level 1 4.0 EN ISO 374-1:2016/type B ABC The chemical resistance pictogram must be accompanied by a code letter. Each letter corresponds to a particular class of chemicals, as listed in the table alongside, against which they achieve at least permeation performance level 1 or level 2. The new EN ISO 374-1:2016 specifies that up to six chemicals can be tested. According to the test result performance level type A, B or C is stated. Code letter Chemical EN ISO 374-1:2016/type A At least a permeation performance of Level 2 (> 30 min) against at least six test chemicals on the list below EN ISO 374-1:2016/type B At least a permeation performance of Level 2 (> 30 min) against at least three test chemicals on the list below EN ISO 374-1:2016/type C At least a permeation performance of Level 1 (> 10 min) against at least one test chemical on the list below Measured breakthrough time Permeation level > 10 min Level 1 > 30 min Level 2 > 60 min Level 3 >120 min Level 4 > 240 min Level 5 > 480 min Level 6 List of defined test chemicals Code letter Chemical CAS number Material class A Methanol 67-56-1 Primary alcohols B Acetone 67-64-1 Ketones C Acetonitrile 75-05-8 Nitrile compounds D Dichloromethane 75-09-2 Chlorinated hydrocarbons E Carbon disulphide 75-15-0 Sulphur with organic compounds F Toluene 108-88-3 Aromatic hydrocarbons G Diethylamine 109-89-7 Amines H Tetrahydrofuran 109-99-9 Heterocyclic and other compounds I Ethyl acetate 141-78-6 Esters J n-heptane 142-82-5 Saturated hydrocarbons K Sodium hydroxide 40% 1310-73-2 Inorganic bases L Sulphuric acid 96% 7664-93-9 Inorganic mineral acids, oxidising M Nitric acid 65% 7697-37-2 Inorganic mineral acids, oxidising N Acetic acid 99% 64-19-7 Organic acids O Ammonia peroxide 25% 1336-21-6 Organic alkalis P Hydrogen peroxide 30% 7722-84-1 Peroxide cy S Hydrochloric acid 37% 7647-01-0 Inorganic mineral acids T (R) Formaldehyde 37% 50-00-0 Aldehyde Some manufacturers use the code letters Q and R instead of S and T r— m Gloves suitable for contact with foodstuffs: With Regulation (EC) No. 1935/2004, the EU specifies the general conditions for materials that are intended to come into contact with foodstuffs. The materials used must in no way affect the food in question in a way that could pose a health hazard. For gloves, the migration of the materials for foodstuffs must not exceed 10 mg/dm2. A test must be performed by an accredited test institute in accordance with the foodstuffs and requirements regulations. It must be pointed out that the gloves must not necessarily be suitable for all foodstuffs groups. 150 SGD
