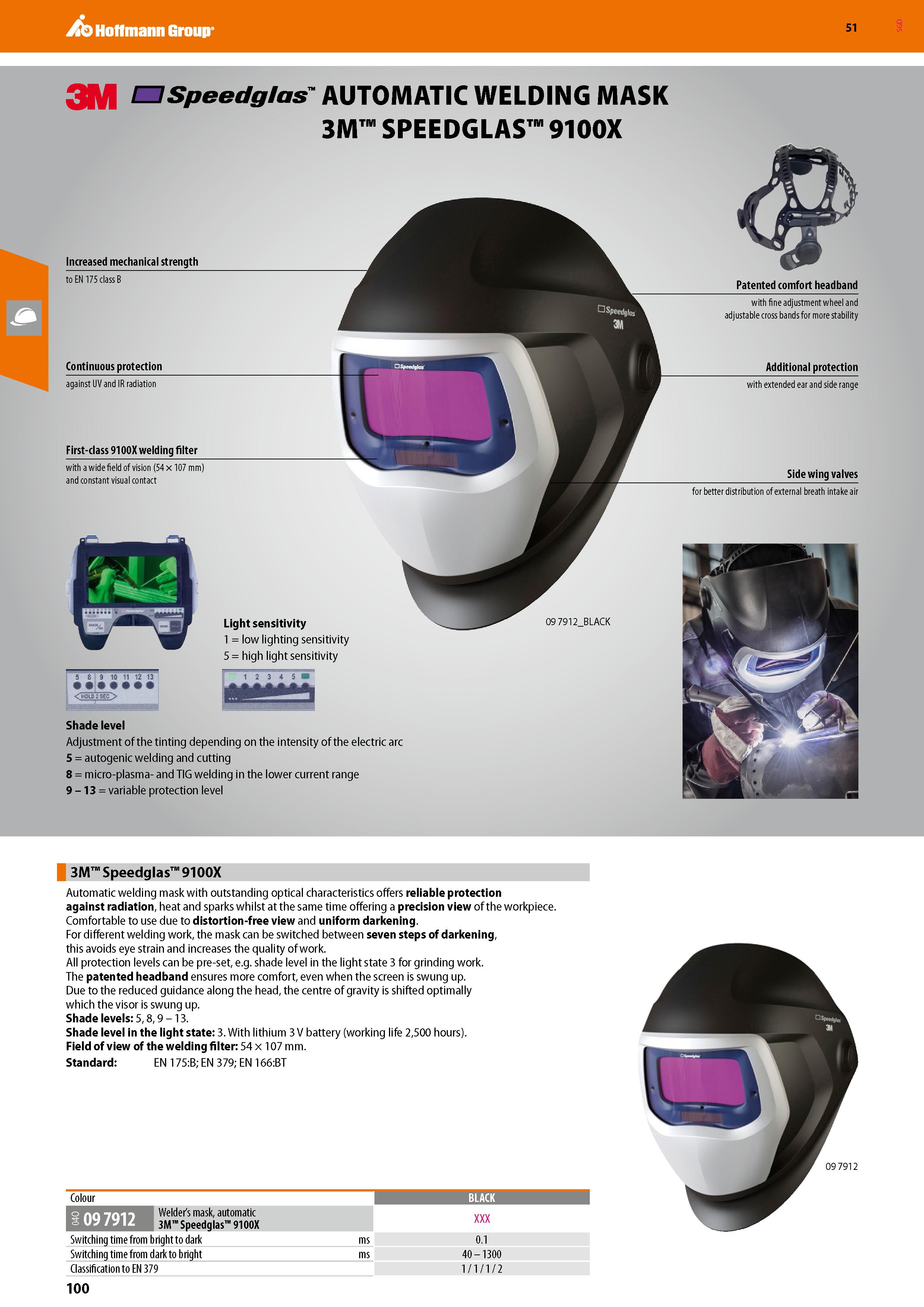

Hoffmann Group 51 3M mSpeedglas' AUTOMATIC WELDING MASK 3M SPEEDGLAS 9100X Increased mechanical strength to EN 175 class B Continuous protection against UV and IR radiation First-class 9100X welding filter with a wide field of vision (54 x 107 mm) and constant visual contact Light sensitivity 1 = low lighting sensitivity 5 = high light sensitivity Patented comfort headband with fine adjustment wheel and adjustable cross bands for more stability Additional protection with extended ear and side range Side wing valves for better distribution of external breath intake air 097912 BLACK 5 8 9 10 11 12 13 Shade level Adjustment of the tinting depending on the intensity of the electric arc 5 = autogenic welding and cutting 8 = micro-plasma- and TIG welding in the lower current range 9 - 13 = variable protection level 3M Speedglas 9100X Automatic welding mask with outstanding optical characteristics offers reliable protection against radiation, heat and sparks whilst at the same time offering a precision view of the workpiece. Comfortable to use due to distortion-free view and uniform darkening. For different welding work, the mask can be switched between seven steps of darkening, this avoids eye strain and increases the quality of work. All protection levels can be pre-set, e.g. shade level in the light state 3 for grinding work. The patented headband ensures more comfort, even when the screen is swung up. Due to the reduced guidance along the head, the centre of gravity is shifted optimally which the visor is swung up. Shade levels: 5, 8, 9 - 13. Shade level in the light state: 3. With lithium 3 V battery (working life 2,500 hours). Field of view of the welding filter: 54 x 107 mm. Standard: EN 175:B; EN 379; EN 166:BT Colour BLACK Welder's mask, automatic El09791 3M Speedglas 9100X Switching time from bright to dark ms 0.1 Switching time from dark to bright ms 40 - 1300 Classification to EN 379 1 / 1 / 1 / 2 100 SGD
