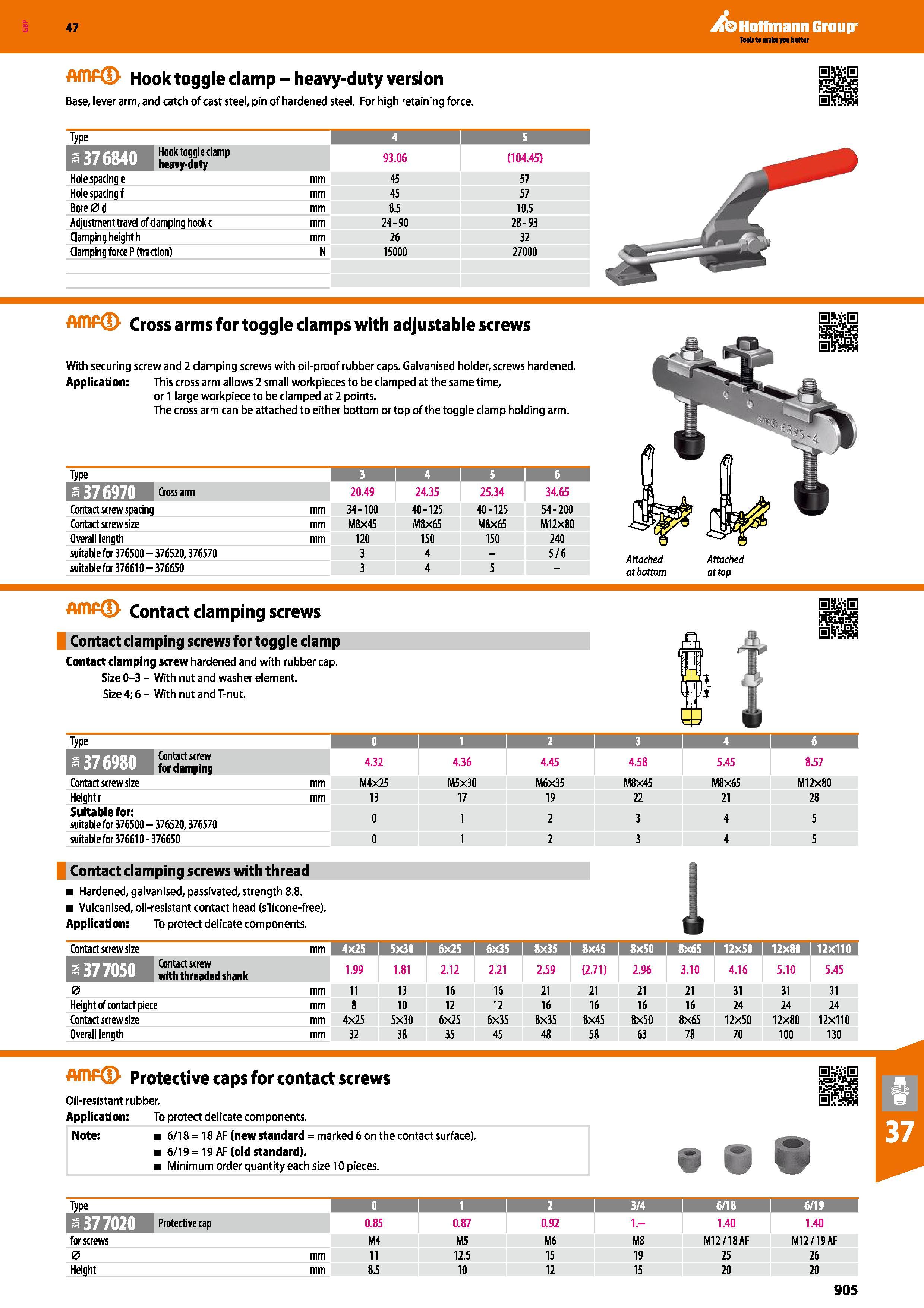

Hoffmann Group 47 Tools to make you better Hook toggle clamp - heavy-duty version Base, lever arm, and catch of cast steel, pin of hardened steel. For high retaining force. Type HHBBHlIii Hook toggle damp IjjEZAaiaMifl heavy-duty 93.06 (104.45) Hole spacing e mm 45 57 Hole spacing f mm 45 57 Bore0d mm 8.5 10.5 Adjustment travel of clamping hook c mm 24-90 28-93 Clamping height h mm 26 32 Clamping force P (traction) N 15000 27000 Cross arms for toggle clamps with adjustable screws With securing screw and 2 clamping screws with oil-proof rubber caps. Galvanised holder, screws hardened. Application: This cross arm allows 2 small workpieces to be clamped at the same time, or 1 large workpiece to be damped at 2 points. The cross arm can be attached to either bottom or top of the toggle clamp holding arm. Type 1 3 1 4 1 5 1 6 Is 376970 20.49 24.35 25.34 34.65 Contact screw spacing mm 34-100 40-125 40-125 54-200 Contact screw size mm M8x45 M8x65 M8x65 M12X80 Overall length mm 120 150 150 240 suitable for 376500 - 376520,376570 3 4 - 5/6 suitable for 376610 - 376650 3 4 5 - Attached at top Contact clamping screws Contact clamping screws for toggle clamp Contact clamping screw hardened and with rubber cap. Size 0-3 - With nut and washer element. Size 4; 6 - With nut and T-nut. t i 0 I 1 1 2 1 3 1 4 6 1 Contact screw for damp ng 4.32 4.36 4.45 4.58 5.45 8.57 Contact screw size mm M4X25 M5X30 M6X35 M8x45 M8X65 M12X80 Height r mm 13 17 19 22 21 28 Suitable for: suitable for 376500 - 376520,376570 0 1 2 3 4 5 suitablefor 376610-376650 0 1 2 3 4 5 Contact clamping screws with thread Hardened, galvanised, passivated, strength 8.8. Vulcanised, oil-resistant contact head (silicone-free). Application: To protect delicate components. 1 Contact screw size mm 4X25 I 5x30 1 6x25 1 6x35 1 8x35 1 8x45 1 8x50 1 8x65 1 12x50 ISCTTTTV Contact screw jjEZ£4aMafl with threaded shank 1.99 1.81 2.12 2.21 2.59 (2.71) 2.96 3.10 4.16 5.10 5.45 0 mm 11 13 16 16 21 21 21 21 31 31 31 Height of contact piece mm 8 10 12 12 16 16 16 16 24 24 24 Contact screw size mm 4X25 5x30 6x25 6x35 8x35 8x45 8x50 8x65 12X50 12x80 12X110 Overall length mm 32 38 35 45 48 58 63 78 70 100 130 Protective caps for contact screws Oil-resistant rubber. Application: To protect delicate components. Note: 6/18 = 18 AF (new standard = marked 6 on the contact surface). 6/19 = 19 AF (old standard). m W Minimum order quantity each size 10 pieces. Type 0 I 1 1 2 1 3/4 : 6/18 6/19 I a 37 7020 0.85 0.87 0.92 1.- 1.40 1.40 for screws M4 M5 M6 M8 M12/18AF M12/19AF 0 mm 11 12.5 15 19 25 26 Height mm 8.5 10 12 15 20 20 905
