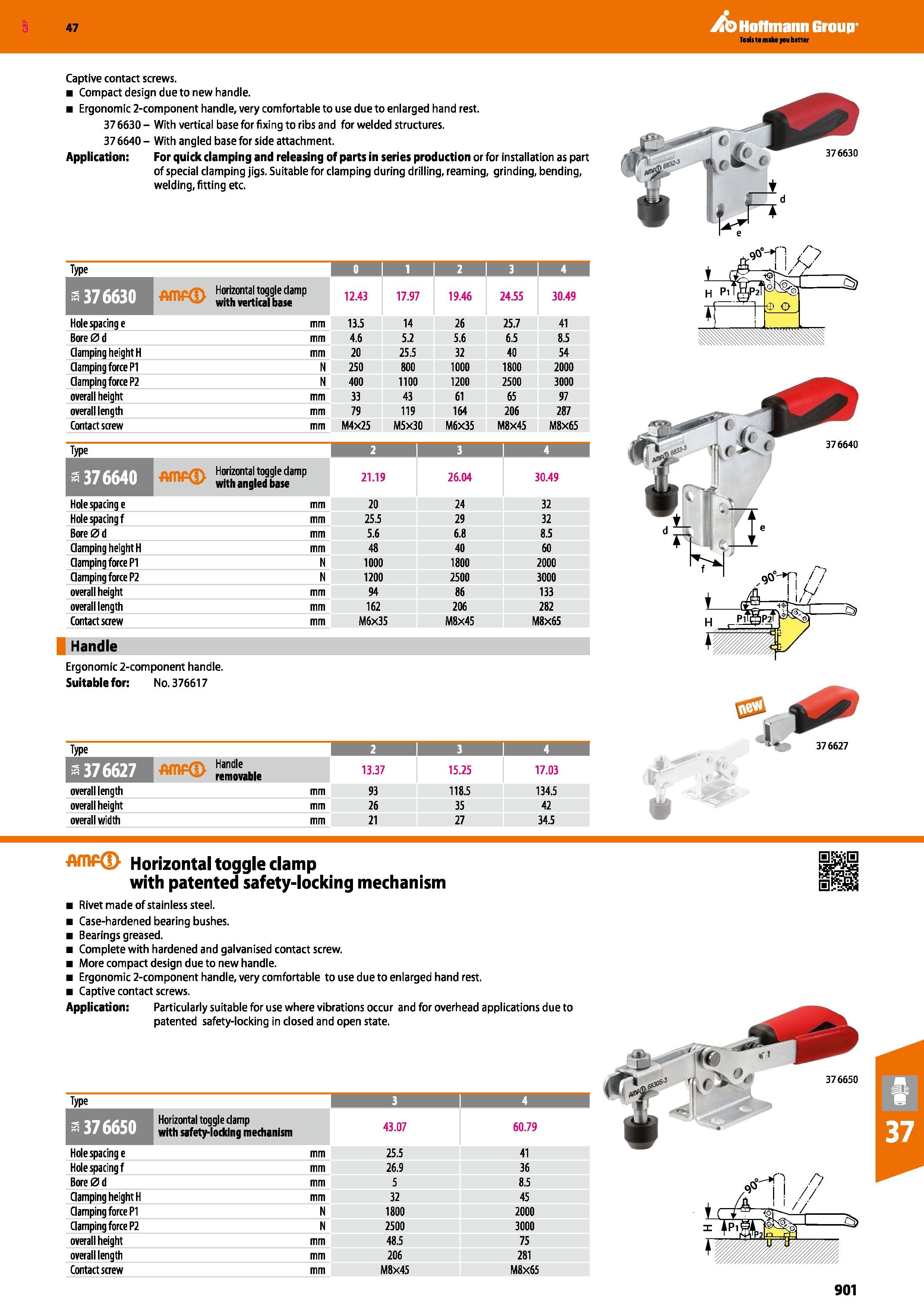

Hoffmann Group 47 Captive contact screws. Compact design due to new handle. Ergonomic 2-component handle, very comfortable to use due to enlarged hand rest. 37 6630 - With vertical base for fixing to ribs and for welded structures. 37 6640 - With angled base for side attachment. Application: For quick clamping and releasing of parts in series production or for installation as part of special clamping jigs. Suitable for clamping during drilling, reaming, grinding, bending, welding, fitting etc. Type o 1 2 I 3 I 4 Amp Horizontal toggle damp with vertical base 2 376630 12.43 17.97 19.46 24.55 30.49 Hole spacing e mm 13.5 14 26 25.7 41 Bore0d mm 4.6 5.2 5.6 6.5 8.5 Clamping height H mm 20 25.5 32 40 54 Clamping force P1 N 250 800 1000 1800 2000 Clamping force P2 N 400 1100 1200 2500 3000 overall height mm 33 43 61 65 97 overall length mm 79 119 164 206 287 Contact screw mm M4X25 M5X30 M6X35 M8X45 M8X65 Type 2 I 3 I 4 a 376640 Amp< > Horizontal toggle clamp with angled base 21.19 26.04 30.49 Hole spacing e mm 20 24 32 Hole spacing f mm 25.5 29 32 Bore0d mm 5.6 6.8 8.5 Clamping height H mm 48 40 60 Clamping force PI N 1000 1800 2000 Clamping force P2 N 1200 2500 3000 overall height mm 94 86 133 overall length mm 162 206 282 Contact screw mm M6x35 M8x45 M8x65 Handle Ergonomic 2-component handle. Suitable for: No. 376617 376630 j '/V Type 2 I 3 I 4 a 37 6627 1 juncin Handle removable 13.37 15.25 17.03 overall length mm 93 118.5 134.5 overall height mm 26 35 42 overall width mm 21 27 34.5 Horizontal toggle clamp with patented safety-locking mechanism Rivet made of stainless steel. Case-hardened bearing bushes. Bearings greased. Complete with hardened and galvanised contact screw. More compact design due to new handle. Ergonomic 2-component handle, very comfortable to use due to enlarged hand rest. Captive contact screws. Application: Particularly suitable for use where vibrations occur and for overhead applications due to patented safety-locking in closed and open state. Type 3 I 4 a 37 6650 Horizontal toggle damp with safety-locking mechanism 43.07 60.79 Hole spacing e mm 25.5 41 Hole spacing f mm 26.9 36 Bore0d mm 5 8.5 Clamping height H mm 32 45 Clamping force PI N 1800 2000 Clamping force P2 N 2500 3000 overall height mm 48.5 75 overall length mm 206 281 Contact screw mm M8X45 M8x65 376627 901
