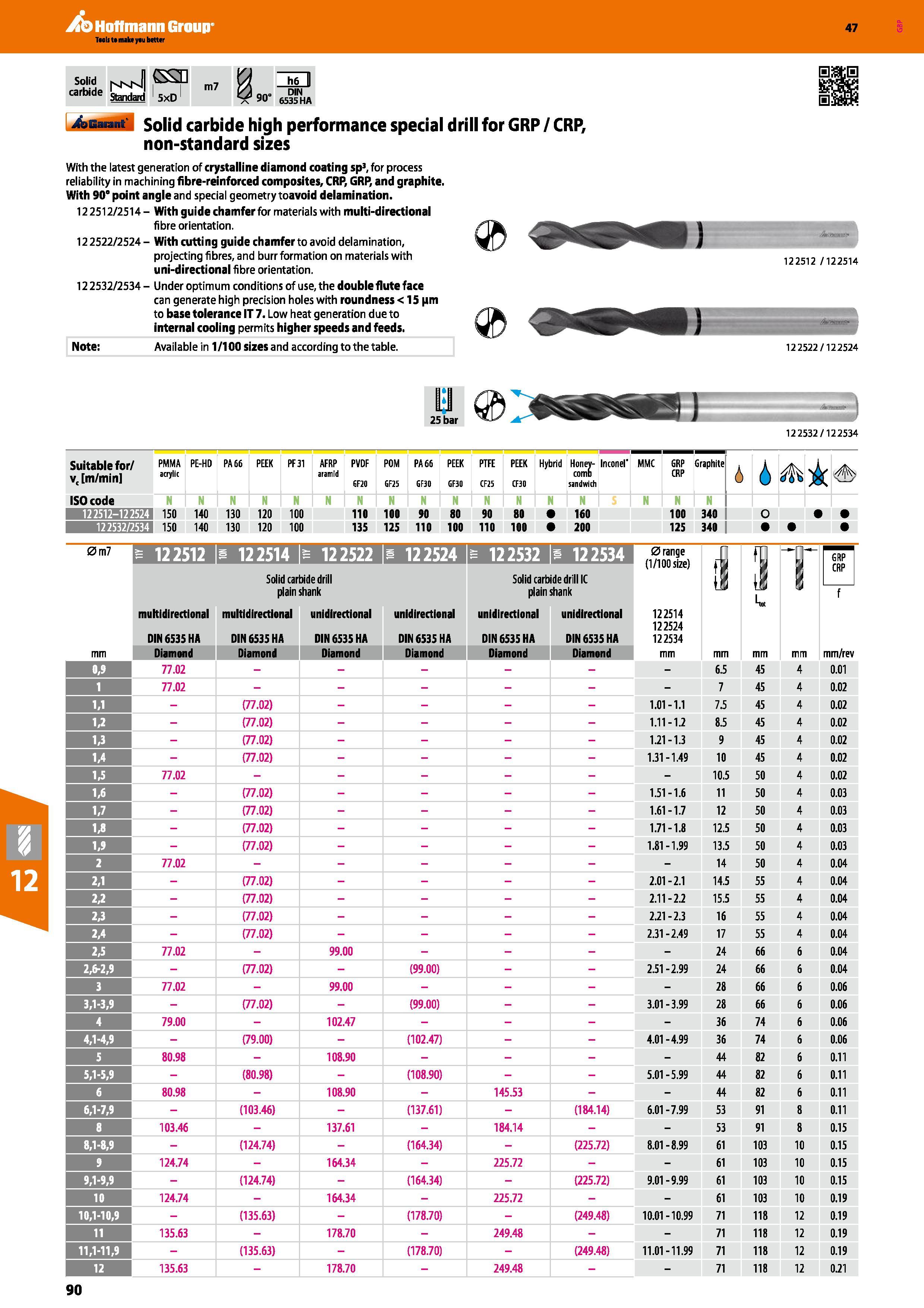

Hoffmann Group 47 4sbu M Solid carbide high performance special drill for GRP / CRP, non-standard sizes With the latest generation of crystalline diamond coating sp3, for process reliability in machining fibre-reinforced composites, CRP, GRP, and graphite. With 90° point angle and special geometry toavoid delamination. 122512/2514 - With guide chamfer for materials with multi-directional fibre orientation. 12 2522/2524 - With cutti ng guide chamfer to avoid delamination, projecting fibres, and burr formation on materials with uni-directional fibre orientation. 12 2532/2534 - Under optimum conditions of use, the double flute face can generate high precision holes with roundness < 15 im to base tolerance IT 7. Low heat generation due to internal cooling permits higher speeds and feeds. Note: Availablein 1/100 sizesand according to the table. B 25 bar 12 2532/122534 Suitable for/ v, m/min PMMA acrylic PE-HD PA 66 PEEK PF31 AFRP aramid PVDF F20 POM GF25 PA 66 GF30 PEEK GF30 PTFE CF25 PEEK CF30 Hybrid Honey- comb sandwich Inconel' MMC GRP CRP Graphite 4 I ISO code nri hri rri rri N hri N N N N 1 rri N rri rri rri rri N 122512-122524 150 140 130 120 100 110 100 90 80 90 80 160 100 340 O 122532/2534 150 140 130 120 100 135 125 110 100 110 100 200 125 340 0m7 £ 122512 s 122514 £ 122522 s 122524 £ 12 2532 t 122534 0 range (1/100 size) it m GRP Solid carbide drill Solid carbide drill IC 3 , a CRP plain shank plain shank LEW f multidirectional DIN 6535 HA multidirectional DIN 6535 HA unidirectional DIN 6535 HA unidirectional DIN 6535 HA unidirectional DIN 6535 HA unidirectional DIN 6535 HA 122514 122524 122534 mm Diamond Diamond Diamond Diamond Diamond Diamond mm mm/rev 0,9 77.02 6.5 45 4 0.01 1 77.02 7 45 4 0.02 1,1 - (77.02) 1.01-1.1 7.5 45 4 0.02 1,2 - (77.02) 1.11-1.2 8.5 45 4 0.02 1,3 - (77.02) 1.21-1.3 9 45 4 0.02 1,4 - (77.02) 1.31-1.49 10 45 4 0.02 1,5 77.02 10.5 50 4 0.02 1,6 - (77.02) 1.51-1.6 11 50 4 0.03 1,7 - (77.02) 1.61-1.7 12 50 4 0.03 1,8 - (77.02) 1.71-1.8 12.5 50 4 0.03 1,9 - (77.02) 1.81-1.99 13.5 50 4 0.03 2 77.02 14 50 4 0.04 2,1 - (77.02) 2.01-2.1 14.5 55 4 0.04 2,2 - (77.02) 2.11-2.2 15.5 55 4 0.04 2,3 - (77.02) 2.21-2.3 16 55 4 0.04 2,4 - (77.02) 2.31-2.49 17 55 4 0.04 2,5 77.02 - 99.00 24 66 6 0.04 2,6-2,9 - (77.02) - (99.00) 2.51-2.99 24 66 6 0.04 3 77.02 - 99.00 28 66 6 0.06 3,1-3,9 - (77.02) - (99.00) 3.01-3.99 28 66 6 0.06 4 79.00 - 102.47 36 74 6 0.06 4,1-4,9 - (79.00) - (102.47) 4.01-4.99 36 74 6 0.06 5 80.98 - 108.90 44 82 6 0.11 5,1-5,9 - (80.98) - (108.90) 5.01-5.99 44 82 6 0.11 6 80.98 - 108.90 - 145.53 44 82 6 0.11 6,1-7,9 - (103.46) - (137.61) - (184.14) 6.01-7.99 53 91 8 0.11 8 103.46 - 137.61 - 184.14 53 91 8 0.15 8,1-8,9 - (124.74) - (164.34) - (225.72) 8.01-8.99 61 103 10 0.15 9 124.74 - 164.34 - 225.72 61 103 10 0.15 9,1-9,9 - (124.74) - (164.34) - (225.72) 9.01-9.99 61 103 10 0.15 10 124.74 - 164.34 - 225.72 61 103 10 0.19 10,1-10,9 - (135.63) - (178.70) - (249.48) 10.01-10.99 71 118 12 0.19 11 135.63 - 178.70 - 249.48 71 118 12 0.19 11,1-11,9 - (135.63) - (178.70) - (249.48) 11.01-11.99 71 118 12 0.19 12 135.63 - 178.70 - 249.48 71 118 12 0.21 90
