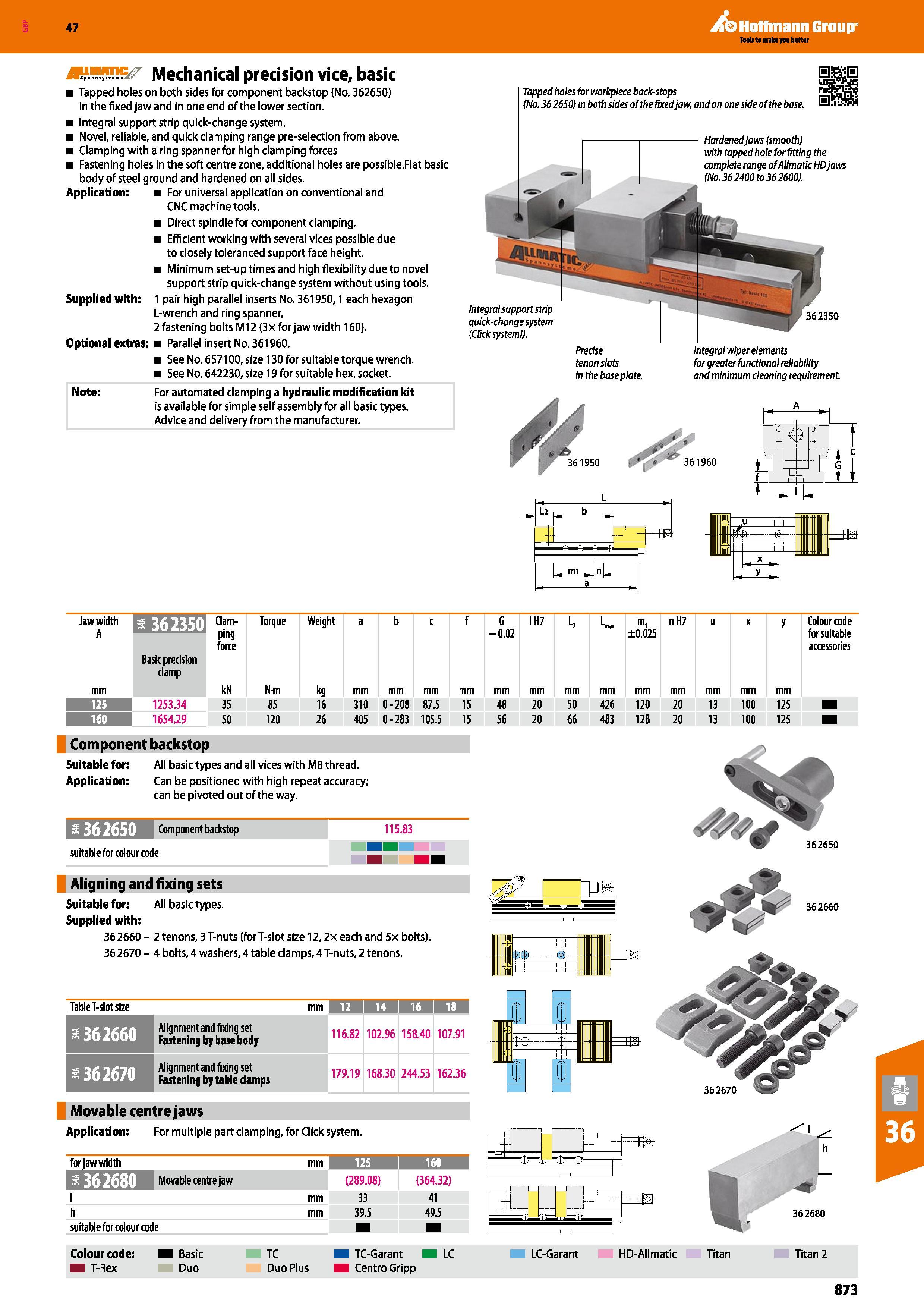

Hoffmann Group 47 Mechanical precision vice, basic Tapped holes on both sides for component backstop (No. 362650) in the fixed jaw and in one end of the lower section. Integral support strip quick-change system. Novel, reliable, and quick clamping range pre-selection from above. Clamping with a ring spanner for high clamping forces Fastening holes in the soft centre zone, additional holes are possible.Flat basic body of steel ground and hardened on all sides. Application: For universal application on conventional and CNC machine tools. Direct spindle for component clamping. Efficient working with several vices possible due to closely toleranced support face height. Minimum set-up times and high flexibility due to novel support strip quick-change system without using tools. Supplied with: 1 pair high parallel inserts No. 361950,1 each hexagon L-wrench and ring spanner, 2 fastening bolts M12 (3x for jaw width 160). Optional extras: Parallel insert No. 361960. See No. 657100, size 130 for suitable torque wrench. See No. 642230, size 19 for suitable hex. socket. Note: For automated clamping a hydraulic modification kit is available for simple self assembly for all basic types. Advice and delivery from the manufacturer. Tools to make you better Tapped holes for workpiece backstops , (No. 36 2650) in both sides of the fixedjaw, and on one side of the base. Precise Integral wiper elements tenon slots for greater functional reliability in the baseplate. and minimum cleaning requirement. Jaw width A 362350 Clam- Torque Weight a b c f G -0.02 IH7 Lb m, ±0.025 nH7 u X y Colour code for suitable accessories Basic precision clamp ping force mm kN N-m kg mm 125 1253.34 35 85 16 310 0-208 87.5 15 48 20 50 426 120 20 13 100 125 160 1654.29 50 120 26 405 0-283 105.5 15 56 20 66 483 128 20 13 100 125 Component backstop Suitable for: All basic types and all vices with M8 thread. Application: Can be positioned with high repeat accuracy; can be pivoted out of the way. Component backstop 115.83 suitable for colour code 1 1 II Aligning and fixing sets Suitable for: All basic types. Supplied with: 36 2660 - 2 tenons, 3 T-nuts (for T-slot size 12,2x each and 5x bolts). 36 2670 - 4 bolts, 4 washers, 4 table clamps, 4 T-nuts, 2 tenons. Table T-slot size 36266 3626 D a Alignment and fixing set Fastening by base body Alignment and fixing set Fastening by table damps 116.82 102.96 158.40 107.91 179.19 168.30 244.53 162.36 Movable centre jaws Application: For multiple part clamping, for Click system. for jaw width a 362680 Movable centre jaw 362660 h suitable for colour code mm 33 41 lj 1 U L j mm 39.5 49.5 Colour code: Basic TC TC-Garant LC LC-Garant HD-Allmatic Titan Titan 2 T-Rex Duo Duo Plus Centro Gripp Hardenedjaws (smooth) with tapped hole for fitting the complete range ofAllmatic HD jaws (No. 36 2400 to 36 2600). Integral support strip quick-change system (Click system ). 362350 362650 873
