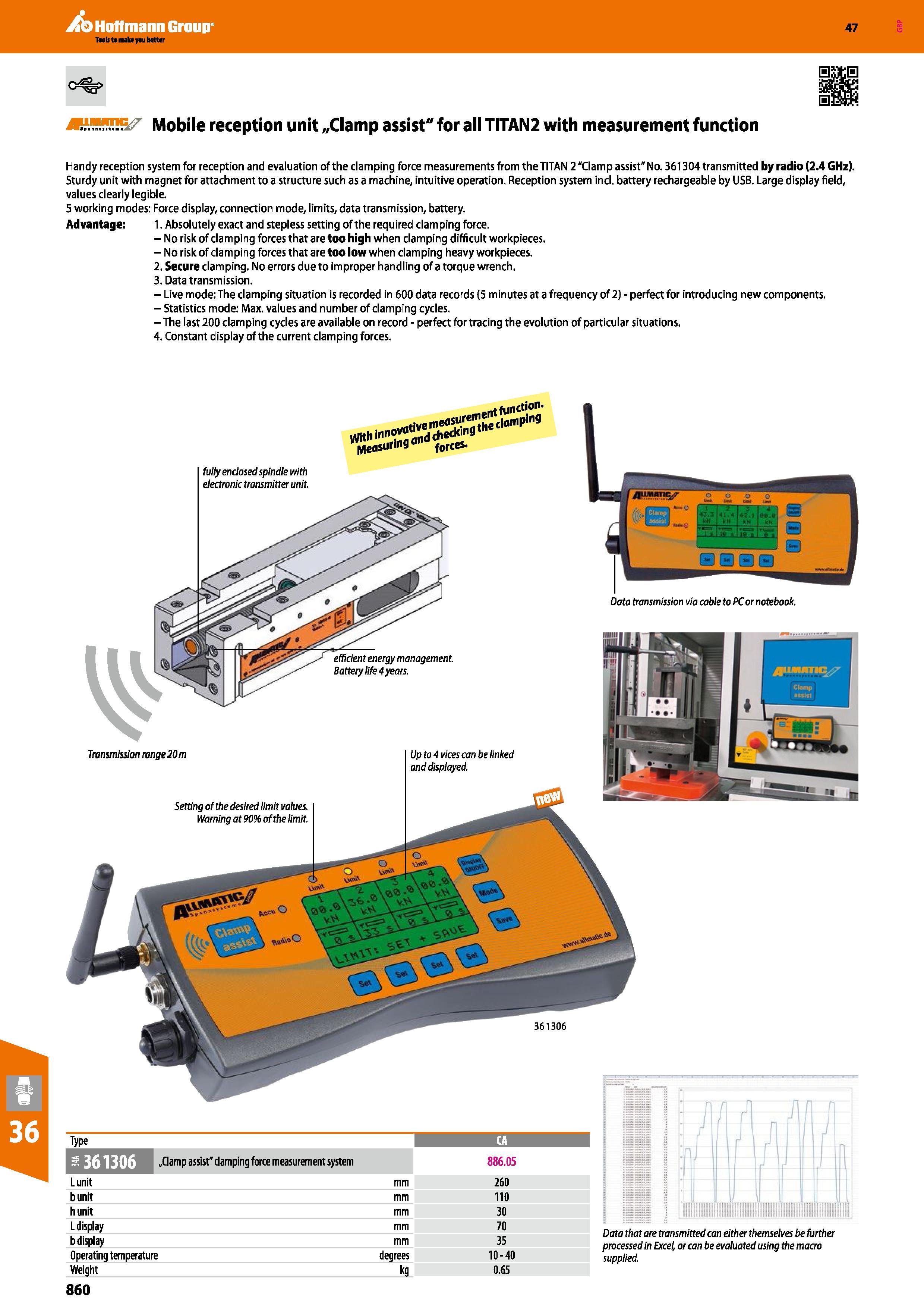

Hoffmann Group 47 Mobile reception unit „Clamp assist" for all TITAN2 with measurement function Handy reception system for reception and evaluation of the clamping force measurements from the TITAN 2 "Clamp assist" No. 361304 transmitted by radio (2.4 GHz). Sturdy unit with magnet for attachment to a structure such as a machine, intuitive operation. Reception system ind. battery rechargeable by USB. Large display field, values clearly legible. 5 working modes: Force display, connection mode, limits, data transmission, battery. Advantage: 1. Absolutely exact and stepless setting of the required clamping force. - No risk of clamping forces that are too high when clamping difficult workpieces. - No risk of da m ping forces that are too low when clamping heavy workpieces. 2. Secure clamping. No errors due to improper handling of a torque wrench. 3. Data transmission. - Live mode: The clamping situation is recorded in 600 data records (5 minutes at a frequency of 2) - perfect for introducing new components. -Statistics mode: Max. values and number of clamping cycles. - The last 200 clamping cycles are available on record - perfect for tracing the evolution of particular situations. 4. Constant display of the current clamping forces. sssssr" fully enclosed spindle with electronic transmitter unit Data transmission via cable to PC or notebook. efficient energy managemen f. Battery life 4 years. Transmission range 20 m Up to 4 vices can be linked and displayed. Setting of the desired limit values. Warning at 90% of the limit. 361306 Type CA 1 „Clamp assist" clamping force measurement system 886.05 Lunit mm 260 bunit mm 110 h unit mm 30 L display mm 70 b display mm 35 Operating temperature degrees 10-40 Weight kg 0.65 I /Mi I 1 J D mini 11.1 J I Data that are transmitted can either themselves be further processed in Excel or can be evaluated using the macro supplied. 860
