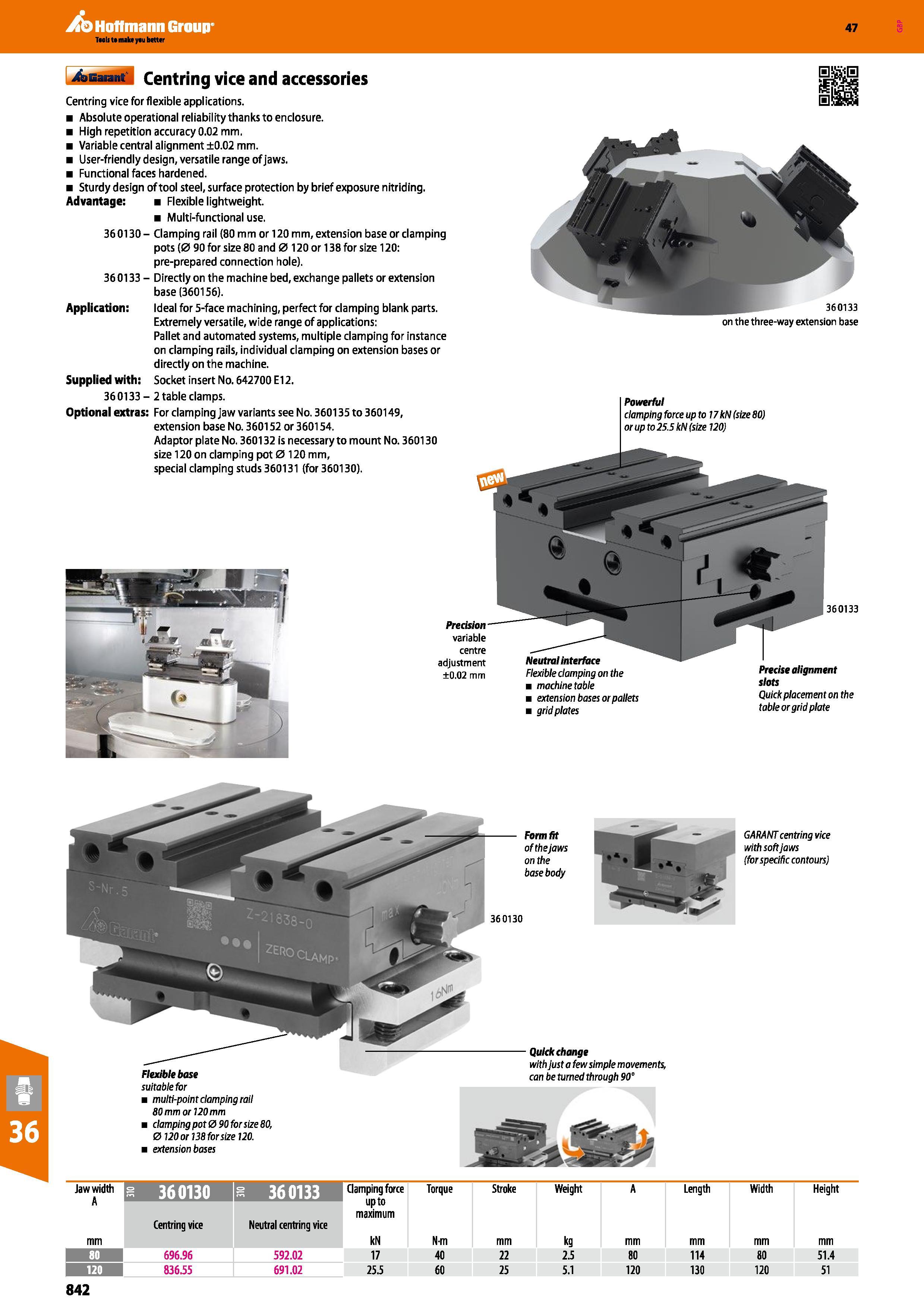

Hoffmann Group 47 4anu M Centring vice and accessories Centring vice for flexible applications. Absolute operational reliability thanks to enclosure. High repetition accuracy 0.02 mm. Variable central alignment ±0.02 mm. User-friendly design, versatile range of jaws. Functional faces hardened. Sturdy design of tool steel, surface protection by brief exposure nitriding. Advantage: Flexible lightweight. Multi-functional use. 360130- Clamping rail (80 mm or 120 mm, extension base or clamping pots (0 90 for size 80 and 0 120 or 138 for size 120: pre-prepared connection hole). 360133 - Directly on the machine bed, exchange pallets or extension base (360156). Application: Ideal for 5-face machining, perfect for clamping blank parts. Extremely versatile, wide range of applications: Pallet and automated systems, multiple clamping for instance on clamping rails, individual clamping on extension bases or directly on the machine. Supplied with: Socket insert No. 642700 E12. 36 0133 - 2 table clamps. Optional extras: For clamping jaw variants see No. 360135 to 360149, extension base No. 360152 or 360154. Adaptor plate No. 360132 is necessary to mount No. 360130 size 120 on clamping pot 0 120 mm, special clamping studs 360131 (for 360130). Precise alignment slots Quick placement on the table or grid plate Neutral interface Flexible clamping on the m machine table m extension bases or pallets m grid plates 360133 on the three-way extension base Powerful clamping force up to 17kN(size80) or up to 25.5 kN (size 120) variable centre adjustment ±0.02 mm Form fit ofthejaws on the base body 360130 Flexible base suitable for m multi-point clamping rail 80 mm or 120 mm m clamping pot 090 for size 80, 0120 or 138 for size 120. extension bases Quick change with just a few simple movements, can be turned through 90° GARANT centring vice with soft jaws (forspecific contours) Jaw width A 360130 s 360133 Clamping force up to maximum kN Torque Stroke Weight A Length Width Height Centring vice Neutral centring vice N-m mm kg mm 696.96 592.02 17 40 22 2.5 80 114 80 51.4 836.55 691.02 25.5 60 25 5.1 120 130 120 51 842
