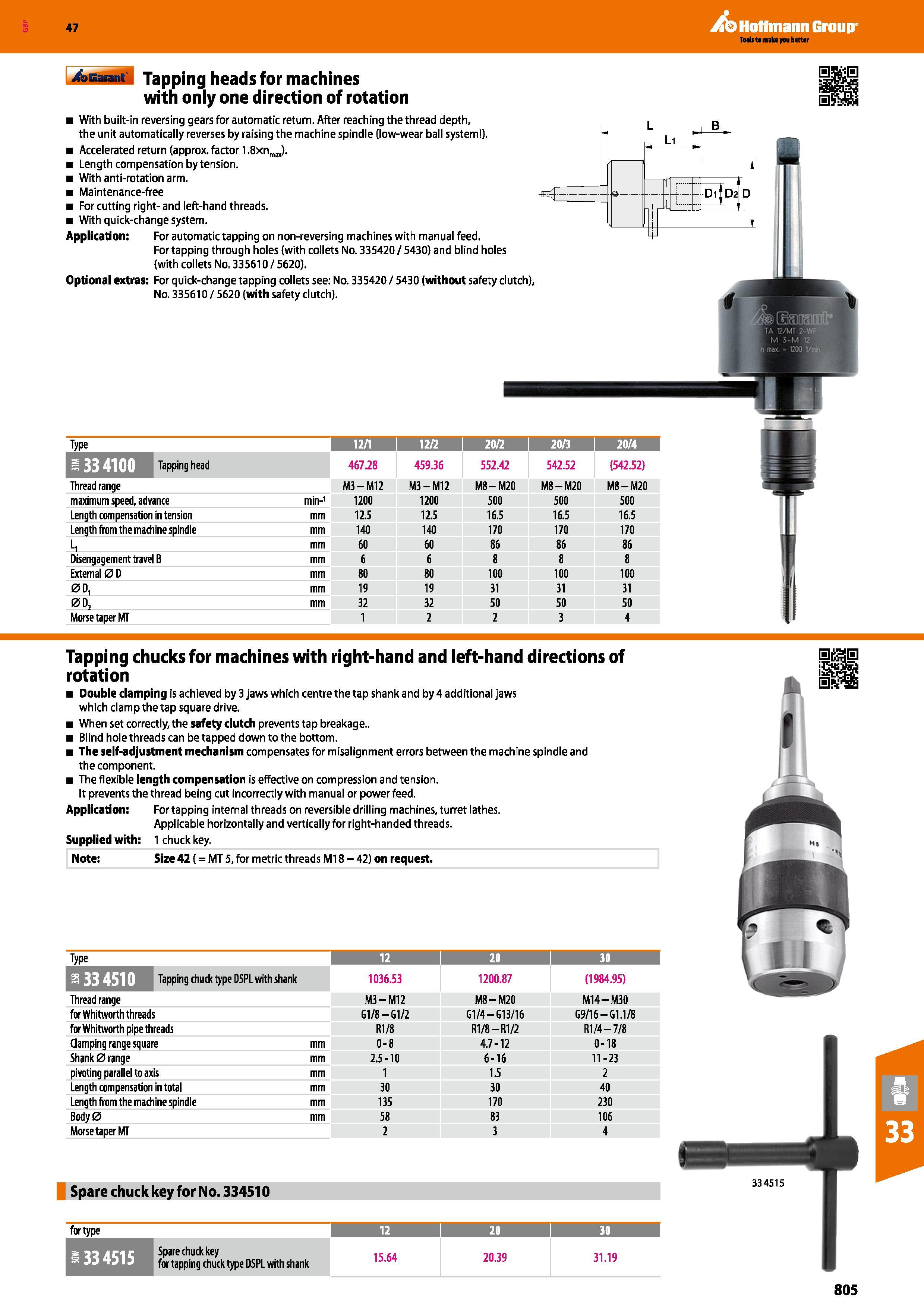

Hoffmann Group 47 i&Eaniit' Tapping heads for machines with only one direction of rotation With built-in reversing gears for automatic return. After reaching the thread depth, the unit automatically reverses by raising the machine spindle (low-wear ball system ). Accelerated return (approx. factor 1.8xnm„). Length compensation by tension. With anti-rotation arm. Maintenance-free For cutting right- and left-hand threads. With quick-change system. Application: For automatic tapping on non-reversing machines with manual feed. For tapping through holes (with collets No. 335420 / 5430) and blind holes (with collets No. 335610 / 5620). Optional extras: For quick-change tapping collets see: No. 335420 / 5430 (without safety dutch) No. 335610 / 5620 (with safety clutch). Type 1 12/1 12/2 i 20/2 i 20/3 i 20/4 1 a 33 4100 467.28 459.36 552.42 542.52 (542.52) Thread range M3-M12 M3-M12 M8-M20 M8-M20 M8-M20 maximum speed, advance min-1 1200 1200 500 500 500 Length compensation in tension mm 12.5 12.5 16.5 16.5 16.5 Length from the machine spindle mm 140 140 170 170 170 L, mm 60 60 86 86 86 Disengagement travel B mm 6 6 8 8 8 External 0 D mm 80 80 100 100 100 0D, mm 19 19 31 31 31 0D2 mm 32 32 50 50 50 Morse taper MT 1 2 2 3 4 : Tapping chucks for machines with right-hand and left-hand directions of rotation Double clamping is achieved by 3 jaws which centre the tap shank and by 4 additional jaws which clamp the tap square drive. When set correctly, the safety clutch prevents tap breakage.. Blind hole threads can be tapped down to the bottom. The self-adjustment mechanism compensates for misalignment errors between the machine spindle and the component. The flexible length compensation is effective on compression and tension. It prevents the thread being cut incorrectly with manual or power feed. Application: For tapping internal threads on reversible drilling machines, turret lathes. Applicable horizontally and vertically for right-handed threads. Supplied with: 1 chuck key. Note: Size 42 (= MT 5, for metric threads Ml 8 - 42) on request. Type 12 I 20 30 Tapping chuck type D5PL with shank 1036.53 1200.87 (1984.95) Thread range M3-M12 M8-M20 M14-M30 for Whitworth threads G1/8-G1/2 G1/4 G13/16 G9/16 G1.1/8 for Whitworth pipe threads R1/8 R1/8-R1/2 R1/4-7/8 Clamping range square mm 0-8 4.7-12 0-18 Shank 0 range mm 2.5-10 6-16 11-23 pivoting parallel to axis mm 1 1.5 2 Length compensation in total mm 30 30 40 Length from the machine spindle mm 135 170 230 Body0 mm 58 83 106 Morse taper MT 2 3 4 Spare chuck key for No. 334510 334515 for type 12 I 20 i 30 S 33 4515 Spare chuck key for tapping chuck type DSPL with shank 15.64 20.39 31.19 805
