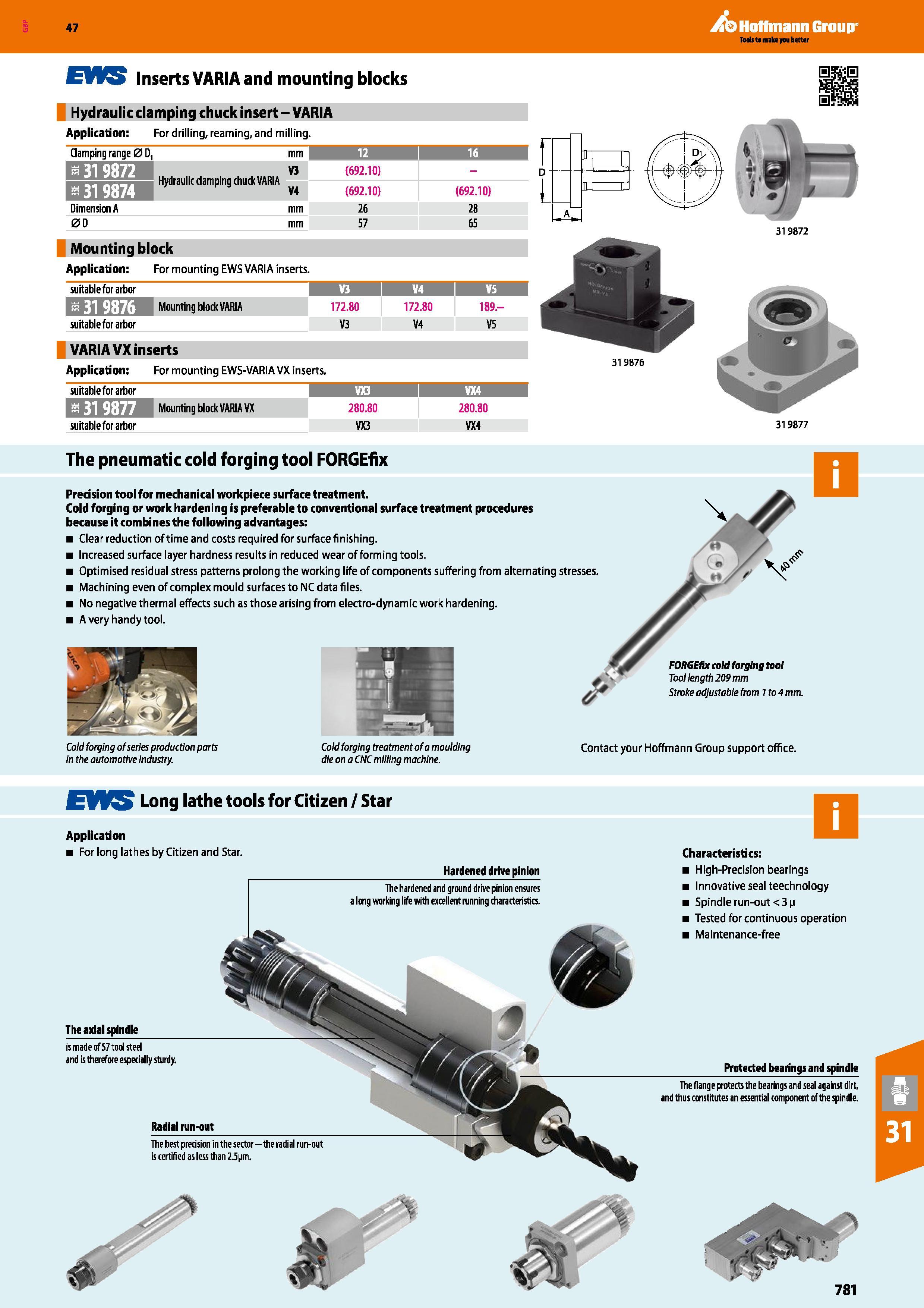

47 EWS Inserts VARIA and mounting blocks Hydraulic clamping chuck insert - VARIA Application: For drilling, reaming, and milling. Mounting block Application: For mounting EWS VARIA inserts. VARIA VX inserts Application: For mounting EWS-VARIA VX inserts. The pneumatic cold forging tool FORGEfix Hoffmann Group Clamping range 0 D. mm 12 i 16 1rn 9872 M V3 (692.10) - nyuiouiii uaiiifjmy uiuui vnnm ¥4 (692.10) (692.10) Dimension A mm 26 28 00 mm 57 65 suitable for arbor BvS V3 V4 VS Mounting block VARIA 172.80 172.80 189 suitable for arbor V3 V4 V5 suitable for arbor I VX3 1 VX4 Mounting block VARIA VX 280.80 280.80 suitable for arbor VX3 VX4 31 9877 Cold forging of series production parts in the automotive industry. Cold forging treatment of a moulding die on a CNC milling machine. Contact your Hoffmann Group support office. EWS Long lathe tools for Citizen / Star Application For long lathes by Citizen and Star. Hardened drive pinion Die hardened and ground drive pinion ensures a long working life with excellent running characteristics. Characteristics: High-Precision bearings Innovative seal teechnology Spindle run-out < 3 n Tested for continuous operation Maintenance-free Protected bearings and spindle The flange protects the bearings and seal against dirt, and thus constitutes an essential component of the spindle. Precision tool for mechanical workpiece surface treatment. Cold forging or work hardening is preferable to conventional surface treatment procedures because it combines the following advantages: Clear reduction of time and costs required for surface finishing. Increased surface layer hardness results in reduced wear of forming tools. Optimised residual stress patterns prolong the working life of components suffering from alternating stresses. Machining even of complex mould surfaces to NC data files. No negative thermal effects such as those arising from electro-dynamic work hardening. A very handy tool. FORGEfix cold forging tool Tool length 209mm Stroke adjustable from 1 to 4 mm. The axial spindle is made ofS7 tool steel and is therefore especially sturdy. Radial run-out Die best precision in the sector - the radial run-out is certified as less than 2.5 m.
