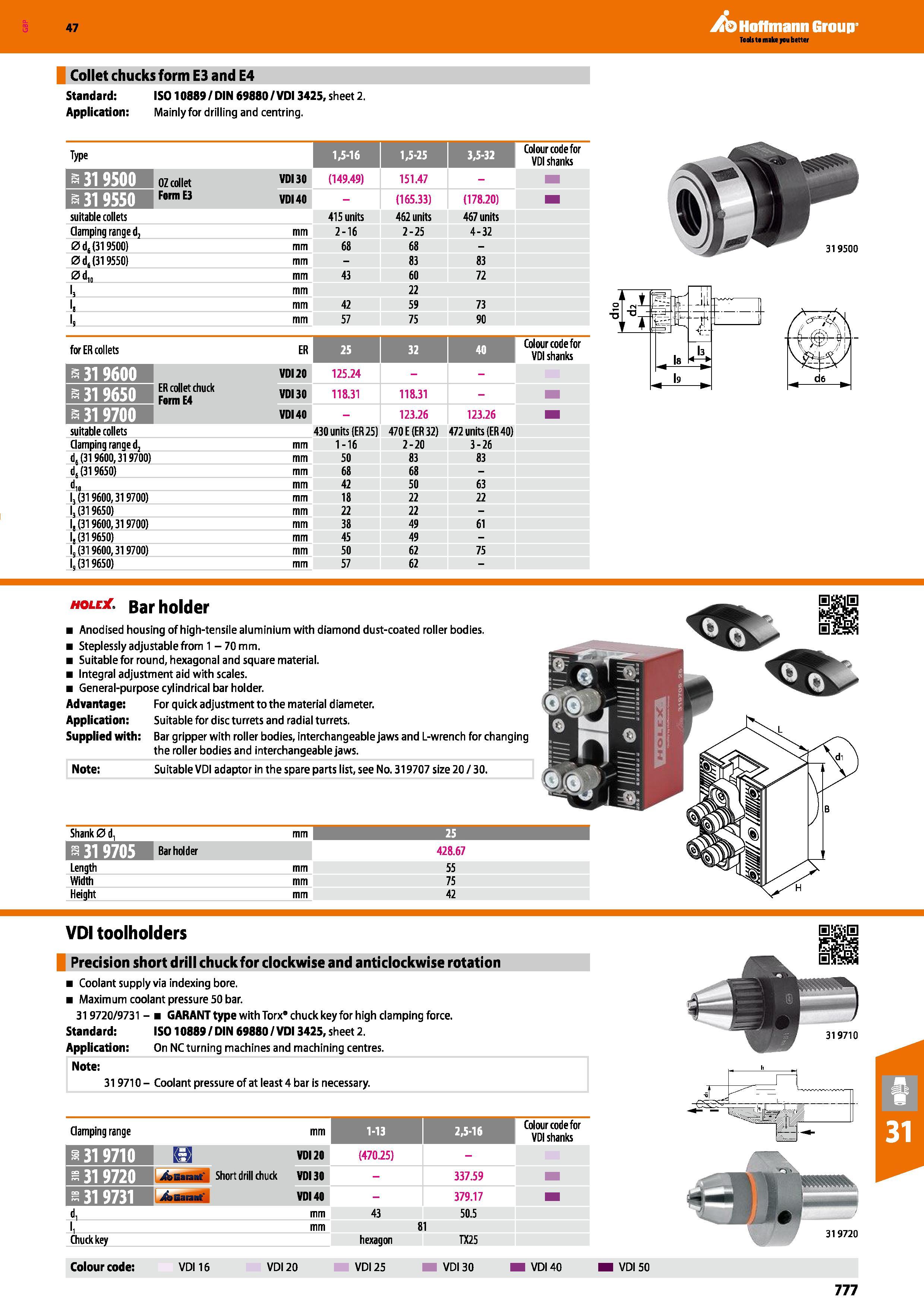

Hoffmann Group 47 Collet chucks form E3 and E4 Standard: IS0 10889/ DIN 69880/VDI3425, sheet 2. Application: Mainly for drilling and centring. Type 1,5-16 1,5-25 3,5-32 Colour code for VDI shanks 13" if I jllj 07 collet VDI 30 (149.49) 151.47 - KI..UII r,B VDI 40 - (165.33) (178.20) suitable collets 415 units 462 units 467 units Clamping range d2 mm 2-16 2-25 4-32 (25 d6 (319500) mm 68 68 - 0 d4 (31 9550) mm - 83 83 mm 43 60 72 1, mm 22 1, mm 42 59 73 1, mm 57 75 90 for ER collets ER 25 32 40 Colour code for VDI shanks 5 31 9600 VDI 20 125.24 bUiil FormE4 VDI 30 118.31 118.31 - minim VDI 40 - 123.26 123.26 suitable collets 430 units (ER 25) 470 E (ER 32) 472 units (ER 40) Clamping range d2 mm 1-16 2-20 3-26 d, (319600,319700) mm 50 83 83 d, (319650) mm 68 68 - 1,. mm 42 50 63 I3 (319600,31 9700) mm 18 22 22 l3 (319650) mm 22 22 - 1,(319600,319700) mm 38 49 61 1,(319650) mm 45 49 - 1,(319600,319700) mm 50 62 75 1,(319650) mm 57 62 - mou : Bar holder Anodised housing of high-tensile aluminium with diamond dust-coated roller bodies. Steplessly adjustable from 1 -70 mm. Suitable for round, hexagonal and square material. Integral adjustment aid with scales. General-purpose cylindrical bar holder. Advantage: For quick adjustment to the material diameter. Application: Suitable for disc turrets and radial turrets. Supplied with: Bar gripper with roller bodies, interchangeable jaws and L-wrench for changing the roller bodies and interchangeable jaws. Note: Suitable VDI adaptor in the spare parts list, see No. 319707 size 20 / 30. Shank 0 d. mm 25 1 s 31 9705 HO 428.67 Length mm 55 Width mm 75 Height mm 42 VDI toolholders Precision short drill chuck for clockwise and anticlockwise rotation Coolant supply via indexing bore. Maximum coolant pressure 50 bar. 319720/9731 - GARANT type with Torx chuck key for high clamping force. Standard: IS0 10889/DIN 69880/VDI 3425, sheet 2. Application: On NC turning machines and machining centres. Note: 319710- Coolant pressure of at least 4 bar is necessary. Clamping range mm 1-13 2,5-16 Colour code for VDI shanks a 319710 H VDI 20 (470.25) - -31 9720 /bGaiaot Short drill chuck VDI 30 - 337.59 -31 9731 J&Gaiant VDI 40 - 379.17 <1, mm 43 50.5 1, mm 81 Chuck key hexagon TX25 Colour code: VD116 VDI 20 VDI 25 VDI 30 VDI 40 VDI 50 319710 777
