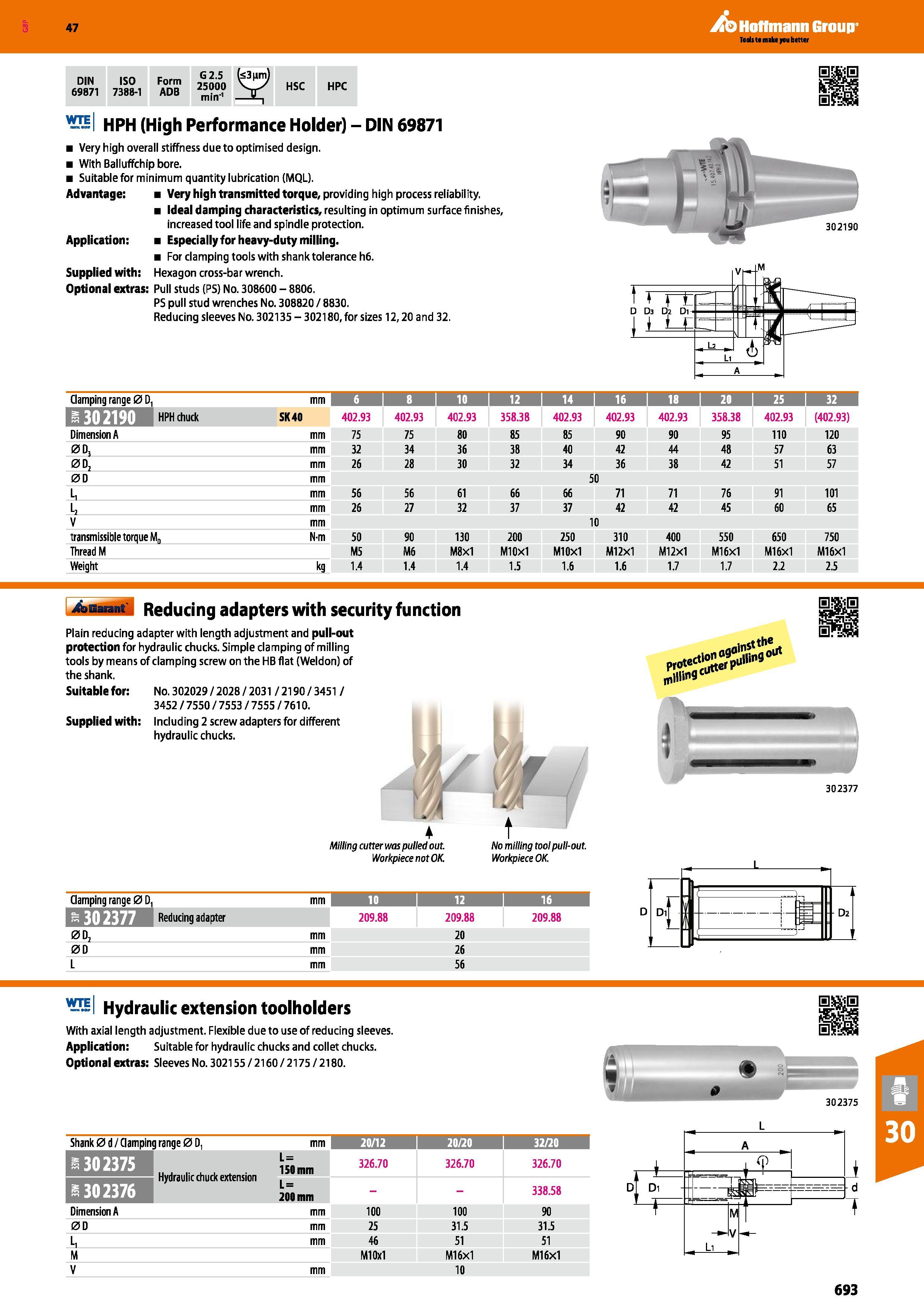

Hoffmann Group 47 DIN ISO 69871 7388-1 Form ADB G 2,5 (<3nm) 25000 V-X min'1 JLj HSC HPC WTE HPH (High Performance Holder) - DIN 69871 Very high overall stiffness due to optimised design. With Balluffchip bore. Suitable for minimum quantity lubrication (MQL). Advantage: Application: Supplied with: Optional extras: Very high transmitted torque, providing high process reliability. Ideal damping characteristics, resulting in optimum surface finishes, increased tool life and spindle protection. Especially for heavy-duty milling. For clamping tools with shank tolerance h6. Hexagon cross-bar wrench. Pull studs (PS) No. 308600 - 8806. PS pull stud wrenches No. 308820 / 8830. Reducing sleeves No. 302135 - 302180, for sizes 12,20 and 32. Clamping range 0 D. mm 6 8 i 10 I 12 1 K 16 I 18 I 20 1 25 1 32 1 S 302190 BOB SK40 402.93 402.93 402.93 358.38 402.93 402.93 402.93 358.38 402.93 (402.93) Dimension A mm 75 75 80 85 85 90 90 95 110 120 0D3 mm 32 34 36 38 40 42 44 48 57 63 0D2 mm 26 28 30 32 34 36 38 42 51 57 0D mm 50 L, mm 56 56 61 66 66 71 71 76 91 101 l2 mm 26 27 32 37 37 42 42 45 60 65 V mm 10 transmissible torque MD N-m 50 90 130 200 250 310 400 550 650 750 Thread M M5 M6 M8x1 M10X1 M10X1 M12X1 M12X1 M16X1 M16X1 M16X1 Weight kg 1.4 1.4 1.4 1.5 1.6 1.6 1.7 1.7 2.2 2.5 hiia fl Reducing adapters with security function Plain reducing adapter with length adjustment and pull-out protection for hydraulic chucks. Simple clamping of milling tools by means of clamping screw on the HB flat (Weldon) of the shank. Suitable for: No.302029/2028/2031 /2190/3451 / 3452 / 7550 / 7553 / 7555 / 7610. Supplied with: Including 2 screw adapters for different hydraulic chucks. “flr V 1 Milling cutter was pulled out. Workpiece not OK. No milling tool pull-out. Workpiece OK. Clamping range 0 D. mm 10 1 12 16 1 1 - 302377 immm 209.88 209.88 209.88 0 d2 mm 20 0D mm 26 L mm 56 mill''19 \ 302377 " n D2 i WTE Hydraulic extension toolholders With axial length adjustment. Flexible due to use of reducing sleeves. Application: Suitable for hydraulic chucks and collet chucks. Optional extras: Sleeves No. 302155 / 2160 / 2175 / 2180. Ik m 302375 Shank 0 d / Clamping range 0 D. mm 20/12 1 20/20 i 32/20 I S 30 2375 Hydraulic chuck extension L = 150 mm 326.70 326.70 326.70 B 30 2376 L= 200 mm 338.58 Dimension A mm 100 100 90 0D mm 25 31.5 31.5 L, mm 46 51 51 M MIOxI M16x1 M16x1 V mm 10 693
