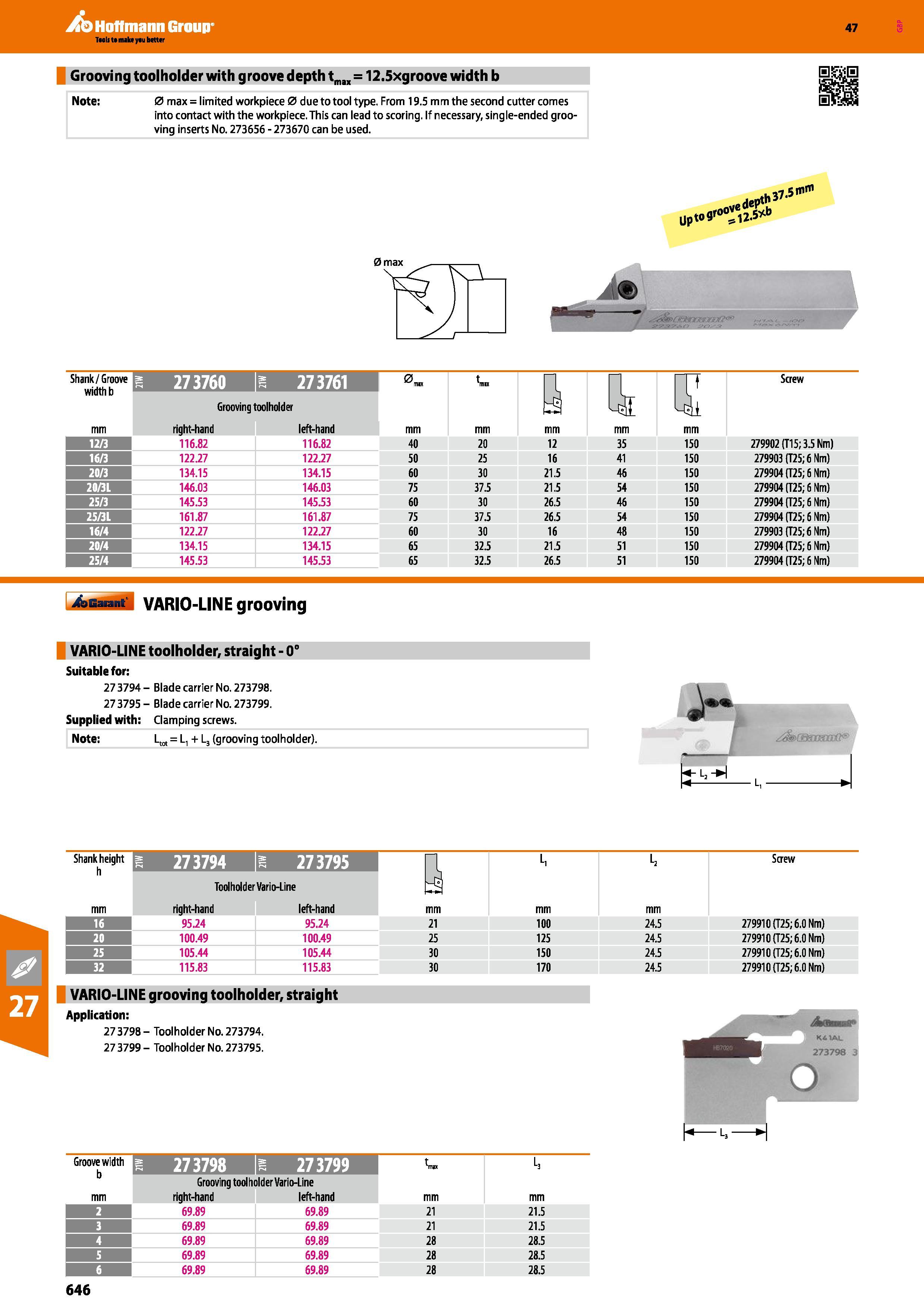

Hoffmann Group 47 Grooving toolholder with groove depth tmn = 12.5xgroove width b Note: 0 max = limited workpiece 0 due to tool type. From 19.5 mm the second cutter comes into contact with the workpiece. This can lead to scoring. If necessary, single-ended grooving inserts No. 273656 - 273670 can be used. -ovedeP UpW9'o0 l2-s b 0max Shank/Groove width b mm 273761 0 mm mo mm 1 mm E mm Screw Grooving toolholder right-hand left-hand 12/3 116.82 116.82 40 20 12 35 150 279902 (T15; 3.5 Mm) 16/3 122.27 122.27 50 25 16 41 150 279903 (T25; 6 Nm) 20/3 134.15 134.15 60 30 21.5 46 150 279904 (T25; 6 Nm) 20/3L 146.03 146.03 75 37.5 21.5 54 150 279904 (T25; 6 Nm) 25/3 145.53 145.53 60 30 26.5 46 150 279904 (T25; 6 Nm) 25/3L 161.87 161.87 75 37.5 26.5 54 150 279904 (T25; 6 Nm) 16/4 122.27 122.27 60 30 16 48 150 279903 (T25; 6 Nm) 20/4 134.15 134.15 65 32.5 21.5 51 150 279904 (T25; 6 Nm) 25/4 145.53 145.53 65 32.5 26.5 51 150 279904 (T25; 6 Nm) Garant VARIO-LINE grooving VARIO-LINE toolholder, straight - 0° Suitable for: 273794- Blade carrier No. 273798. 27 3795 - Blade carrier No. 273799. Supplied with: Clamping screws. Note: Ltot = L, + L3 (grooving toolholder). Shank height n L, l2 Screw h Toolholder Vario-Line mm right-hand left-hand mm is m 95.24 95.24 21 100 24.5 279910 (T25; 6.0 Nm) 20 S 100.49 100.49 25 125 24.5 279910 (T25; 6.0 Nm) 25 H 105.44 105.44 30 150 24.5 279910 (T25; 6.0 Nm) 32 S 115.83 115.83 30 170 24.5 279910 (T25; 6.0 Nm) VARIO-LINE grooving toolholder, straight Application: 273798 - Toolholder No. 273794. 273799 - Toolholder No. 273795. Groove width S - b mm Grooving tool holder Vario-Line right-hand left-hand mm 2 m 69.89 69.89 21 21.5 3 H 69.89 69.89 21 21.5 4 s 69.89 69.89 28 28.5 5 s 69.89 69.89 28 28.5 RIK H 69.89 69.89 28 28.5 646
