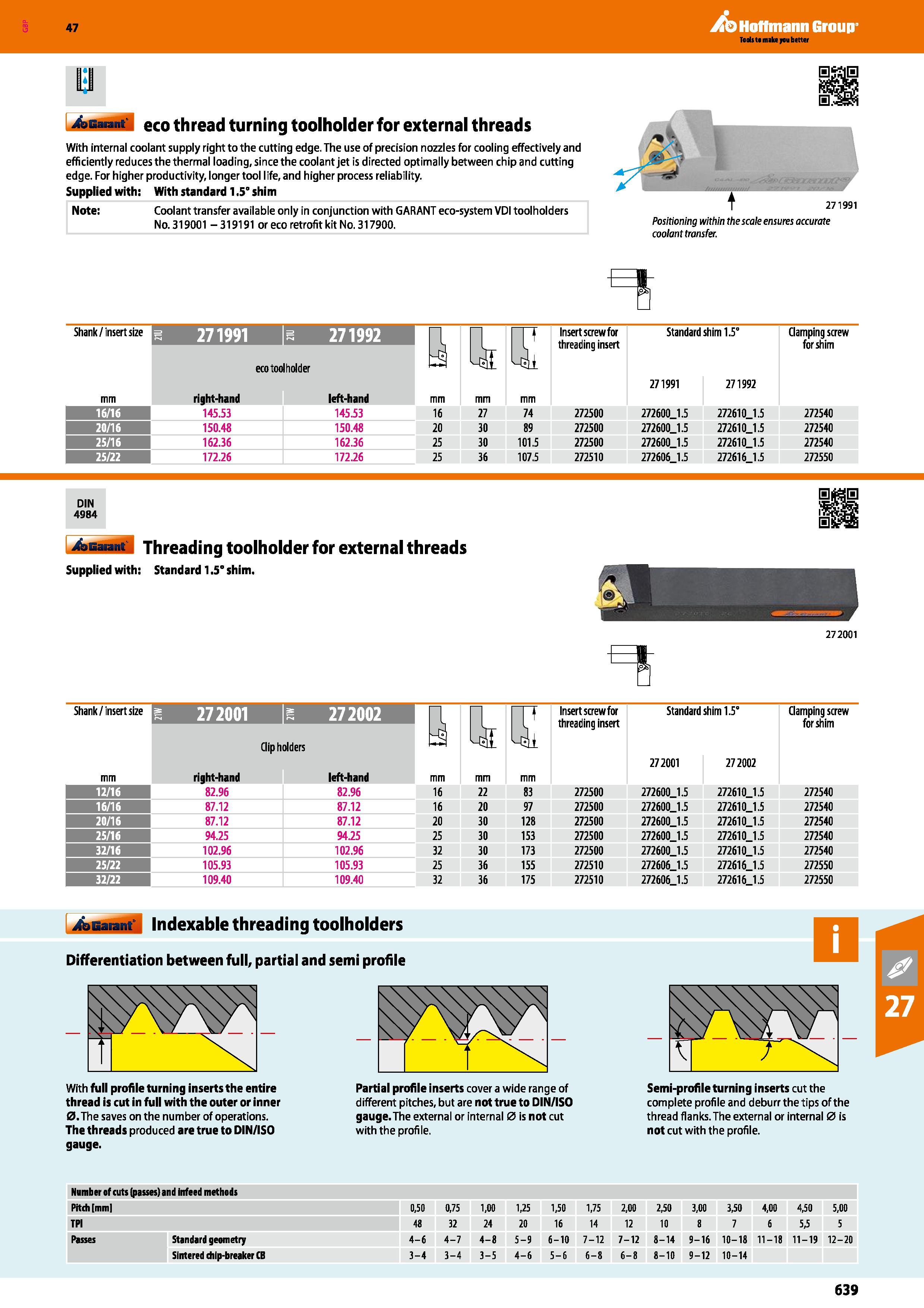

Hoffmann Group 47 4aBM id eco thread turning toolholder for external threads With internal coolant supply right to the cutting edge. The use of precision nozzles for cooling effectively and efficiently reduces the thermal loading, since the coolant jet is directed optimally between chip and cutting edge. For higher productivity, longer tool life, and higher process reliability. Supplied with: With standard 1.5° shim Note: Coolant transfer available only in conjunction with GARANT eco-system VDI toolholders No. 319001 -319191 or eco retrofit kit No. 317900. Shank /insert size s 271991 271992 eco tool holder mm right-hand left-hand 16/16 145.53 145.53 20/16 150.48 150.48 25/16 162.36 162.36 25/22 172.26 172.26 Insert screw for threading insert Standard shim 1.5° 271991 271992 Clamping screw for shim mm 16 27 74 272500 272600J.5 272610_1.5 272540 20 30 89 272500 272600J.5 272610J.5 272540 25 30 101.5 272500 272600J.5 272610J.5 272540 25 36 107.5 272510 272606 1.5 272616 1.5 272550 DIN 4984 Threading toolholder for external threads Supplied with: Standard 1.5° shim. Shank /insert size mm £ 272001 s right-hand Clip holders left-hand 12/16 82.96 82.96 16/16 87.12 87.12 20/16 87.12 87.12 25/16 94.25 94.25 32/16 102.96 102.96 25/22 105.93 105.93 32/22 109.40 109.40 mm 16 16 20 25 32 25 32 22 20 30 30 30 36 36 mm 83 97 128 153 173 155 175 Insert screw for threading insert 72500 72500 72500 72500 72500 72510 72510 Standard shim 1.5° 272001 272600J.5 272600J.5 272600J.5 272600J.5 272600J.5 272606J.5 272606J.5 272002 272610_1.5 272610J.5 272610J.5 272610_1.5 272610_1.5 272616_1.5 272616_1.5 272001 Clamping screw for shim 272540 272540 272540 272540 272540 272550 272550 Indexable threading toolholders Differentiation between full, partial and semi profile With full profile turning inserts the entire thread is cut in full with the outer or inner 0.The saves on the number of operations. The threads produced are true to DIN/ISO gauge. y j L Partial profile inserts cover a wide range of different pitches, but are not true to DIN/ISO gauge.The external or internal 0 is not cut with the profile. Semi-profile turning inserts cut the complete profile and deburr the tips of the thread flanks. The external or internal 0 is not cut with the profile. Number of cuts (passes) and infeed methods Pitch mm 0,50 0,75 1,00 1,25 1,50 1,75 2,00 2,50 3,00 3,50 4,00 4,50 5,00 TPI 48 32 24 20 16 14 12 10 8 7 6 5,5 5 Passes Standard geometry 4-6 4-7 4-8 5-9 6-10 7-12 7-12 8-14 9-16 10-18 11-18 11-19 12-20 Sintered dilp-breaker CB 3-4 3-4 3-5 4-6 5-6 6-8 6-8 8-10 9-12 10-14 271991 Positioning within the scale ensures accurate coolant transfer. 639
