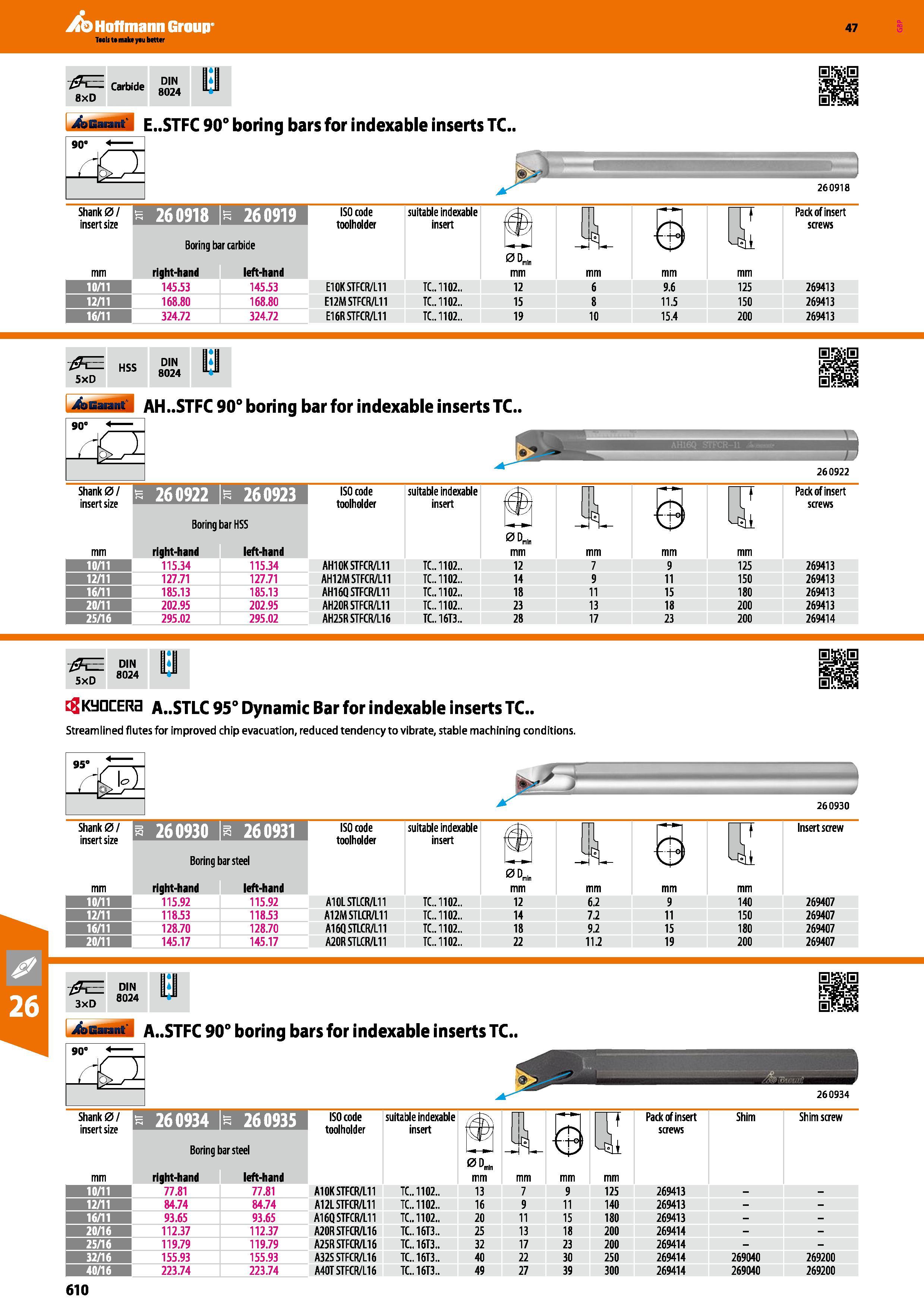

610 Каталог HOFFMANN GROUP 2016 Станочный режущий и вспомогательный инструмент Вер. 47 Стр.610

Каталог HOFFMANN GROUP 2016 Режущий инструмент и оснастка Стр. 610 0610 ENG Lab2u

Hoffmann Group 47 0 Carbide JJIIJ, 8xD 8024 bBaiant E..STFC 90° boring bars for indexable inserts TC.. 90 260918 Shank 0/ insert size 260918 - 26 Boring bar carbide ISO code toolholder suitable indexable insert Pack of insert screws mm right-hand left-hand mm 10/11 145.53 145.53 E10KSTFCR/L11 TC.. 1102.. 12 6 9.6 125 269413 12/11 168.80 168.80 E12MSTFCR/L11 TC.. 1102.. 15 8 11.5 150 269413 16/11 324.72 324.72 E16RSTFCR/L11 TC.. 1102.. 19 10 15.4 200 269413 &t_ HSS 5xD DIN 8024 4ssa AH..STFC 90° boring bar for indexable inserts TC. 90" Shank 0/ insert size Boring bar HSS HT ISO code toolholder suitable indexable insert 260922 Pack of insert screws mm right-hand left-hand mm 10/11 115.34 115.34 AH10KSTFCR/L11 TC.. 1102.. 12 7 9 125 269413 12/11 127.71 127.71 AH12M STFCR/L11 TC.. 1102.. 14 9 11 150 269413 16/11 185.13 185.13 AH16Q STFCR/L11 TC.. 1102.. 18 11 15 180 269413 20/11 202.95 202.95 AH20R STFCR/L11 TC.. 1102.. 23 13 18 200 269413 25/16 295.02 295.02 AH25RSTFCR/L16 TC..16T3.. 28 17 23 200 269414 0 5xD DIN 8024 KyQCERa A..STLC 95° Dynamic Bar for indexable inserts TC.. Streamlined flutes for improved chip evacuation, reduced tendency to vibrate, stable machining conditions. 95' Shank 0/ insert size 260930 s 260931 Boring bar steel ISO code toolholder suitable indexable insert 260930 Insert screw mm right-hand left-hand 00 . ‘ 'mm mm 10/11 115.92 115.92 A10LSTLCR/L11 TC.. 1102.. 12 6.2 9 140 269407 12/11 118.53 118.53 A12M STLCR/L11 TC.. 1102.. 14 7.2 11 150 269407 16/11 128.70 128.70 A16QSTLCR/L11 TC.. 1102.. 18 9.2 15 180 269407 20/11 145.17 145.17 A20R STLCR/L11 TC.. 1102.. 22 11.2 19 200 269407 Agmh’ A..STFC 90° boring bars for indexable inserts TC.. 90" 260934 Shank 0/ insert size Boring bar steel ISO code toolholder suitable indexable insert Pack of insert screws Shim Shim screw mm right-hand left-hand 0Dmln mm 10/11 77.81 77.81 A10KSTFCR/L11 TC.. 1102.. 13 7 9 125 269413 12/11 84.74 84.74 A12L5TFCR/L11 TC.. 1102.. 16 9 11 140 269413 16/11 93.65 93.65 A16Q STFCR/L11 TC.. 1102.. 20 11 15 180 269413 20/16 112.37 112.37 A20RSTFCR/L16 TC..16T3.. 25 13 18 200 269414 25/16 119.79 119.79 A25RSTFCR/L16 TC..16T3.. 32 17 23 200 269414 32/16 155.93 155.93 A325 STFCR/L16 TC..16T3.. 40 22 30 250 269414 269040 269200 40/16 223.74 223.74 A40T STFCR/L16 TC..16T3.. 49 27 39 300 269414 269040 269200 610
