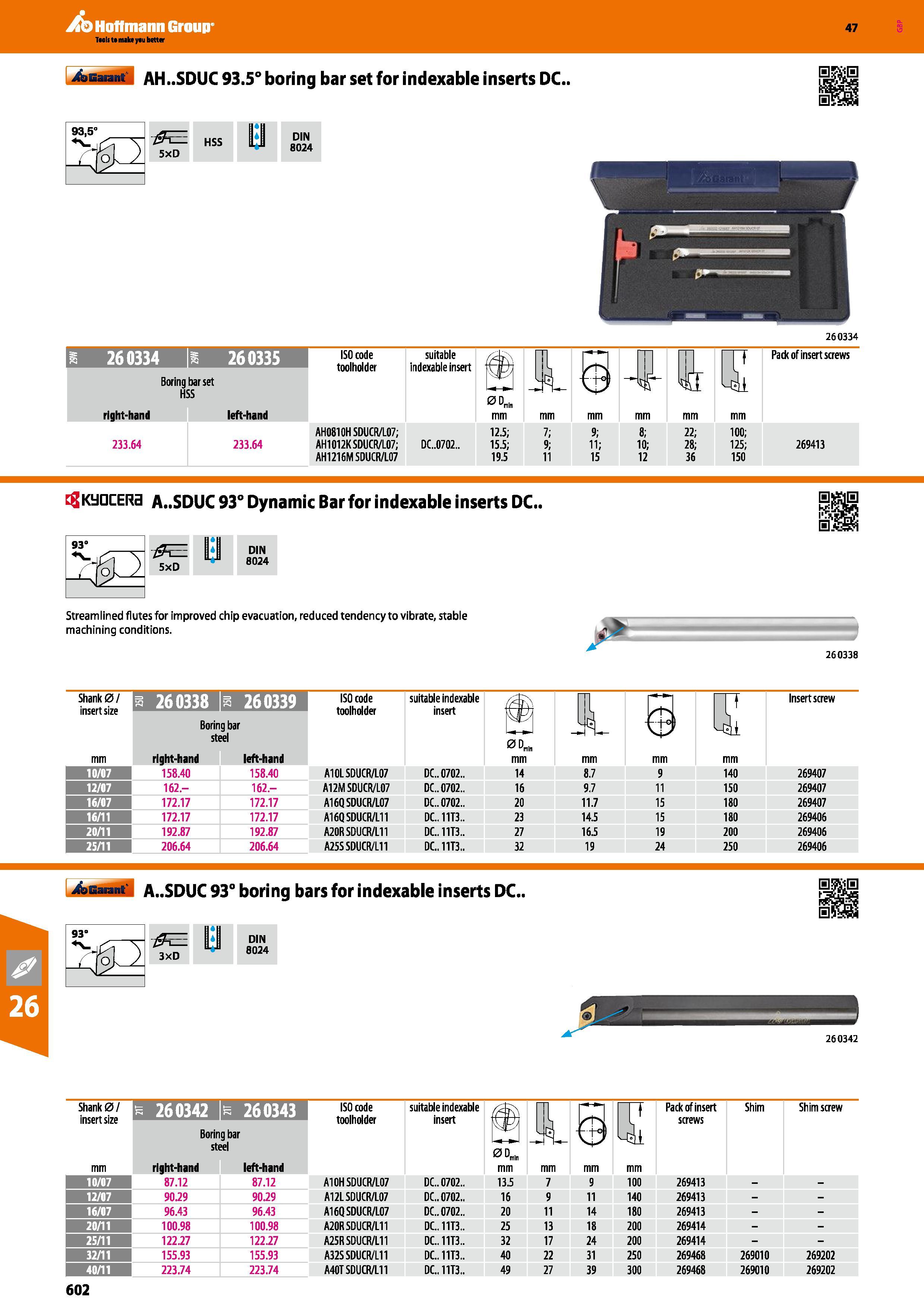

>Earant AH..SDUC 93.5° boring bar set for indexable inserts DC. HSS DIN 8024 260334 S 260334 S 260335 Boring bar set HSS right-hand left-hand 233.64 233.64 ISO code toolholder AH0810H SDUCR/L07; AH1012KSDUCR/L07; AH1216M SDUCR/L07 suitable Indexable insert DC..0702.. mm 12.5; 15.5; 19.5 Pack of insert screws mm 7; 9; 11 mm 9; 11; 15 10; 12 mm 22; 28; 36 mm 100; 125; 150 269413 tgKtJDCERa A..SDUC 93° Dynamic Bar for indexable inserts DC. 93" 5xD II DIN 8024 Streamlined flutes for improved chip evacuation, reduced tendency to vibrate, stable machining conditions. 260338 Shank 0/ insert size mm 260338 s 260339 1 Boring bar steel right-hand left-hand 10/17 158.40 158.40 12/07 162- 162- 16/07 172.17 172.17 16/11 172.17 172.17 20/11 192.87 192.87 25/11 206.64 206.64 ISO code toolholder A10LSDUCR/L07 A12M SDUCR/L07 A16QSDUCR/L07 A16QSDUCR/L11 A20RSDUCR/L11 A25SSDUCR/L11 suitable indexable insert DC.. 0702.. DC.. 0702.. DC.. 0702.. DC..11T3.. DC..11T3.. DC..11T3.. 0Dmln mm 14 16 20 23 27 32 mm 8.7 9.7 11.7 14.5 16.5 19 mm 9 11 15 15 19 24 mm 140 150 180 180 200 250 Insert screw 269407 269407 269407 269406 269406 269406 A..SDUC 93° boring bars for indexable inserts DC. 93" > & > 3XD B DIN 8024 260342 Shank 0/ insert size mm e 260342 e Boring bar steel right-hand left-hand 10/07 87.12 87.12 12/07 90.29 90.29 16/07 96.43 96.43 20/11 100.98 100.98 25/11 122.27 122.27 32/11 155.93 155.93 40/11 223.74 223.74 ISO code toolholder A10H SDUCR/L07 A12LSDUCR/L07 A16QSDUCR/L07 A20RSDUCR/L11 A25RSDUCR/L11 A32S SDUCR/L11 A40TSDUCR/L11 suitable indexable insert DC.. 0702.. DC.. 0702.. DC.. 0702.. DC..11T3.. DC..11T3.. DC..11T3.. DC..11T3.. 00 , mlr mm 13.5 16 20 25 32 40 49 mm 7 9 11 13 17 22 27 mm 9 11 14 18 24 31 39 mm 100 140 180 200 200 250 300 Pack of insert screws 269413 269413 269413 269414 269414 269468 269468 Shim Shim screw 269010 269010 269202 269202 602
