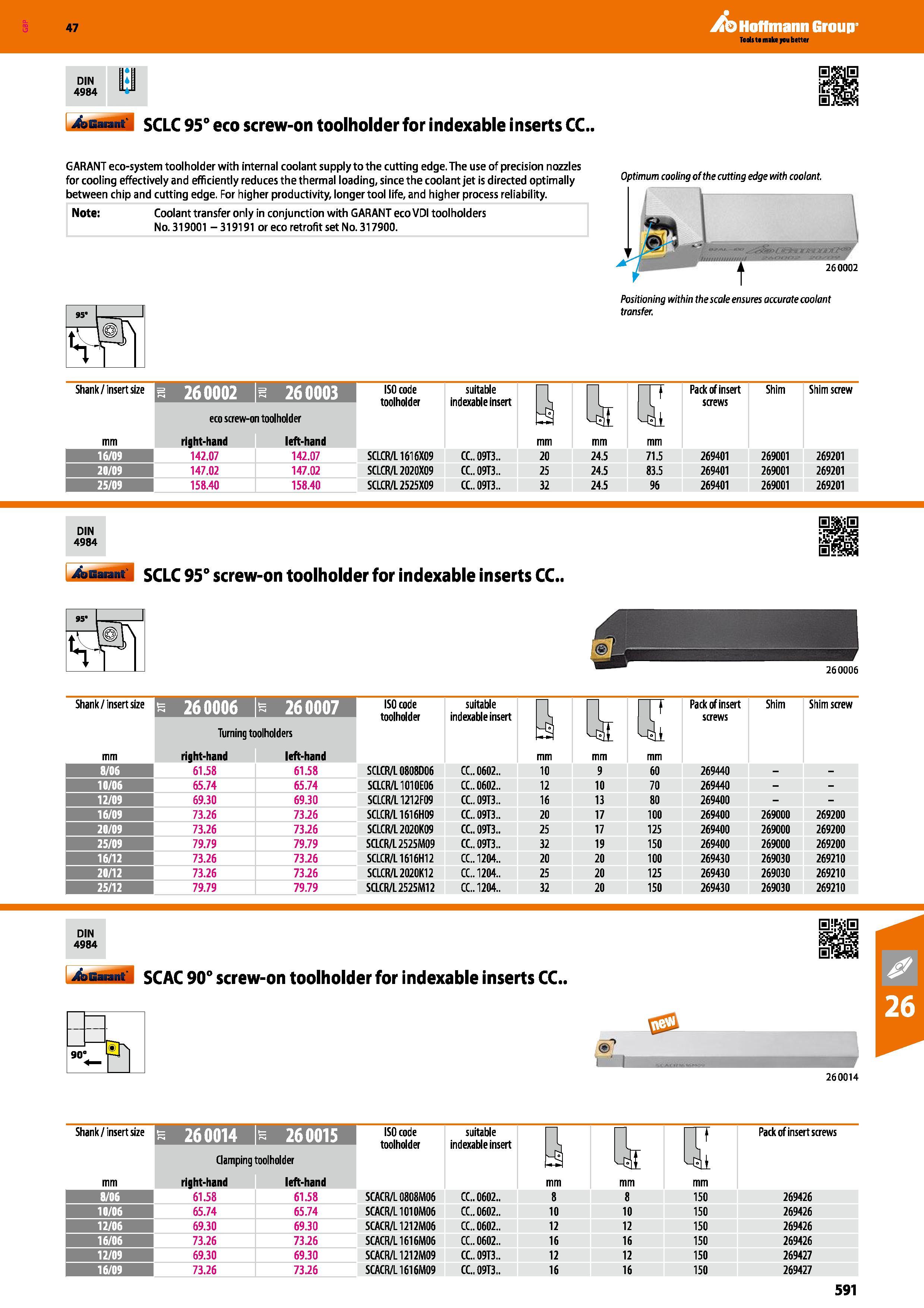

Hoffmann Group 47 DIN 4984 SJ bGaiant SCLC 95° eco screw-on toolholder for indexable inserts CC. GARANT eco-system toolholder with internal coolant supply to the cutting edge. The use of precision nozzles for cooling effectively and efficiently reduces the thermal loading, since the coolant jet is directed optimally between chip and cutting edge. For higher productivity, longer tool life, and higher process reliability. Note: Coolant transfer only in conjunction with GARANT eco VDI toolholders No.319001 -319191 or eco retrofit set No. 317900. n Optimum cooling of the cutting edge with coolant. 260002 Positioning within the scale ensures accurate coolant transfer. Shank /insert size mm b 260002 s 260003 ISO code toolholder suitable indexable insert mm G mm Pack of insert screws Shim Shim screw eco screw-on toolholder right-hand left-hand 16/09 142.07 142.07 SCLCR/L1616X09 CC..09T3.. 20 24.5 71.5 269401 269001 269201 20/09 147.02 147.02 SCLCR/L 2020X09 CC..09T3.. 25 24.5 83.5 269401 269001 269201 25/09 158.40 158.40 SCLCR/L 2525X09 CC..09T3.. 32 24.5 96 269401 269001 269201 SCLC 95° screw-on toolholder for indexable inserts CC.. Shank /insert size imiiME 260007 ISO code toolholder suitable indexable insert Turning toolholders Pack of insert Shim Shim screw screws mm right-hand left-hand mm 8/06 61.58 61.58 SCLCR/L 0808006 CC.. 0602.. 10 9 60 269440 10/06 65.74 65.74 SCLCR/L1010E06 CC.. 0602.. 12 10 70 269440 12/09 69.30 69.30 SCLCR/L 1212F09 CC..09T3.. 16 13 80 269400 16/09 73.26 73.26 SCLCR/L 1616H09 CC..09T3.. 20 17 100 269400 269000 269200 20/09 73.26 73.26 SCLCR/L 2020K09 CC..09T3.. 25 17 125 269400 269000 269200 25/09 79.79 79.79 SCLCR/L 2525M09 CC..09T3.. 32 19 150 269400 269000 269200 16/12 73.26 73.26 SCLCR/L 1616H12 CC.. 1204.. 20 20 100 269430 269030 269210 20/12 73.26 73.26 SCLCR/L2020K12 CC.. 1204.. 25 20 125 269430 269030 269210 25/12 79.79 79.79 SCLCR/L 2525M12 CC.. 1204.. 32 20 150 269430 269030 269210 DIN 4984 4aEm M SCAC 90° screw-on toolholder for indexable inserts CC. 260014 Shank /insert size Clamping toolholder 260015 ISO code toolholder suitable indexable insert Pack of insert screws mm right-hand left-hand mm 8/06 61.58 61.58 SCACR/L 0808M06 CC.. 0602.. 8 8 150 269426 10/06 65.74 65.74 SCACR/L101OMO6 CC.. 0602.. 10 10 150 269426 12/06 69.30 69.30 SCACR/L 1212M06 CC.. 0602.. 12 12 150 269426 16/06 73.26 73.26 SCACR/L 1616M06 CC.. 0602.. 16 16 150 269426 12/09 69.30 69.30 SCACR/L 1212M09 CC..09T3.. 12 12 150 269427 16/09 73.26 73.26 SCACR/L 1616M09 CC..09T3.. 16 16 150 269427 591
