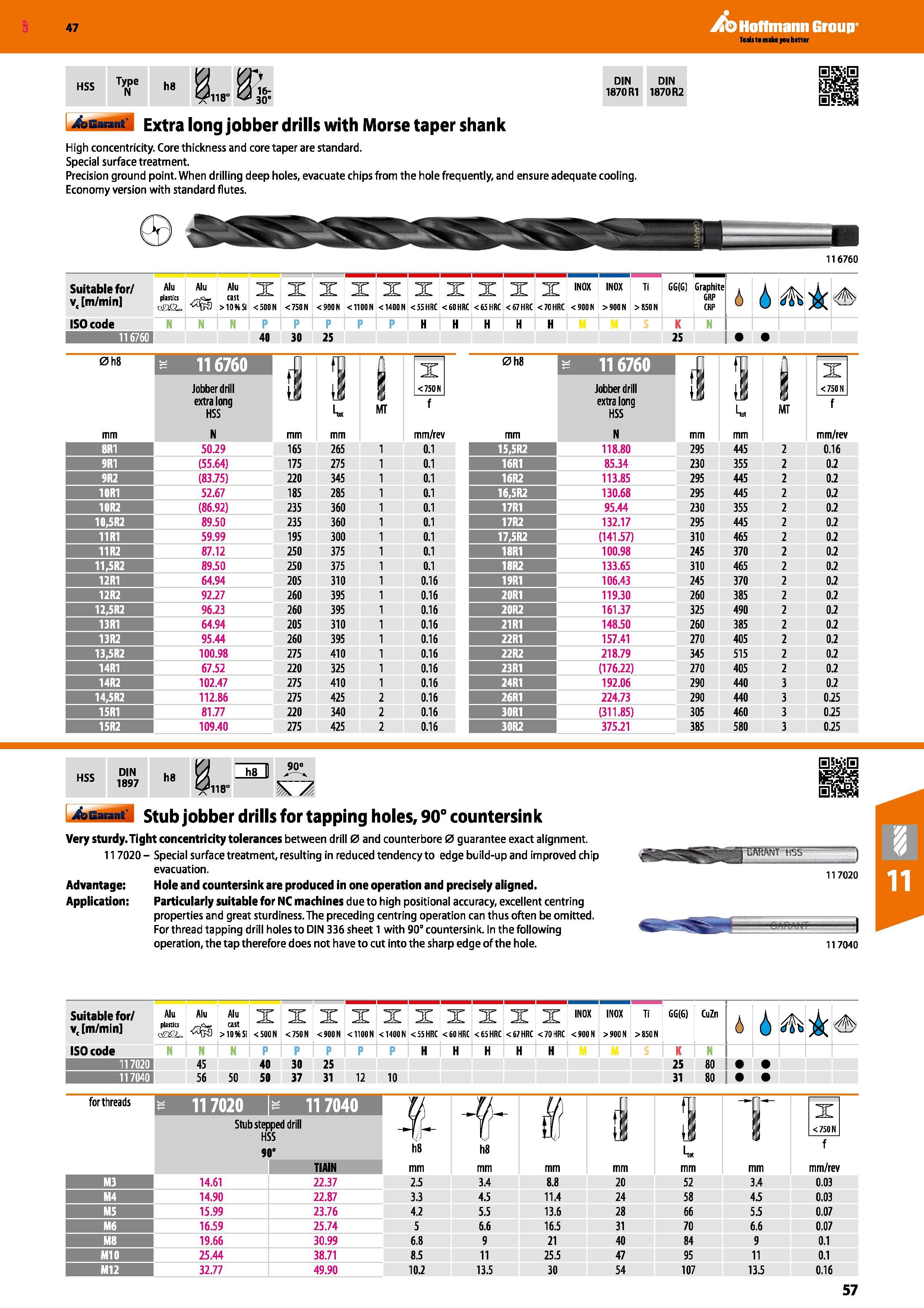

Hoffmann Group 47 HSS Type N h8 DIN DIN 1870 R1 1870R2 Auarant Extra long jobber drills with Morse taper shank High concentricity. Core thickness and core taper are standard. Special surface treatment. Precision ground point. When drilling deep holes, evacuate chips from the hole frequently, and ensure adequate cooling. Economy version with standard flutes. 116760 Suitable for/ Alu v, m/min Alu srfi- cast >10% Si X < 500 N X < 750 N X X <900N < 1100N X < 1400 N X <55 HRC X <60 HRC X <65 HRC X <67 HRC X <70 HRC INOX <900N INOX >900N Ti > 850 N GG(G) Graphite GRP CRP 6 I ISO code N P H K N I 116760 40 30 25 25 0h8 mm s 116760 mm 1 L mm m Jobber drill extra long HSS N 8R1 50.29 165 265 1 9R1 (55.64) 175 275 1 9R2 (83.75) 220 345 1 10R1 52.67 185 285 i 10R2 (86.92) 235 360 1 10.5R2 89.50 235 360 1 11R1 59.99 195 300 1 11R2 87.12 250 375 1 11,5 R2 89.50 250 375 i 12R1 64.94 205 310 i 12R2 92.27 260 395 1 12.5R2 96.23 260 395 1 13R1 64.94 205 310 1 13R2 95.44 260 395 1 13.5R2 100.98 275 410 i 14R1 67.52 220 325 i 14R2 102.47 275 410 1 14,5R2 112.86 275 425 2 15R1 81.77 220 340 2 15R2 109.40 275 425 2 f mm/rev 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0h8 mm Jobber drill extra long HSS N 1 mm 1 K, mm MT X < 750 N f mm/rev 15,5R2 118.80 295 445 2 0.16 16R1 85.34 230 355 2 0.2 16R2 113.85 295 445 2 0.2 16.5R2 130.68 295 445 2 0.2 17R1 95.44 230 355 2 0.2 17R2 132.17 295 445 2 0.2 17,5112 (141.57) 310 465 2 0.2 18R1 100.98 245 370 2 0.2 18R2 133.65 310 465 2 0.2 19R1 106.43 245 370 2 0.2 20R1 119.30 260 385 2 0.2 20R2 161.37 325 490 2 0.2 21R1 148.50 260 385 2 0.2 22R1 157.41 270 405 2 0.2 22R2 218.79 345 515 2 0.2 23R1 (176.22) 270 405 2 0.2 24R1 192.06 290 440 3 0.2 26R1 224.73 290 440 3 0.25 30R1 (311.85) 305 460 3 0.25 30R2 375.21 385 580 3 0.25 HSS DIN 1897 h8 118° Aisarant Stub jobber drills for tapping holes, 90° countersink Very sturdy.Tight concentricity tolerances between drill 0 and counterbore 0 guarantee exact alignment. 11 7020- Special surface treatment, resulting in reduced tendency to edge build-up and improved chip evacuation. Advantage: Hole and countersink are produced in one operation and precisely aligned. Application: Particularly suitable for NC machines due to high positional accuracy, excellent centring properties and great sturdiness. The preceding centring operation can thus often be omitted. For thread tapping drill holes to DIN 336 sheet 1 with 90° countersink. In the following operation, the tap therefore does not have to cut into the sharp edge of the hole. 11 7020 ; 1 11 7040 Suitable for/ v, m/min Alu plastics aOH. Alu <3 a Alu cast > 10% Si X < 500 N X < 750 N 2C < 900 N X < 1100 N X <1400 N X <55 HRC X <60 HRC X <65 HRC X <67 HRC X <70 HRC INOX < 900 N INOX > 900 N Ti >850N GG(G) CuZn 6 i ISO code N \ a \ mi P H K N 117020 45 40 30 25 25 80 117040 56 50 50 37 31 12 10 31 80 for threads N 117020 e 117040 Stubstepped drill HSS JO' TiAIN 14.61 22.37 14.90 22.87 15.99 23.76 16.59 25.74 19.66 30.99 25.44 38.71 32.77 49.90 h8 mm 3.4 4.5 5.5 6.6 9 11 13.5 mm 8.8 11.4 13.6 16.5 21 25.5 30 9 J B mm 20 24 28 31 40 47 54 I mm 52 58 66 70 84 95 107 mm 3.4 4 JS 5.5 6.6 9 11 13.5 f mm/rev 0.03 0.03 0.07 0.07 0.1 0.1 0.16 57
