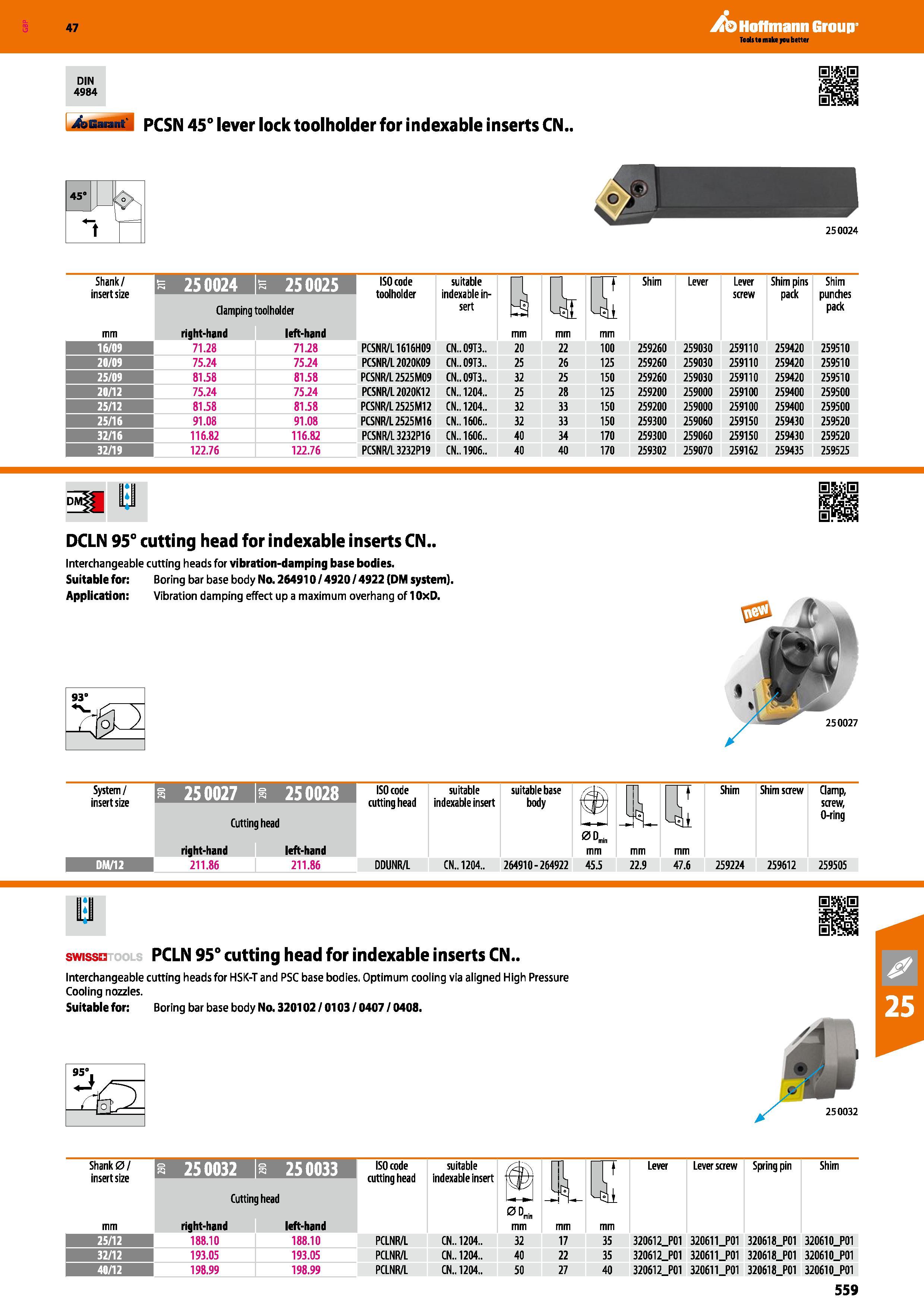

47 Hoffmann Group DIN 4984 4asat M PCSN 45° lever lock toolholder for indexable inserts CN. 45" 250024 Shank/ insert size Clamping toolholder 250025 ISO code toolholder suitable indexable insert Shim Lever Lever Shim pins Shim screw pack punches pack mm right-hand left-hand mm 16/09 71.28 71.28 PCSNR/L1616H09 CN..09T3.. 20 22 100 259260 259030 259110 259420 259510 20/09 75.24 75.24 PCSNR/L 2020K09 CN..09T3.. 25 26 125 259260 259030 259110 259420 259510 25/09 81.58 81.58 PCSNR/L 2525M09 CN..09T3.. 32 25 150 259260 259030 259110 259420 259510 20/12 75.24 75.24 PCSNR/L2020K12 CN.. 1204.. 25 28 125 259200 259000 259100 259400 259500 25/12 81.58 81.58 PCSNR/L 2525M12 CN.. 1204.. 32 33 150 259200 259000 259100 259400 259500 25/16 91.08 91.08 PCSNR/L 2525M16 CN.. 1606.. 32 33 150 259300 259060 259150 259430 259520 32/16 116.82 116.82 PCSNR/L3232P16 CN.. 1606.. 40 34 170 259300 259060 259150 259430 259520 32/19 122.76 122.76 PCSNR/L3232P19 CN.. 1906.. 40 40 170 259302 259070 259162 259435 259525 DCLN 95° cutting head for indexable inserts CN.. Interchangeable cutting heads for vibration-damping base bodies. Suitable for: Boring bar base body No. 264910 / 4920 / 4922 (DM system). Application: Vibration damping effect up a maximum overhang of 10xD. 250027 System / insert size Is 25 0027 250028 Cutting head right-hand left-hand 211.86 211.86 ISO code suitable suitable base cutting head indexable insert body Shim Shim screw Clamp, screw, 0-ring DDUNR/L CN.. 1204.. 0D . mm 264910 - 264922 45.5 mm 22.9 mm 47.6 259224 259612 259505 swissq PCLN 95° cutting head for indexable inserts CN.. Interchangeable cutting heads for HSK-T and PSC base bodies. Optimum cooling via aligned High Pressure Cooling nozzles. Suitable for: Boring bar base body No. 320102 / 0103 / 0407 / 0408. 95° liS Shank 0 / insert size 250032 s 250033 Cutting head ISO code suitable cutting head indexable insert Lever Lever screw Spring pin Shim mm right-hand left-hand 0D mm 25/12 188.10 188.10 PCLNR/L CN.. 1204.. 32 17 35 320612_P01 320611_P01 320618_P01 320610_P01 32/12 193.05 193.05 PCLNR/L CN.. 1204.. 40 22 35 320612_P01 320611_P01 320618_P01 320610_P01 40/12 198.99 198.99 PCLNR/L CN.. 1204.. 50 27 40 320612_P01 320611_P01 320618_P01 320610_P01 559
